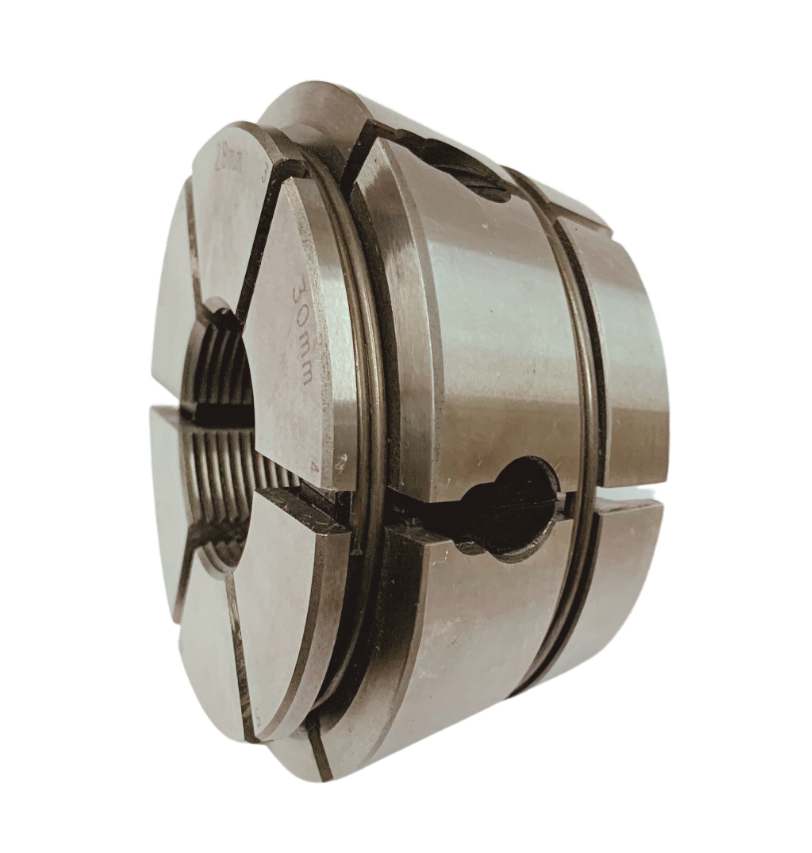

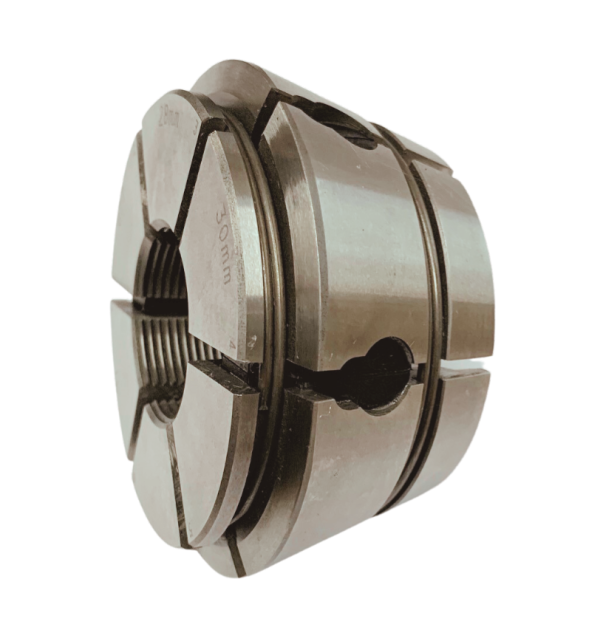

D677 Varibore Round Collet

Collet for 1st Operation Work

Key Features

  • 2mm Range per Collets
  • Sizes Up To 62mm Capacity
  • Spiral Serration as Standard, Other Finishes Available
  • Special Profiles Available

Description

D677 Varibore round collets are to suit 60mm capacity collet chucks. Also known as M677, these collets have a 2mm range. Supplied spiral serration as standard we can supply with alternate finishes and in special profiles.

D677 suit the following collet chucks:

Klamp CRL60

Klamp QCRL60

Crawford CDC60

Crawford CDC-60-S

Crawford QCD-60

Estimated delivery: Next Day (subject to availability)

Dimensions

# Part No Size (mm) Bore Price
1 D677-R06 4-6mm Spiral Serration n/a
1 D677-R08 6-8mm Spiral Serration n/a
1 D677-R10 8-10mm Spiral Serration £125.00
1 D677-R12 10-12mm Spiral Serration £125.00
1 D677-R14 12-14mm Spiral Serration £125.00
1 D677-R16 14-16mm Spiral Serration £125.00
1 D677-R18 16-18mm Spiral Serration £125.00
1 D677-R20 18-20mm Spiral Serration £125.00
1 D677-R22 20-22mm Spiral Serration £125.00
1 D677-R24 22-24mm Spiral Serration £125.00
1 D677-R26 24-26mm Spiral Serration £125.00
1 D677-R28 26-28mm Spiral Serration £125.00
1 D677-R30 28-30mm Spiral Serration £125.00
1 D677-R32 30-32mm Spiral Serration £125.00
1 D677-R34 32-34mm Spiral Serration £125.00
1 D677-R36 34-36mm Spiral Serration £125.00
1 D677-R38 36-38mm Spiral Serration £125.00
1 D677-R40 38-40mm Spiral Serration £125.00
1 D677-R42 40-42mm Spiral Serration £125.00
1 D677-R44 42-44mm Spiral Serration £125.00
1 D677-R46 44-46mm Spiral Serration £125.00
1 D677-R48 46-48mm Spiral Serration £125.00
1 D677-R50 48-50mm Spiral Serration £125.00
1 D677-R52 50-52mm Spiral Serration £125.00
1 D677-R54 52-54mm Spiral Serration £125.00
1 D677-R56 54-56mm Spiral Serration £125.00
1 D677-R58 56-58mm Spiral Serration £125.00
1 D677-R60 58-60mm Spiral Serration £125.00
1 D677-R62 60-62mm Spiral Serration £125.00
