CK(R) Series

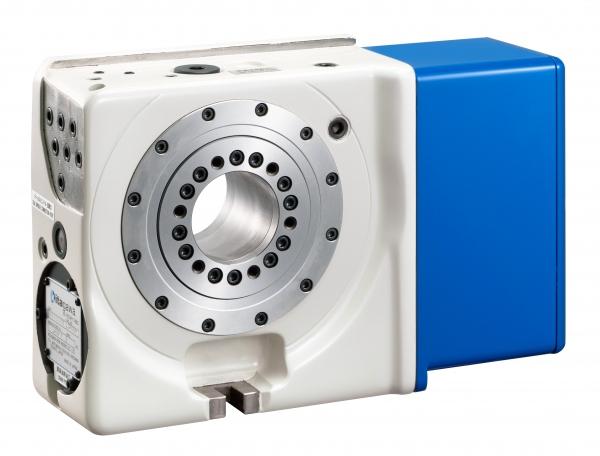

Ultra Compact 4th Axis Rotary Table
Key Features
- Ultra Compact Rotary Table
- No table face for direct connection to trunnion setups
- High speed and accuracy
- Rotary joint as an option *R
Description
Kitagawa CK series is an Ultra compact body for small footprint machines, trunnions can be directly mounted to table spindle keeping overall setups very compact. Available with all motor types in right- or left-hand configurations to suit a variety of machine models. Price excludes motor and interface cables. The CKR comes with rotary joint to suit hydraulics or pneumatics. RAV specification comes with an external controller that functions off an M-Code, used for machines that do not have 4th axis preparation.
Estimated delivery: On Request
Dimensions
| # | Part No | Table Dia. (mm) | Centre Bore (mm) | Centre Height (mm) | Clamping Torque (Nm) | Allowable Inertia (kgm²) | Repeatability (sec) | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | CK160 | 114 | 65 | 140 | 340 | 0.51 | 4 | £11,352.00 | |||
| 2 | CKR160 | 114 | n/a | 140 | 340 | 0.51 | 4 | £14,471.00 | |||
| 3 | CK200 | 130 | 65 | 150 | 400 | 1 | 4 | £ Price on application | n/a | ||
| 4 | CKR200 | 130 | n/a | 150 | 400 | 1 | 4 | £ Price on application | n/a | ||
| 5 | CK160RAV00 | 114 | 65 | 140 | 340 | 0.51 | 4 | £16,526.00 | |||
| 6 | CKR160RAV00 | 114 | n/a | 140 | 340 | 0.51 | 4 | £ Price on application | n/a | ||
| 7 | CK200RAV00 | 130 | 65 | 150 | 400 | 1 | 4 | £ Price on application | n/a | ||
| 8 | CKR200RAV00 | 130 | n/a | 150 | 400 | 1 | 4 | £ Price on application | n/a |
