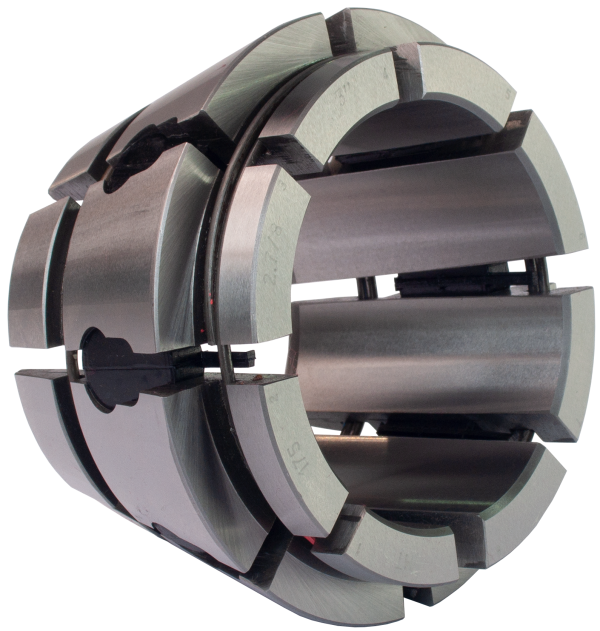

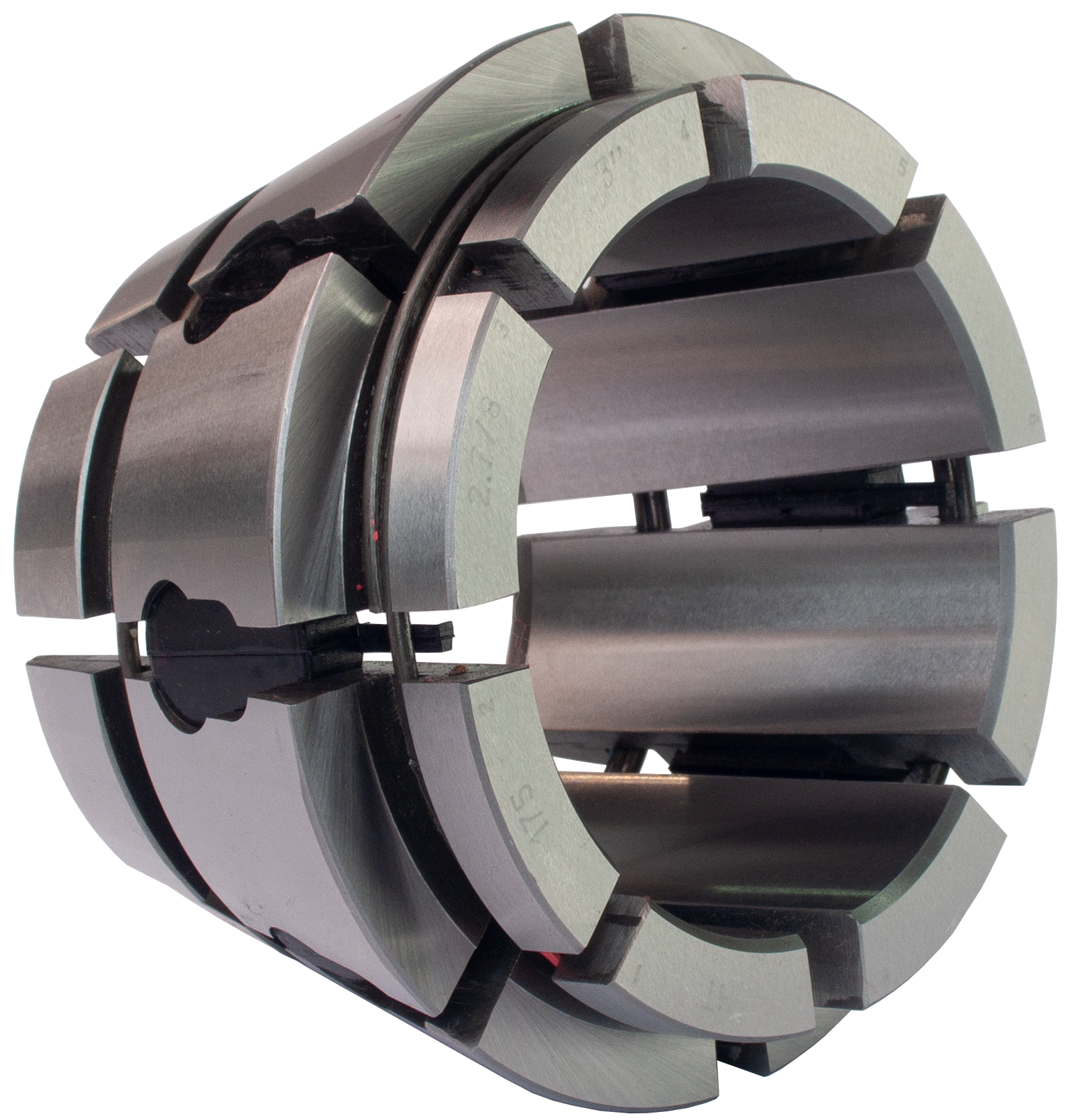

D120 Varibore Round Collet
D Type Collet for 1st Operation Work
Key Features
- 1/8" Range per Collets
- Sizes Up To 53.97mm Across Flats
- Smooth Bore as Standard, Other Finishes Available
- Special Profiles Available
Description
D120 Varibore round collets are to suit 54mm capacity collet chucks. Also known as V120, these collets have a 3.175mm range. Supplied smooth as standard we can supply with alternate finishes and in special profiles. D120 suit the following collet chucks: Klamp CRL54 Klamp CRS54 Klamp QCRL54 Crawford CDC54 Crawford CDC-54-S Crawford QC-54
Estimated delivery: Next Day (subject to availability)
Dimensions
| # | Part No | Range (mm) | Range (inch) | Finish | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | D120R-D01 | 1.58-4.76 | 1/16 - 3/16" | Smooth | £219.86 | ||
| 1 | D120R-D02 | 3.17 - 6.35 | 1/8 - 1/4" | Smooth | £219.86 | ||
| 1 | D120R-D03 | 6.35 - 9.52 | 1/4 - 3/8" | Smooth | £157.73 | ||
| 1 | D120R-D04 | 9.52 - 12.7 | 3/8 - 1/2" | Smooth | £157.73 | ||
| 1 | D120R-D05 | 12.7 - 15.87 | 1/2 - 5/8" | Smooth | £157.73 | ||
| 1 | D120R-D06 | 15.87 - 19.05 | 5/8 - 3/4" | Smooth | £157.73 | ||
| 1 | D120R-D07 | 19.05 - 22.22 | 3/4 - 7/8" | Smooth | £157.73 | ||
| 1 | D120R-D08 | 22.22 - 25.4 | 7/8 - 1" | Smooth | £157.73 | ||
| 1 | D120R-D09 | 25.4 - 28.57 | 1 - 1 1/8" | Smooth | £157.73 | ||
| 1 | D120R-D10 | 28.57 - 31.75 | 1 1/8 - 1 1/4" | Smooth | £157.73 | ||
| 1 | D120R-D11 | 31.75 - 34.92 | 1 1/4 - 1 3/8" | Smooth | £157.73 | ||
| 1 | D120R-D12 | 34.92 - 38.1 | 1 3/8 - 1 1/2" | Smooth | £157.73 | ||
| 1 | D120R-D13 | 38.1 - 41.27 | 1 1/2 - 1 5/8" | Smooth | £157.73 | ||
| 1 | D120R-D14 | 41.27 - 44.45 | 1 5/8 - 1 3/4" | Smooth | £157.73 | ||
| 1 | D120R-D15 | 44.45 - 47.62 | 1 3/4 - 1 7/8" | Smooth | £157.73 | ||
| 1 | D120R-D16 | 47.62 - 50.8 | 1 7/8 - 2" | Smooth | £157.73 | ||
| 1 | D120R-D17 | 50.8-53.97 | 2 - 2 1/8" | Smooth | £157.73 |
