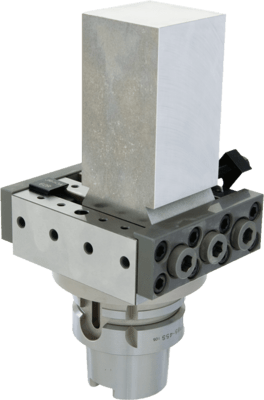

DBK Dovetail Workholder

Workholder for Swift Klamp

Key Features

  • Uses the HSK-A type, time-proven tool holder shank to connect the head and the work-piece holder.
  • Off-line setup in advance allows quick work-piece changing, minimizing machine downtime.
  • Excellent workpiece accessibility
  • The dovetail clamping work-holder with the HSK head works with heavy-duty milling.

Description

All Swift Klamp Dovetail work holders are attached to the workpiece usinga simple dovetail. Setup is quick, easy and dovetail work holders only require the minimum of material to hold the workpiece. That means less waste, easy preparation, and no distortion to the workpiece.Dovetail machining of the work-piece clamping area using an angular cutter is required prior to machining

Estimated delivery: 5-7 Working Days (subject to availability)

Dimensions

# Part No HSK Type Dovetail Range (mm) Dimension of Holder (mm) Height of Unit (mm) Price
1 DBK63-90 HSK-A63 12-73 110X110 85 £1,655.00
