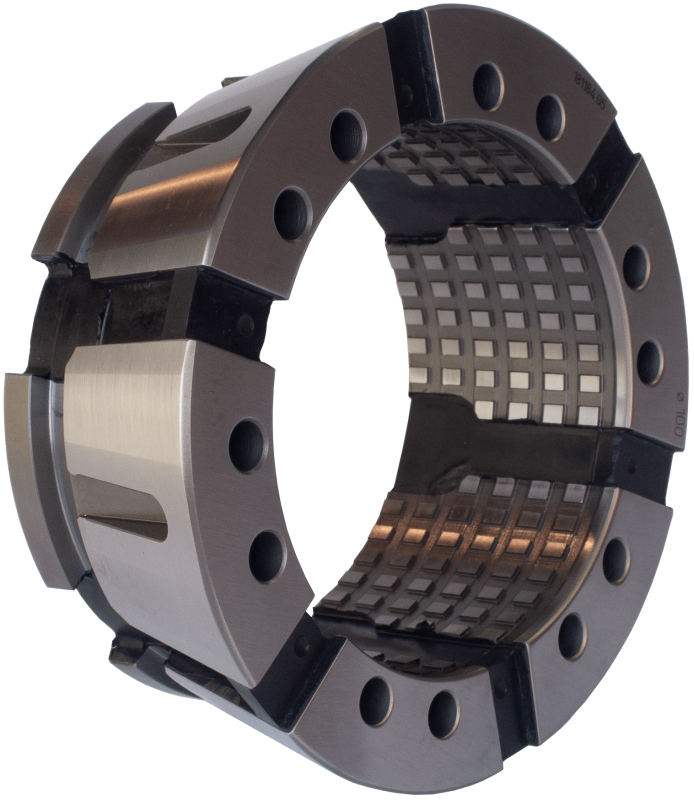

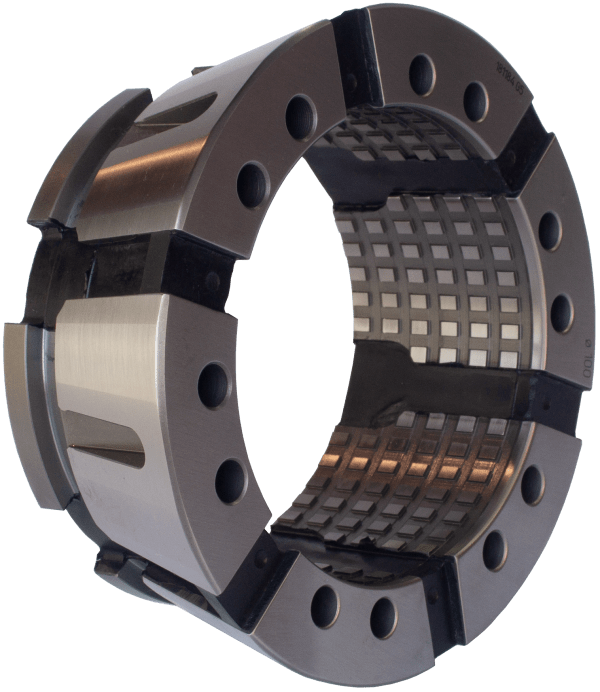

DC100 Round Serrated Collet

100mm Capacity Quick Change Collet

Key Features

  • Round, Hexagon, Square or Emergency types available
  • Available in Smooth or Serrated
  • Clamping tolerance of +/- 0.5mm
  • Counter boring and special profile shapes are available upon request

Description

DC Varibore Collets have the same accuracy specification as spring collets whilst maintaining a gripping range of +/- 0.5mm. Supplied with either smooth or serrated gripping surface. Serrated collets are ideal for aggressive first operation gripping of rough bar work. Vulcanized rubber between the hardened steel collet segments provides excellent protection against coolant and chip ingress. Counter boring and special profile shapes are available upon request.

Estimated delivery: 5-7 Working Days (subject to availability)

Dimensions

# Part No Type Range (mm) Price
1 DC100-R16 Serrated 15.5-16.5 £ Price on application n/a
1 DC100-R17 Serrated 16.5-17.5 £ Price on application n/a
1 DC100-R18 Serrated 17.5-18.5 £ Price on application n/a
1 DC100-R19 Serrated 18.5-19.5 £ Price on application n/a
1 DC100-R20 Serrated 19.5-20.5 £ Price on application n/a
1 DC100-R21 Serrated 20.5-21.5 £ Price on application n/a
1 DC100-R22 Serrated 21.5-22.5 £ Price on application n/a
1 DC100-R23 Serrated 22.5-23.5 £ Price on application n/a
1 DC100-R24 Serrated 23.5-24.5 £ Price on application n/a
1 DC100-R25 Serrated 24.5-25.5 £ Price on application n/a
1 DC100-R26 Serrated 25.5-26.5 £ Price on application n/a
1 DC100-R27 Serrated 26.5-27.5 £ Price on application n/a
1 DC100-R28 Serrated 27.5-28.5 £ Price on application n/a
1 DC100-R29 Serrated 28.5-29.5 £ Price on application n/a
1 DC100-R30 Serrated 29.5-30.5 £ Price on application n/a
1 DC100-R31 Serrated 30.5-31.5 £ Price on application n/a
1 DC100-R32 Serrated 31.5-32.5 £ Price on application n/a
1 DC100-R33 Serrated 32.5-33.5 £ Price on application n/a
1 DC100-R34 Serrated 33.5-34.5 £ Price on application n/a
1 DC100-R35 Serrated 34.5-35.5 £ Price on application n/a
1 DC100-R36 Serrated 35.5-36.5 £ Price on application n/a
1 DC100-R37 Serrated 36.5-37.5 £ Price on application n/a
1 DC100-R38 Serrated 37.5-38.5 £ Price on application n/a
1 DC100-R39 Serrated 38.5-39.5 £ Price on application n/a
1 DC100-R40 Serrated 39.5-40.5 £ Price on application n/a
1 DC100-R41 Serrated 40.5-41.5 £ Price on application n/a
1 DC100-R42 Serrated 41.5-42.5 £ Price on application n/a
1 DC100-R43 Serrated 42.5-43.5 £ Price on application n/a
1 DC100-R44 Serrated 43.5-44.5 £ Price on application n/a
1 DC100-R45 Serrated 44.5-45.5 £ Price on application n/a
1 DC100-R46 Serrated 45.5-46.5 £ Price on application n/a
1 DC100-R47 Serrated 46.5-47.5 £ Price on application n/a
1 DC100-R48 Serrated 47.5-48.5 £ Price on application n/a
1 DC100-R49 Serrated 48.5-49.5 £ Price on application n/a
1 DC100-R50 Serrated 49.5-50.5 £ Price on application n/a
1 DC100-R51 Serrated 50.5-51.5 £ Price on application n/a
1 DC100-R52 Serrated 51.5-52.5 £ Price on application n/a
1 DC100-R53 Serrated 52.5-53.5 £ Price on application n/a
1 DC100-R54 Serrated 53.5-54.5 £ Price on application n/a
1 DC100-R55 Serrated 54.5-55.5 £ Price on application n/a
1 DC100-R56 Serrated 55.5-56.5 £ Price on application n/a
1 DC100-R57 Serrated 56.5-57.5 £ Price on application n/a
1 DC100-R58 Serrated 57.5-58.5 £ Price on application n/a
1 DC100-R59 Serrated 58.5-59.5 £ Price on application n/a
1 DC100-R60 Serrated 59.5-60.5 £468.00
1 DC100-R61 Serrated 60.5-61.5 £468.00
1 DC100-R62 Serrated 61.5-62.5 £468.00
1 DC100-R63 Serrated 62.5-63.5 £468.00
1 DC100-R64 Serrated 63.5-64.5 £468.00
1 DC100-R65 Serrated 64.5-65.5 £468.00
1 DC100-R66 Serrated 65.5-66.5 £468.00
1 DC100-R67 Serrated 66.5-67.5 £468.00
1 DC100-R68 Serrated 67.5-68.5 £468.00
1 DC100-R69 Serrated 68.5-69.5 £468.00
1 DC100-R70 Serrated 69.5-70.5 £468.00
1 DC100-R71 Serrated 70.5-71.5 £468.00
1 DC100-R72 Serrated 71.5-72.5 £468.00
1 DC100-R73 Serrated 72.5-73.5 £468.00
1 DC100-R74 Serrated 73.5-74.5 £468.00
1 DC100-R75 Serrated 74.5-75.5 £468.00
1 DC100-R76 Serrated 75.5-76.5 £468.00
1 DC100-R77 Serrated 76.5-77.5 £468.00
1 DC100-R78 Serrated 77.5-78.5 £468.00
1 DC100-R79 Serrated 78.5-79.5 £468.00
1 DC100-R80 Serrated 79.5-80.5 £468.00
1 DC100-R81 Serrated 80.5-81.5 £468.00
1 DC100-R82 Serrated 81.5-82.5 £468.00
1 DC100-R83 Serrated 82.5-83.5 £468.00
1 DC100-R84 Serrated 83.5-84.5 £468.00
1 DC100-R85 Serrated 84.5-85.5 £468.00
1 DC100-R86 Serrated 85.5-86.5 £468.00
1 DC100-R87 Serrated 86.5-87.5 £468.00
1 DC100-R88 Serrated 87.5-88.5 £468.00
1 DC100-R89 Serrated 88.5-89.5 £468.00
1 DC100-R90 Serrated 89.5-90.5 £468.00
1 DC100-R91 Serrated 90.5-91.5 £468.00
1 DC100-R92 Serrated 91.5-92.5 £468.00
1 DC100-R93 Serrated 92.5-93.5 £468.00
1 DC100-R94 Serrated 93.5-94.5 £468.00
1 DC100-R95 Serrated 94.5-95.5 £468.00
1 DC100-R96 Serrated 95.5-96.5 £468.00
1 DC100-R97 Serrated 96.5-97.5 £468.00
1 DC100-R98 Serrated 97.5-98.5 £468.00
1 DC100-R99 Serrated 98.5-99.5 £468.00
1 DC100-R100 Serrated 99.5-100.5 £468.00
