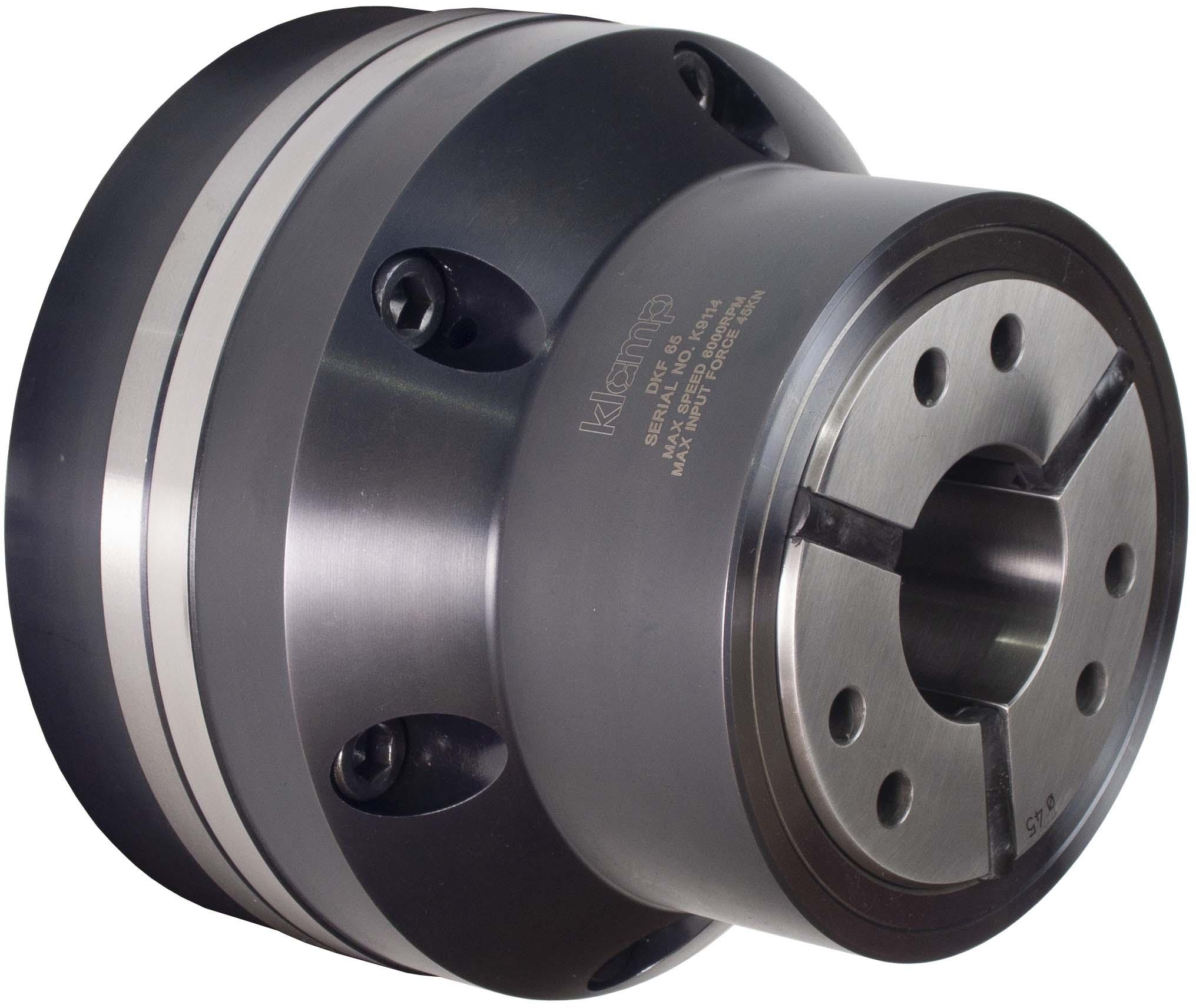

Dead Length Collet Chuck 52mm Capacity

For use with Collet Change Gun

Key Features

  • Collets have a +/- 0.5mm range to handle rough bar
  • Small nose diameter to provide excellent tool clearance.
  • Case hardened, optimising the rigidity, strength and durability.
  • Changing Collets usiong a gun reduces the change over time to seconds.

Description

Designed with a fixed length actuation system that ensures the collet is held stationary. Allowing the collet chuck to be used in bar feeding operations and highly accurate second operations. Klamp DHF collet chucks are suitable for collets which have a +/-0.5mm gripping range.

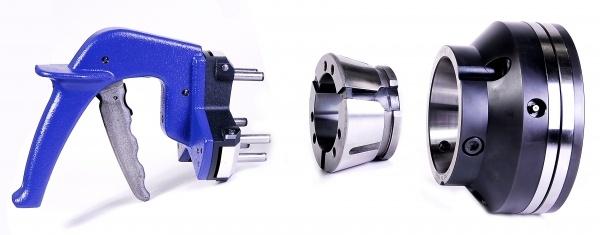

Changing collets via a quick change gun reduces the change over time to seconds

Estimated delivery: 3-5 Working Days (subject to availability)

Dimensions

# Part No Spindle Mount Capacity (mm) Length (mm) Price
1 DKF52 140mm 52 132 £1,664.00
1 DKF52A5 A2-5 52 137 £1,605.00
1 DKF52A6 A2-6 52 137 £1,596.00
