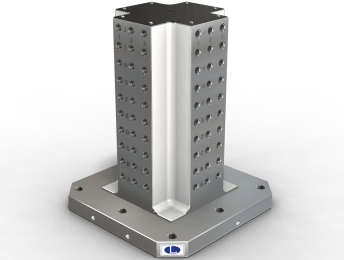

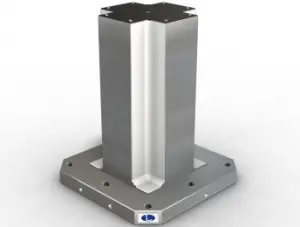

Gridded Cross Tooling Column
50mm Grid Cast Iron X-Shaped Tombstone
Key Features
- Allignment Busing and Thread Hole for Quick Accurate Set-ups
- Ground Flat and Parallel
- Threaded Holes for Side-Location
- X-Shape allows for more side Clearance for Machining
Description
Cast iron gridded cross profile Tooling Column with mounting holes. Grid pattern with allignment bushes and threaded inserts for ease of set-up. Ground flat parallel and perpendicular for accuracy. Holes for side location to allow precise loading and setting up of the tombstone.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Size of Pallet (mm)(B) | Height (mm)(A) | Width (mm) ( C ) | Thickness (mm) (H) | Thread | Pitch of Holes (mm)(K) | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | BP30-400400-0500-12 | 400 | 500 | 250 | 125 | M12 | 50 | £3,332.00 | ||
| 1 | BP30-400400-0650-12 | 400 | 650 | 250 | 125 | M12 | 50 | £3,949.17 | ||
| 1 | BP30-500500-0600-12 | 500 | 600 | 300 | 150 | M12 | 50 | £4,706.34 | ||
| 1 | BP30-500500-0750-12 | 500 | 750 | 300 | 150 | M12 | 50 | £6,255.67 | ||
| 1 | BP30-630630-0700-12 | 630 | 700 | 350 | 200 | M12 | 50 | £7,486.50 | ||
| 1 | BP30-630630-0850-12 | 630 | 850 | 350 | 200 | M12 | 50 | £8,622.84 | ||
| 1 | BP30-800800-0800-12 | 800 | 800 | 500 | 300 | M12 | 50 | £11,462.50 | ||
| 1 | BP30-800800-1000-12 | 800 | 1000 | 500 | 300 | M12 | 50 | £14,676.67 | ||
| 1 | BP30-400400-0500-16 | 400 | 500 | 250 | 125 | M16 | 50 | £3,409.00 | ||
| 1 | BP30-400400-0650-16 | 400 | 650 | 250 | 125 | M16 | 50 | £4,131.17 | ||
| 1 | BP30-500500-0600-16 | 500 | 600 | 300 | 150 | M16 | 50 | £4,900.00 | ||
| 1 | BP30-500500-0750-16 | 500 | 750 | 300 | 150 | M16 | 50 | £6,332.67 | ||
| 1 | BP30-630630-0700-16 | 630 | 700 | 350 | 200 | M16 | 50 | £7,590.34 | ||
| 1 | BP30-630630-0850-16 | 630 | 850 | 350 | 200 | M16 | 50 | £8,751.17 | ||
| 1 | BP30-800800-0800-16 | 800 | 800 | 500 | 300 | M16 | 50 | £11,656.17 | ||
| 1 | BP30-800800-1000-16 | 800 | 1000 | 500 | 300 | M16 | 50 | £14,973.00 |
