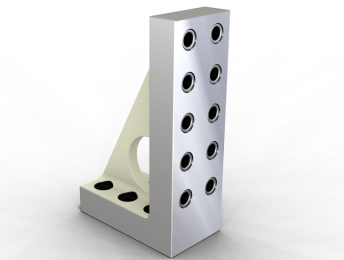

Gridded Narrow Angle Plate
50mm Grid Anlge Plate
Key Features
- Allignment Busing and Thread Hole for Quick Accurate Set-ups
- Ground Flat and Parallel
Description
Cast iron gridded angle plate .Grid pattern with allignment bushes and threaded inserts for ease of set-up. Ground flat parallel and perpendicular for accuracy. To suit verticle or horizontal machining centre applications.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Height (mm)(A) | Width (mm) (B) | Depth (mm)(C) | Thread Size | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | BP24-180100-0300-12 | 300 | 180 | 100 | M12 | £499.34 | ||
| 1 | BP24-230100-0400-12 | 400 | 230 | 100 | M12 | £619.50 | ||
| 1 | BP24-280100-0500-12 | 500 | 280 | 100 | M12 | £662.67 | ||
| 1 | BP24-180100-0300-16 | 300 | 180 | 100 | M16 | £509.84 | ||
| 1 | BP24-230100-0400-16 | 400 | 230 | 100 | M16 | £638.17 | ||
| 1 | BP24-280100-0500-16 | 500 | 280 | 100 | M16 | £707.00 |
