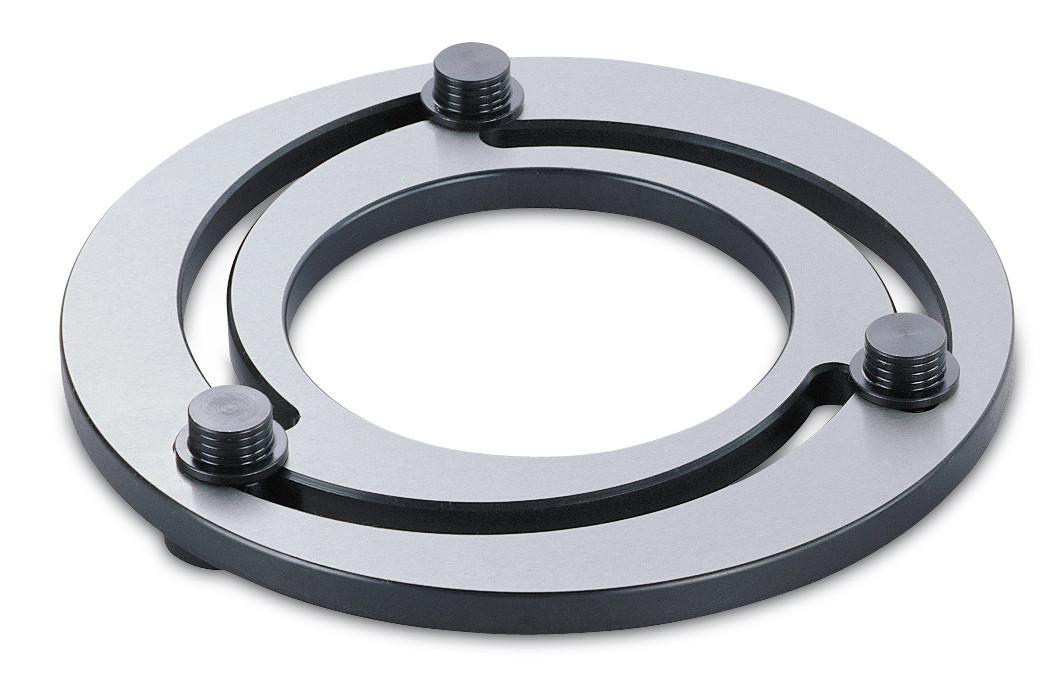

Jaw Boring Rings
For the Machining of Soft Jaws
Key Features
- Use of a Boring Ring allows for Precision Machining of Soft Jaws
- Adjustability to Allow for Jaws in Different Positions
- Boring of Jaws allows for better Accuracy and T.I.R
Description

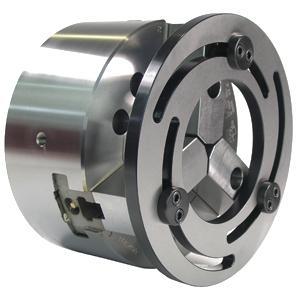

Jaw Boring Rings, Made out of 708M40 alloy steel, borings rings are key for the machining out of soft jaws. This boring ring has easy adjustment to allow for jaws in different positions.
✦ For Soft Jaw Machining
✦ For Hard Jaw Grinding
✦ Internal or External Clamping
✦ Large Diameter Range
✦ Fully adjustable
✦ Minimum Setting time
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Chuck Size | Bore (mm) | Size of Studs (mm) | Stud Positions (mm) | Price | ||
|---|---|---|---|---|---|---|---|---|
| 1 | KJB05 | 5" | 60 | 13 | 113-129 | £187.00 | ||
| 1 | KJB06 | 6" | 80 | 16.5 | 136-156 | £200.00 | ||
| 1 | KJB08 | 8" | 115 | 18.5 | 182-203 | £224.00 | ||
| 1 | KJB10 | 10" | 150 | 18.5 | 218-239 | £243.00 | ||
| 1 | KJB12 | 12" | 188 | 22.5 | 266-295 | £373.00 | ||
| 1 | KJB15 | 15" | 230 | 31 | 328-357 | £710.00 |
