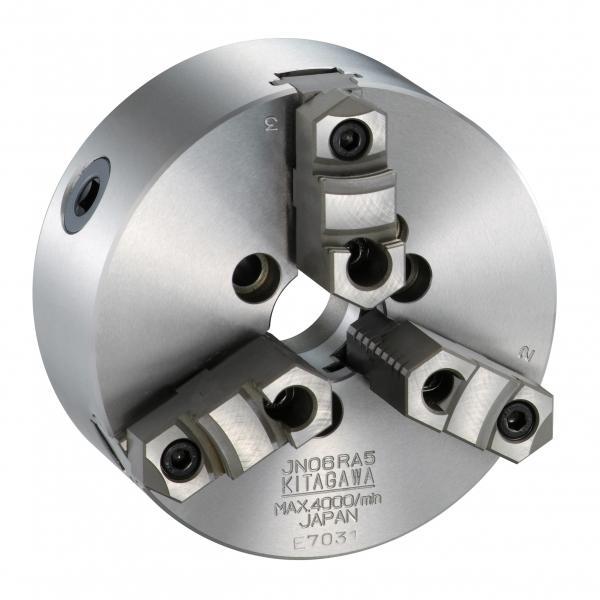

JN..RA Series
Standard Scroll Chuck with Two Piece Jaw and Integral Spindle Mount
Key Features
- Cross guide reduces runout and distortion
- High Rigidity, durability and rotational speed
- Two piece jaws for quicker and easier jaw change over
- Direct mount to short taper so adapter isn't needed
Description
3 Jaw Scroll Chuck featuring steel body construction to increase rigidity and improved durability. The JN-RA series have short tapers built-in, therefor adapters are not needed. Chucks are supplied with standard hard jaws with soft jaws available if needed.
Estimated delivery: 7-10 Working Days (subject to availability)
Dimensions
| # | Part No | Spindle Nose | Chuck Bore (mm) | Max. Grip Force (kN) | Max. Speed (rpm) | Matching Hard Jaws | Matching Soft Jaws | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | JN06RA500 | A1-5 | 40 | 31 | 4000 | HBS06C | SBS06 | £1,249.00 | ||
| 1 | JN07RA5 | A1-5 | 40 | 31 | 3500 | HBS07C | SBS07 | £1,126.00 | ||
| 1 | JN08RA6 | A1-6 | 59 | 31 | 3200 | HBS07C | SBS07 | £1,285.00 | ||
| 1 | JN09RA6 | A1-6 | 59 | 37 | 2900 | HBS09C | SBS09 | £1,178.00 | ||
| 1 | JN10RA6 | A1-6 | 59 | 46 | 2500 | HBS10C | SBS10 | £1,385.00 | ||
| 1 | JN10RA8 | A1-8 | 78 | 46 | 2500 | HBS10C | SBS10 | £1,385.00 | ||
| 1 | JN12RA6 | A1-6 | 96 | 55 | 2200 | HBS12C | SBS12 | £2,032.00 | ||
| 1 | JN12RA8 | A1-8 | 78 | 55 | 2200 | HBS12C | SBS12 | £2,032.00 |
