Leave Flexible Vice (SVF-AB)
Main Body (For use on A,B & C Series)
Key Features
- Maximise your machining envelope
- High precision and high clamping force
- Wide range of accessories for flexibility
- Manufactured from tool steel treated to HRC 55 and ground
Description
Main bodies for all SVF series flexible vices. These bodies include precision location underneath with counterbored mounting holes and are manufactured from tool steel treated to HRC 55 and fully ground. They have an integral t-slot and serrated top surface to accept fixed jaws, moving jaws and other accessories.
Estimated delivery: On Request

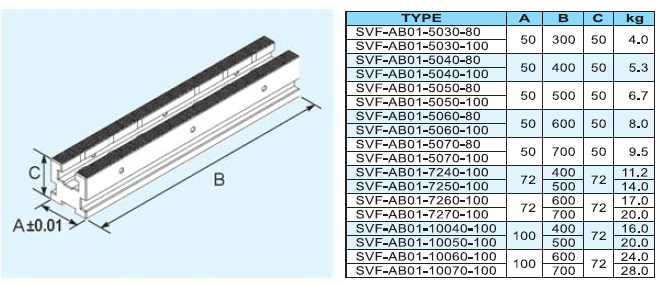

Dimensions
| # | Part No | Length (mm) | Width (mm) | Height (mm) | Series | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | SVF-AB01-5013-100 | 130 | 50 | 50 | C Series only | £264.84 | |||
| 2 | SVF-AB01-5030-80 | 300 | 50 | 50 | A and B Series | £529.67 | |||
| 3 | SVF-AB01-5030-100 | 300 | 50 | 50 | A and B Series | £529.67 | |||
| 4 | SVF-AB01-5040-80 | 400 | 50 | 50 | A and B Series | £611.34 | |||
| 5 | SVF-AB01-5040-100 | 400 | 50 | 50 | A and B Series | £611.34 | |||
| 6 | SVF-AB01-5050-80 | 500 | 50 | 50 | A and B Series | £752.50 | |||
| 7 | SVF-AB01-5050-100 | 500 | 50 | 50 | A and B Series | £752.50 | |||
| 8 | SVF-AB01-5060-80 | 600 | 50 | 50 | A and B Series | £852.84 | |||
| 9 | SVF-AB01-5060-100 | 600 | 50 | 50 | A and B Series | £852.84 | |||
| 10 | SVF-AB01-5070-80 | 700 | 50 | 50 | A and B Series | £975.34 | |||
| 11 | SVF-AB01-5070-100 | 700 | 50 | 50 | A and B Series | £975.34 | |||
| 12 | SVF-AB01-7214-100 | 140 | 72 | 72 | C Series only | £347.67 | |||
| 13 | SVF-AB01-7240-100 | 400 | 72 | 72 | A and B Series | £817.84 | |||
| 14 | SVF-AB01-7250-100 | 500 | 72 | 72 | A and B Series | £1,043.00 | |||
| 15 | SVF-AB01-7260-100 | 600 | 72 | 72 | A and B Series | £1,142.17 | |||
| 16 | SVF-AB01-7270-100 | 700 | 72 | 72 | A and B Series | £1,326.50 | |||
| 17 | SVF-AB01-10015-100 | 148 | 100 | 72 | C Series only | £500.50 | |||
| 18 | SVF-AB01-10040-100 | 400 | 100 | 72 | A and B Series | £1,316.00 | |||
| 19 | SVF-AB01-10050-100 | 500 | 100 | 72 | A and B Series | £1,570.34 | |||
| 20 | SVF-AB01-10060-100 | 600 | 100 | 72 | A and B Series | £1,708.00 | |||
| 21 | SVF-AB01-10070-100 | 700 | 100 | 72 | A and B Series | £1,892.34 |
