Leave Flexible Vice (SVF-B)

Two Piece Clamping

Key Features

  • Maximise your machining envelope
  • High precision and high clamping force
  • Wide range of accessories for flexibility
  • Manufactured from tool steel treated to HRC 55 and ground

Description

The SVF-B range of flexible vices from Leave are an effortless way of clamping multiple workpieces in your milling machine. Simply position the moving and fixed jaws to suit the size of the workpieces and clamp as many parts in your workspace as you can fit. The SVF-B range of vices use bi-directional clamping wedges so one clamping screw will secure two workpieces. This makes for shorter loading times in vertical machines but for horizontal machines please see the SVF-A range. The SVF series of vices are all manufactured from tool steel treated to HRC 55 and fully ground. A range of jaws, parallels, workstops and other accessories is available to maximise the flexibility of this system and allow for regular and irregular shaped workpieces. All SVF-B vices come equipped to clamp 3 or 4 parts but additional jaws can be purchased to clamp additional workpieces.

Estimated delivery: On Request

Dimensions

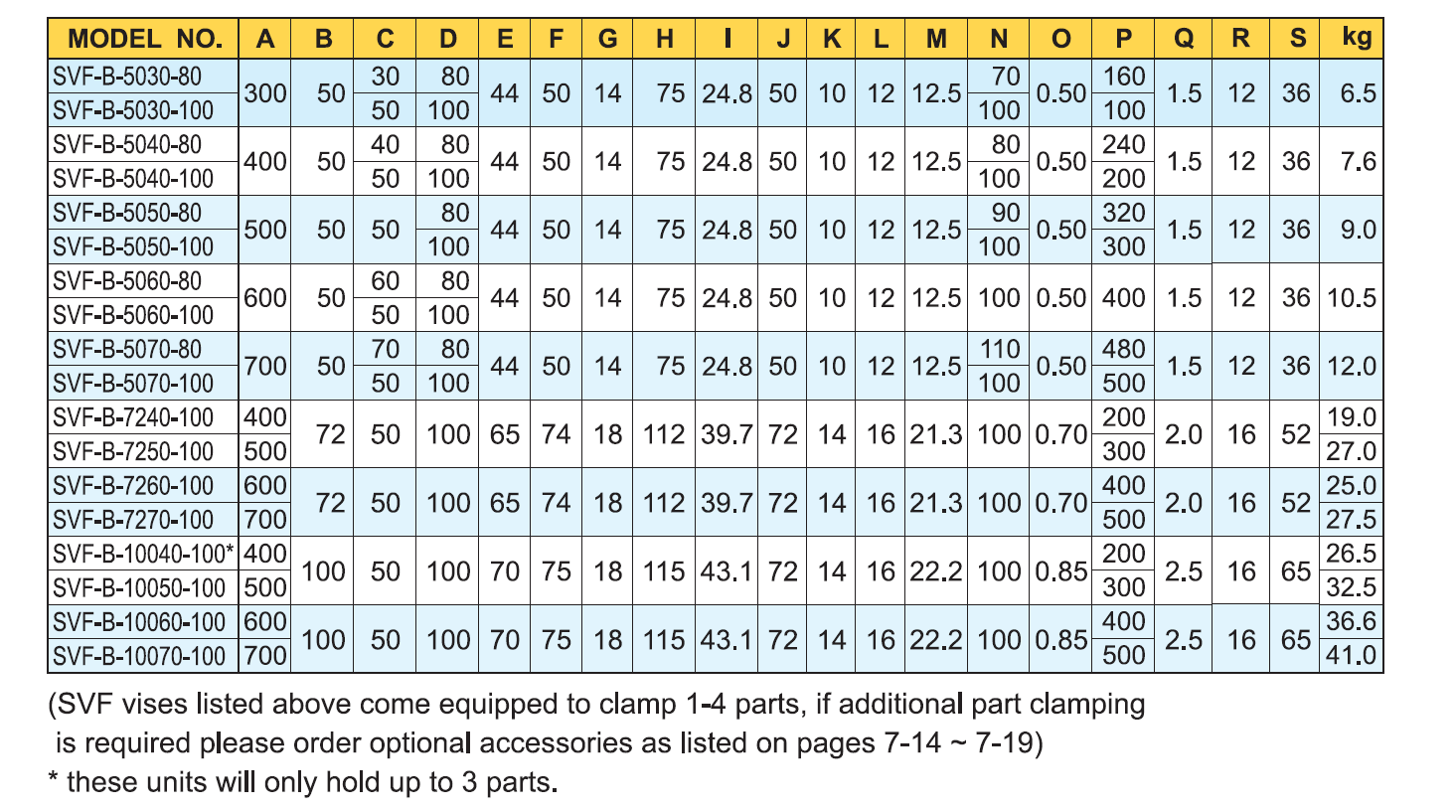

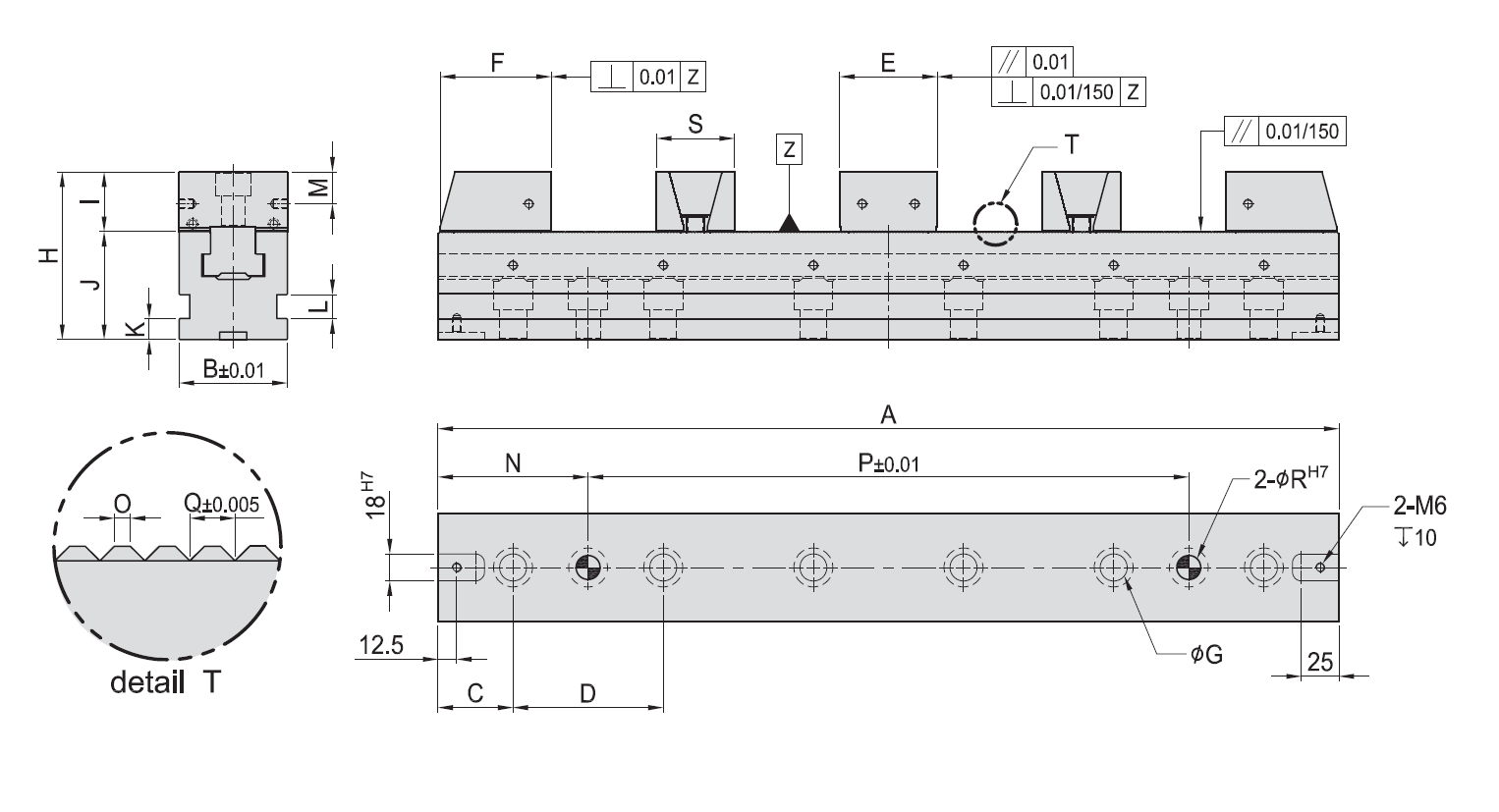

# Part No Length (mm) Width (mm) Height of Clamp (mm) Clamp Force (kN) Equipped to Hold (pcs) Drawings Price
1 SVF-B-5030-80 300 50 24.8 10 4 £1,081.00
2 SVF-B-5030-100 300 50 24.8 10 4 £1,081.00
3 SVF-B-5040-80 400 50 24.8 10 4 £1,174.00
4 SVF-B-5040-100 400 50 24.8 10 4 £1,174.00
5 SVF-B-5050-80 500 50 24.8 10 4 £1,305.00
6 SVF-B-5050-100 500 50 24.8 10 4 £1,305.00
7 SVF-B-5060-80 600 50 24.8 10 4 £1,403.00
8 SVF-B-5060-100 600 50 24.8 10 4 £1,403.00
9 SVF-B-5070-80 700 50 24.8 10 4 £1,456.00
10 SVF-B-5070-100 700 50 24.8 10 4 £1,456.00
11 SVF-B-7240-100 400 72 39.7 20 4 £1,668.00
12 SVF-B-7250-100 500 72 39.7 20 4 £1,833.00
13 SVF-B-7260-100 600 72 39.7 20 4 £1,967.00
14 SVF-B-7270-100 700 72 39.7 20 4 £2,139.00
15 SVF-B-10040-100 400 100 43.3 30 3 £2,422.00
16 SVF-B-10050-100 500 100 43.3 30 4 £2,585.00
17 SVF-B-10060-100 600 100 43.3 30 4 £2,722.00
18 SVF-B-10070-100 700 100 43.3 30 4 £2,895.00
