Loc-Down System
Key Features
- Cost effective simple Quick Change System
- Receiver furnished with diamond and taper pins and hardened liner bushings
- All hardware recessed
- Two turns of the Loc-Down® releases the pallet
Description

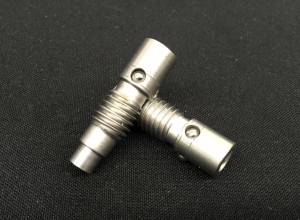

Cost effective simple Quick Change Receiver System allowing for the rapid change out and precise location of small fixture pallets. The receiver mounts on t-slot tables, tombstones, sub-plates and our Aluminum T-Slot Grid Plates. Special washers and mounting clamps are provided with the system. All hardware is recessed allowing the receiver to be skim cut to perfectly match the table and the receiver is furnished with diamond and taper pins and hardened liner bushings. Blank pallet is fastened to the receiver with our Loc-Down® System, two turns of the Loc-Down® releases the pallet. The Loc-Down® is not removed from the receiver.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Type | Description | Width (mm/inch) | Length (mm/inch) | Height (mm/inch) | Price | |
|---|---|---|---|---|---|---|---|---|
| 1 | 46600 | Metric | Quick Change Receiver with (4) M12x1.75 Loc-Downs® and Hardware | 378.5 | 378.5 | 25.4 | £ Price on application | |
| 1 | 11612 | Metric | Loc-Down® (M12x1.75) | £ Price on application | ||||
| 1 | 46500 | Imperial | Quick Change Receiver with (4) 1/2-13 Loc-Downs® and Hardware | 14.9 | 14.9 | 1 | £ Price on application | |
| 1 | 11500 | Imperial | Loc-Down® (1/2-13) | £ Price on application | ||||
| 1 | 46525 | Universal | Quick Change Blank Pallet with Locating and Loc-Down® Bushings Installed | 378.5mm / 14.9" | 378.5mm / 14.9" | 25.4mm / 1" | £ Price on application | |
| 1 | 11520 | Universal | Heavy Wall Loc-Down® Bushing | £ Price on application | ||||
| 1 | 45070 | Bushings for custom pallets (2/pk) 21-28 days lead time | £ Price on application |
