Machinable Uniforce Clamps
For Holding Two Parts
Key Features
- Easy to design and build fixtures
- Holds two parts with equilateral clamping action
- Ideal for clamping irreguar shaped work pieces
- Easily achive high workpiece density
Description

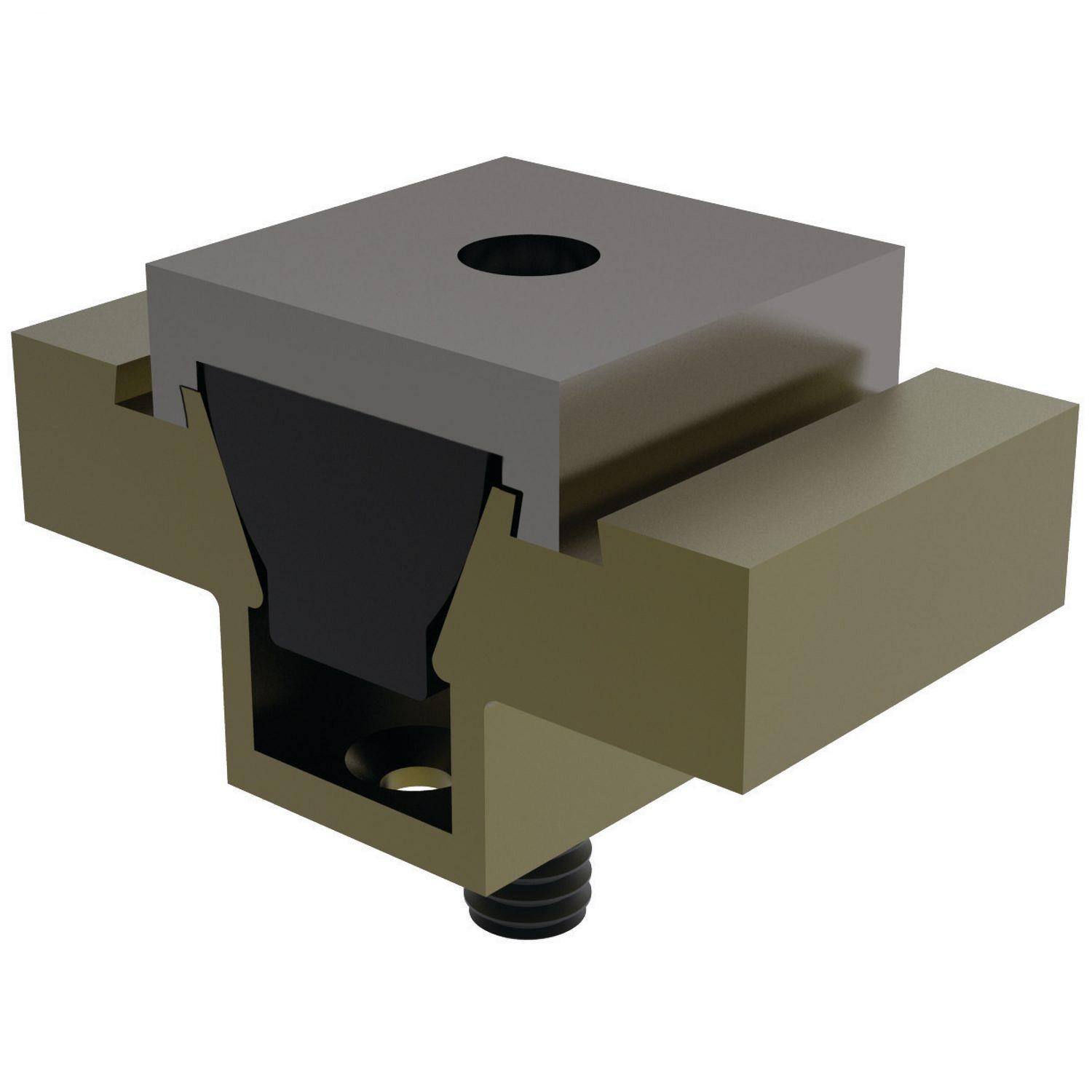

The compact Mitee-Bite Uniforce® clamp is available with extra material on the clamping jaws so it can be machined to conform to the shape of your workpiece, enabling you to fixture unusual applications easily. The specially designed steel wedge spreads the clamping force uniformly on both sides of the 7075-T6 aluminum channel. A unique locking plate properly expands the clamp while making it rigid for machining the jaws to your specifications. These clamps are available in metric and imperial versions, with or without locking plate (* denotes locking plates included)
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Type | Width (mm/inch) | Height (mm/inch) | Length (mm/inch) | Screw | Holding force (N/lbs) | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 80050 | Metric* | 28.6 | 12.7 | 15.7 | M4 | 2225 | £32.22 | ||
| 1 | 80075 | Metric* | 38.1 | 19.1 | 23.9 | M6 | 6675 | £33.80 | ||
| 1 | 80100 | Metric* | 50.8 | 25.4 | 31.8 | M8 | 8900 | £46.76 | ||
| 1 | 80150 | Metric* | 76.2 | 38.1 | 47.5 | M12 | 15575 | £129.31 | ||
| 1 | 80200 | Metric* | 101.6 | 50.8 | 63.5 | M16 | 26700 | £211.43 | ||
| 1 | 60050 | Imperial* | 1.125 | .50 | .62 | 8-32 | 500 | £ Price on application | n/a | |
| 1 | 60075 | Imperial* | 1.500 | .75 | .94 | 1/4-20 | 1 | 500 | £ Price on application | n/a | |
| 1 | 60100 | Imperial* | 2.000 | 1.00 | 1.25 | 5/16-18 | 2 | 000 | £ Price on application | n/a | |
| 1 | 60150 | Imperial* | 3.000 | 1.50 | 1.87 | 1/2-13 | 3 | 500 | £ Price on application | n/a | |
| 1 | 60200 | Imperial* | 4.000 | 2.00 | 2.50 | 5/8-11 | 6 | 000 | £ Price on application | n/a | |
| 1 | 80055 | Metric | 28.6 | 12.7 | 15.7 | M4 | 2225 | £ Price on application | n/a | |
| 1 | 80080 | Metric | 38.1 | 19.1 | 23.9 | M6 | 6675 | £ Price on application | n/a | |
| 1 | 80105 | Metric | 50.8 | 25.4 | 31.8 | M8 | 8900 | £ Price on application | n/a | |
| 1 | 80155 | Metric | 76.2 | 38.1 | 47.5 | M12 | 15575 | £ Price on application | n/a | |
| 1 | 80205 | Metric | 101.6 | 50.8 | 63.5 | M16 | 26700 | £ Price on application | n/a | |
| 1 | 60055 | Imperial | 1.125 | .50 | .62 | 8-32 | 500 | £ Price on application | n/a | |
| 1 | 60080 | Imperial | 1.500 | .75 | .94 | 1/4-20 | 1 | 500 | £ Price on application | n/a | |
| 1 | 60105 | Imperial | 2.000 | 1.00 | 1.25 | 5/16-18 | 2 | 000 | £ Price on application | n/a | |
| 1 | 60153 | Imperial | 3.000 | 1.50 | 1.87 | 1/2-13 | 3 | 500 | £ Price on application | n/a | |
| 1 | 60203 | Imperial | 4.000 | 2.00 | 2.50 | 5/8-11 | 6 | 000 | £ Price on application | n/a |
