Uniforce Clamps
For Holding Two Parts
Key Features
- Easy to design and build fixtures
- Holds two parts with equilateral clamping action
- Ideal for clamping flat or round work pieces
- Easily achive high workpiece density
Description

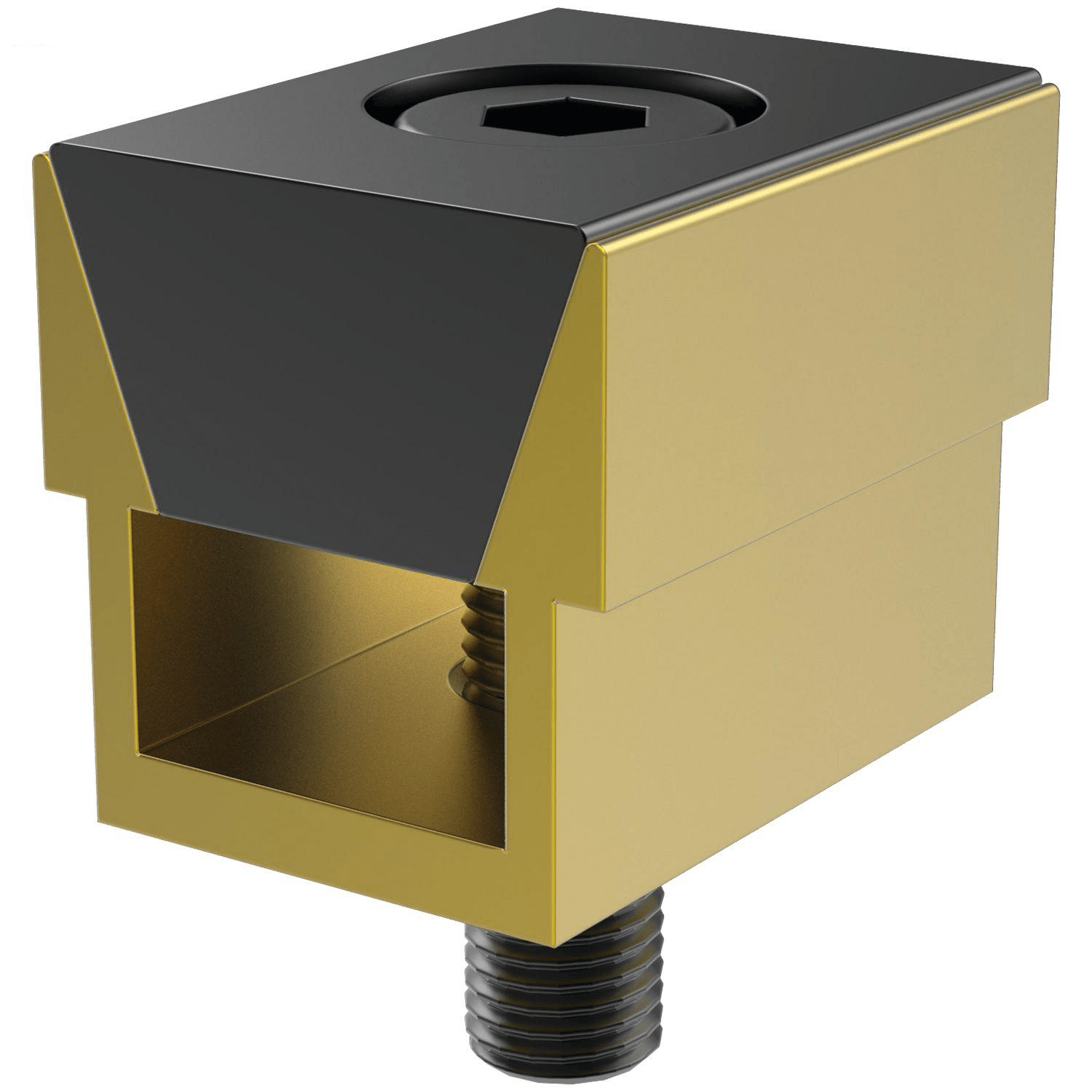

The compact, economical MITEE-BITE Uniforce® Clamp enables you to fixture more parts on the machine table. The specially designed steel wedge spreads the clamping force uniformly on both sides of the 7075-T6 aluminum channel. These small clamps are easy to incorporate into fixtures using simple tapped holes and slots. The ability to clamp 2 parts with 1 screw makes loading quick and easy. Standard Uniforce clamps are designed to hold regular shaped workpieces. For irregular shaped workpieces please see the machinable range of uniforce clamps.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Type | Width (mm/inch) | Height (mm/inch) | Length (mm/inch) | Screw | Holding force (N/lbs) | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 80250 | Metric | 6.1 | 6.4 | 8.1 | M2 | 880 | £94.09 | ||
| 1 | 80375 | Metric | 9.1 | 9.5 | 11.9 | M2.5 | 1350 | £94.09 | ||
| 1 | 80500 | Metric | 12.3 | 12.70 | 15.9 | M4 | 2225 | £88.11 | ||
| 1 | 80750 | Metric | 18.6 | 19.05 | 23.8 | M6 | 6675 | £89.53 | ||
| 1 | 81000 | Metric | 24.8 | 25.40 | 31.7 | M8 | 11125 | £86.11 | ||
| 1 | 81500 | Metric | 37.3 | 38.10 | 47.6 | M12 | 15575 | £147.98 | ||
| 1 | 82000 | Metric | 49.7 | 50.80 | 63.5 | M16 | 26700 | £225.40 | ||
| 1 | 60250 | Imperial | .240 | .250 | .320 | 2 – 56 | 200 lbs | £ Price on application | n/a | |
| 1 | 60375 | Imperial | .360 | .375 | .470 | 4 – 40 | 310 lbs | £ Price on application | n/a | |
| 1 | 60500 | Imperial | .485 | .500 | .625 | 8 – 32 | 500 lbs | £ Price on application | n/a | |
| 1 | 60750 | Imperial | .735 | .750 | .940 | 1/4 – 20 | 1500 lbs | £ Price on application | n/a | |
| 1 | 61000 | Imperial | .980 | 1.000 | 1.250 | 5/16 – 18 | 2500 lbs | £ Price on application | n/a | |
| 1 | 61500 | Imperial | 1.470 | 1.500 | 1.875 | 1/2 – 13 | 3500 lbs | £ Price on application | n/a | |
| 1 | 62000 | Imperial | 1.960 | 2.000 | 2.500 | 5/8 – 11 | 6000 lbs | £ Price on application | n/a |
