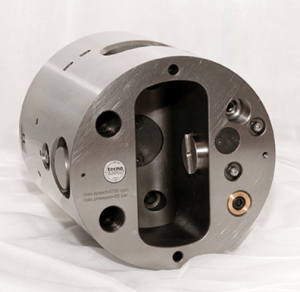

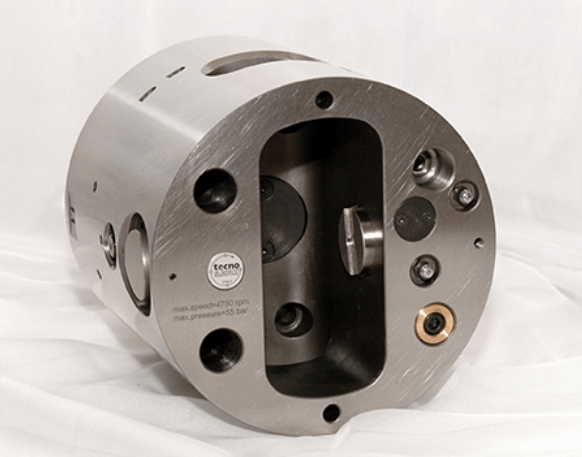

MD Indexing Chuck

With Automatic Clamping and Indexing (4×90°)

Key Features

  • Allows for automatic loading and unloading by robot
  • Chucking piston is connected to a safety device and keeps securely gripped in the event of a complete pressure loss

Description

MD is an automatic indexing chuck with hydraulic clamping and indexing. It is not self-centering.• made in special high resistance hardened and cementing 60HRC steel UNI18NiCrMo5, to maintain a high degree of precision, reliability and quality• High precision jaw slide ways• indexing movement simple and reliable: a conical shutter guarantees the mechanical indexing. Indexing precision ±1’30”• sealed against coolant, swarf and dust• constant and long lasting precision• easy installation to the machine.• standard includes four 90° indexing positions

Estimated delivery: 2-3 Weeks (subject to availability)

Dimensions

# Part No Diameter (mm) Clamping Surface (cm²) Stroke (mm) Price
1 MD160 160 13.85 10 £ Price on application
1 MD205 205 23.7 14 £ Price on application
1 MD235 235 23.7 14 £ Price on application
1 MD260 260 44.1 18 £ Price on application
1 MD285 285 44.1 18 £ Price on application
1 MD300 300 44.1 18 £ Price on application
1 MD315 315 63.6 23 £ Price on application
1 MD350 350 63.6 23 £ Price on application
1 MD400 400 86.5 30 £ Price on application
1 MD425 425 86.5 30 £ Price on application
1 MD500 500 103.8 40 £ Price on application
1 MD550 550 103.8 40 £ Price on application
