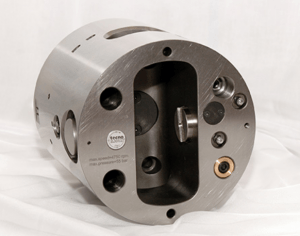

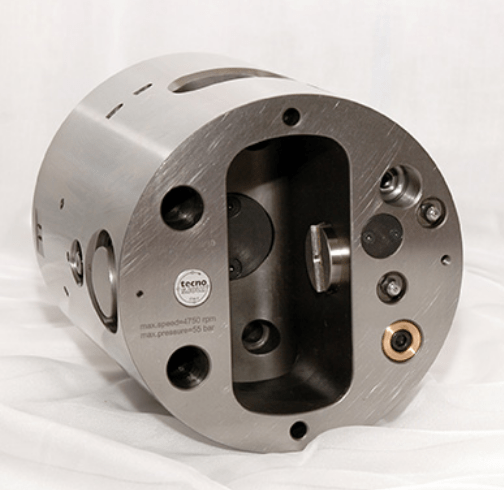

MDE Indexing Chuck
With Automatic Clamping and Indexing (8×45°)
Key Features
- Indexing takes, with position control, approx. 2-4 seconds per 90°, depending on the size of the chuck
- Allows for automatic loading and unloading by robot
- Chucking piston is connected to a safety device and keeps securely gripped in the event of a complete pressure loss
Description
MDE is an automatic indexing chuck with hydraulic clamping and indexing. It is not self-centering.• made in special high resistance hardened and cementing 60HRC steel UNI18NiCrMo5, to maintain a high degree of precision, reliability and quality• High precision jaw slide ways• indexing movement simple and reliable: a conical shutter guarantees the mechanical indexing. Indexing precision ±1’30”• sealed against coolant, swarf and dust• constant and long lasting precision• easy installation to the machine.• standard includes eight 45° indexing positions
Estimated delivery: 2-3 Weeks (subject to availability)
Dimensions
| # | Part No | Diameter (mm) | Clamping Surface (cm²) | Stroke (mm) | Price | |
|---|---|---|---|---|---|---|
| 1 | MDE160 | 160 | 13.85 | 10 | £ Price on application | |
| 1 | MDE205 | 205 | 23.7 | 14 | £ Price on application | |
| 1 | MDE235 | 235 | 23.7 | 14 | £ Price on application | |
| 1 | MDE260 | 260 | 44.1 | 18 | £ Price on application | |
| 1 | MDE285 | 285 | 44.1 | 18 | £ Price on application | |
