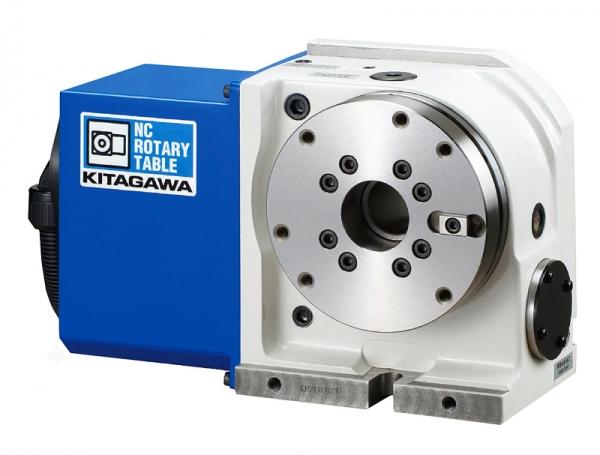

MX Series

High Speed 4th Axis Rotary Table

Key Features

  • Fast rotational speed
  • 39% reduced rotation time(with Kitagawa Control)
  • Interchangable with standard MR series
  • Compact Design

Description

Kitagawa MX series rotary tables are rapid rotation tables, reducing run times and increasing productivity. Available with all motor types in right or left hand configurations to suit a variety of machine models. Price includes Rotary Table, Motor to suit (Fanuc, Mitsubishi or Yaskawa) and cables internal and external(subject to machine model). Please note: your machine must be 4th axis prepared for intergration to machine control. RAV specification comes with an external controller that functions off a spare M-Code; used for machines that do not have 4th axis preperation.

Estimated delivery: On Request

Dimensions

# Part No Table Dia. (mm) Centre Bore (mm) Centre Height (mm) Clamping Torque (Nm) Allowable Inertia (kgm²) Repeatability (sec) Drawings Price
1 MX160 165 40 140 310 0.25 8
£12,477.00
2 MX160RAV00 165 40 140 310 0.25 8 £16,293.00
