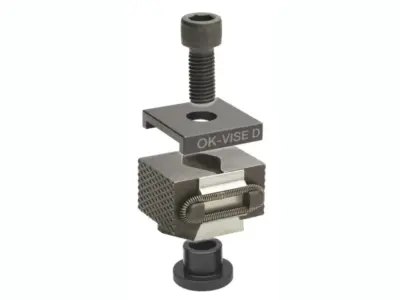

OK-VISE Pull Down Clamp

Single Wedge Pull-Down Version

Key Features

  • Jaws above the wedge allows for more of a pull-down action
  • Range of Sizes
  • Other Combinations of Jaws Available
  • Hardened for Longevity

Description

These are single-wedge pull-down clamp which are standard single-wedge clamp turned upside down combined with a pull-down set - a combination of a plate and a bushing. This type of clamp combines side forces with a pull down clamping action and has serrated jaws for extra grip.

Estimated delivery: 5-7 Working Days (subject to availability)

Dimensions

# Part No Width (mm) Height (mm) Optimum Length (mm) Grip Force (kN) Bolt Price
1 BK2-VT-PD 21 22 29 25 M8 x 20 £76.74
1 DK2-VT-PD 30 32 45 65 M12 x 60 £112.28
1 DK2-VTI-PD 1.18 1.25 1.77 65 1/2-1 1/4 £110.73
1 FK2-VT-PD 42 40.5 61 110 M16 x 60 £160.00
