QB Series (with Adaptor)

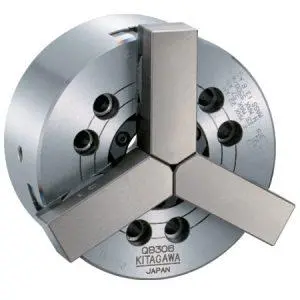

3 Jaw Quick Change Chuck with Adaptor Plate
Key Features
- Easy setup with quick release handle
- Quick change jaws reducing time between jobs
- Same chuck mounting as standard Kitagawa chucks
- Compatible with standard accessories
Description
Kitagawa chucks are manufactured from high grade alloy steel. The Kitagawa QB series chuck are designed with quick change top jaws which are accurately located by the dovetail. This allows for the quick change of pre-machined soft jaws decrease machine down time between job change over. QB series chucks are supplied with blank drawnut, adapter and a set of t-nuts as standard.
Estimated delivery: 2-3 Weeks (subject to availability)
Dimensions
| # | Part No | Spindle Nose | Chuck Bore | Jaw Stroke | Max Grip | Max Speed | Soft Jaws | Price | |
|---|---|---|---|---|---|---|---|---|---|
| 1 | QB306A5 | A2-5 | 45 | 5.5 | 57 | 5500 | SB06BB | ||
| 1 | QB308A6 | A2-6 | 52 | 7.4 | 84 | 4500 | SB08BB | ||
| 1 | QB310A6 | A2-6 | 75 | 8.8 | 111 | 4000 | SB10BB | ||
| 1 | QB310A8 | A2-8 | 75 | 8.8 | 111 | 4000 | SB10BB | ||
| 1 | QB312A8 | A2-8 | 91 | 10.6 | 144 | 3000 | SB12BB |
