Serrated Stationary Wedge (SVF-ABG)

For use on all series

Key Features

  • Maximise your machining envelope
  • High precision and high clamping force
  • Wide range of accessories for flexibility
  • Manufactured from tool steel treated to HRC 55 and ground

Description

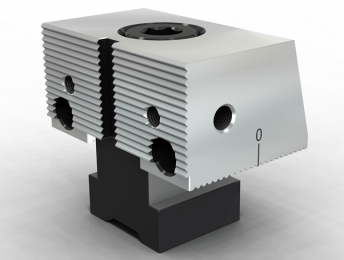

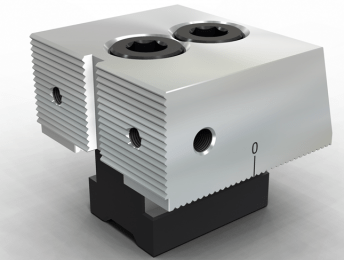

Stationary serrated wedge jaws for the SVF range of flexible vices. These jaws have serrated faces and are tapped to accept top jaws or workstops. The heavy duty type with 2 mounting screws is intended for B series vices and the standard duty type with only 1 mounting screw is intended for all other series.

Estimated delivery: On Request

Dimensions

# Part No Length (mm) Width (mm) Height (mm) Number of screws Duty Series Drawings Price

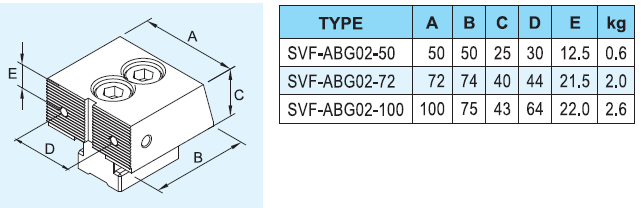

1 SVF-ABG02-50 50 50 25 2 Heavy B Series £122.50
2 SVF-ABG02-72 74 72 40 2 Heavy B Series £186.67
3 SVF-ABG02-100 75 100 43 2 Heavy B Series £229.84

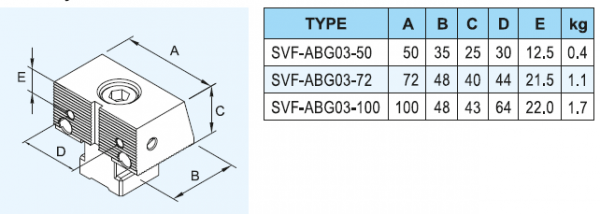

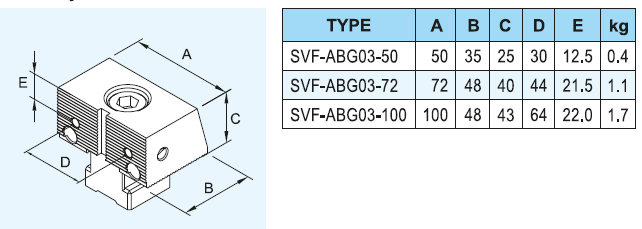

4 SVF-ABG03-50 35 50 25 1 Standard A | BE & C Series £114.34
5 SVF-ABG03-72 48 72 40 1 Standard A | BE & C Series £154.00
6 SVF-ABG03-100 48 100 43 1 Standard A | BE & C Series £193.67
