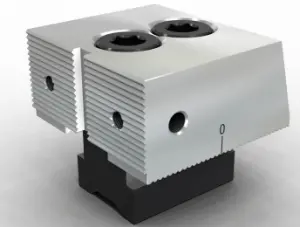

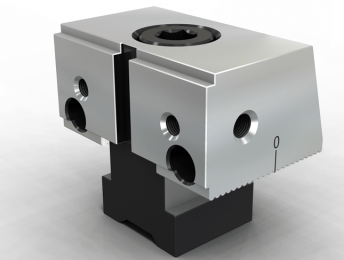

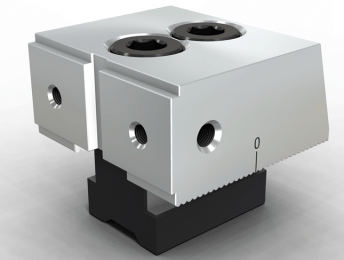

Step Stationary Wedge (SVF-ABS)

For use on all series

Key Features

  • Maximise your machining envelope
  • High precision and high clamping force
  • Wide range of accessories for flexibility
  • Manufactured from tool steel treated to HRC 55 and ground

Description

Stationary stepped wedge jaws for the SVF range of flexible vices. These jaws have either 2mm or 5mm steps and are tapped to accept top jaws or workstops. The heavy duty type with 2 mounting screws is intended for B series vices and the standard duty type with only 1 mounting screw is intended for all other series.

Estimated delivery: On Request

Dimensions

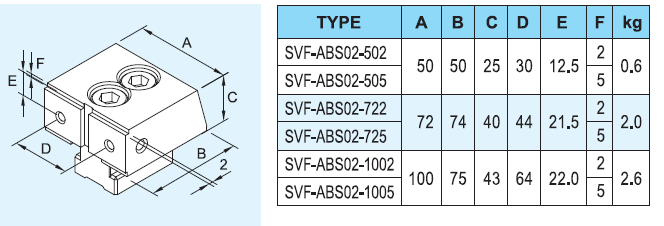

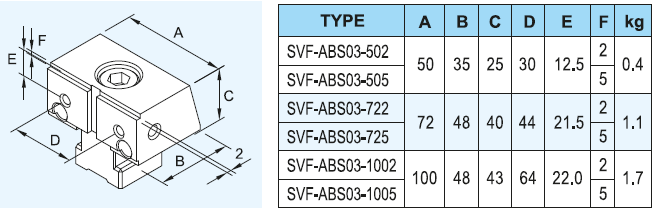

# Part No Length (mm) Width (mm) Height (mm) Depth of step (mm) Duty Series Drawings Price
1 SVF-ABS02-502 50 50 25 2 Heavy B Series £122.50
2 SVF-ABS02-505 50 50 25 5 Heavy B Series £122.50
3 SVF-ABS02-722 74 72 40 2 Heavy B Series £186.67
4 SVF-ABS02-725 74 72 40 5 Heavy B Series £186.67
5 SVF-ABS02-1002 75 100 43 2 Heavy B Series £229.84
6 SVF-ABS02-1005 75 100 43 5 Heavy B Series £229.84
7 SVF-ABS03-502 35 50 25 2 Standard A | BE & C Series £102.67
8 SVF-ABS03-505 35 50 25 5 Standard A | BE & C Series £102.67
9 SVF-ABS03-722 48 72 40 2 Standard A | BE & C Series £142.34
10 SVF-ABS03-725 48 72 40 5 Standard A | BE & C Series £142.34
11 SVF-ABS03-1002 48 100 43 2 Standard A | BE & C Series £182.00
12 SVF-ABS03-1005 48 100 43 5 Standard A | BE & C Series £182.00
