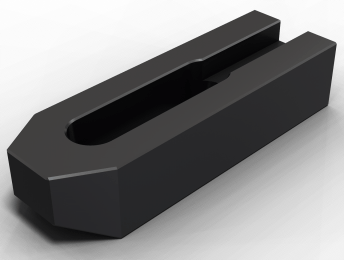

CP07 Slotted End Clamp Strap
For Top Clamping
Key Features
- Slotted to stayed properly orientated
- Hardened for Longevity
- Chamfered End for Additional Clearance
Description
Slotted End Clamp Strap allows for easy top clamping of the component. The slot aids in maintaining the orientation of the clamp. Hardened and Chemi-Blacked for durability and with a chamfer for additional access to the part.
Recommended Parts
SU01 Jig Rest Button
PT07 Clamping Stud
PT04 Flange Nut
PT29 Swivel Pad
The CP07 Slotted Clamp Strap is a precision-engineered clamping component designed to enhance workholding efficiency in machining and assembly operations. Its locating slot ensures the clamp remains properly oriented during use, providing consistent and reliable performance. Available in various dimensions, the CP07 Slotted End Clamp Strap series accommodates a range of workpiece sizes and clamping requirements, making it suitable for diverse industrial applications.Estimated delivery: 5-7 Working Days (subject to availability)
Dimensions
| # | Part No | Length (mm) | Width (mm) | Height (mm) | Thru slot width (mm) | Blind slot width (mm) | Blind slot depth (mm) | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | CP07-12065 | 65 | 32 | 22 | 13 | 10 | 7 | £11.79 | ||
| 1 | CP07-12080 | 80 | 32 | 22 | 13 | 10 | 7 | £13.30 | ||
| 1 | CP07-12100 | 100 | 32 | 22 | 13 | 10 | 7 | £15.40 | ||
| 1 | CP07-16080 | 80 | 38 | 22 | 17 | 12 | 8 | £15.29 | ||
| 1 | CP07-16100 | 100 | 38 | 25 | 17 | 12 | 8 | £18.55 | ||
| 1 | CP07-16125 | 125 | 38 | 25 | 17 | 12 | 8 | £21.70 | ||
| 1 | CP07-20150 | 150 | 50 | 25 | 21 | 13 | 9 | £28.70 | ||
| 1 | CP07-20200 | 200 | 50 | 32 | 21 | 13 | 9 | £37.34 |
