Smooth Fixed Jaw (SVF-B)
For use on all except A Series
Key Features
- Maximise your machining envelope
- High precision and high clamping force
- Wide range of accessories for flexibility
- Manufactured from tool steel treated to HRC 55 and ground
Description

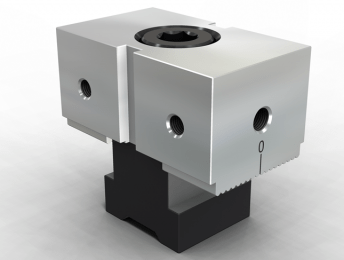

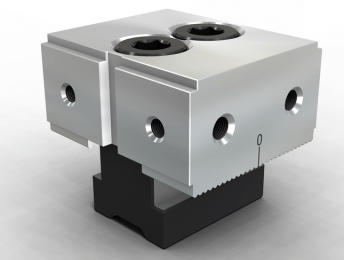

Smooth Fixed Jaw (SVF-B). Stationary (non wedge) jaws for the SVF range of flexible vices. These jaws are smooth faced and tapped to accept top jaws or workstops. The heavy duty type with 2 mounting screws is intended for B series vices and the standard duty type with only 1 mounting screw is intended for all other series except A series. These jaws are intended to be used on both sides inbetween 2 workpieces.
Estimated delivery: On Request
Dimensions
| # | Part No | Length (mm) | Width (mm) | Height (mm) | Number of screws | Duty | Series | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|

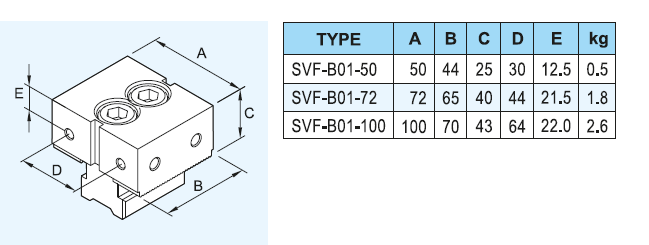

| 1 | SVF-B01-50 | 44 | 50 | 25 | 2 | Heavy | B & C Series |
|
£94.85 | ||
| 2 | SVF-B01-72 | 65 | 72 | 40 | 2 | Heavy | B & C Series |
|
£168.12 | ||
| 3 | SVF-B01-100 | 70 | 100 | 43 | 2 | Heavy | B & C Series |
|
£213.04 | ||

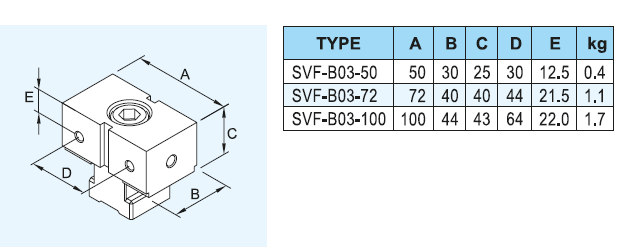

| 4 | SVF-B03-50 | 30 | 50 | 25 | 1 | Standard | B & BE Series |
|
£91.82 | ||
| 5 | SVF-B03-72 | 40 | 72 | 40 | 1 | Standard | B & BE Series |
|
£119.12 | ||
| 6 | SVF-B03-100 | 44 | 100 | 43 | 1 | Standard | B & BE Series |
|
£141.64 |
