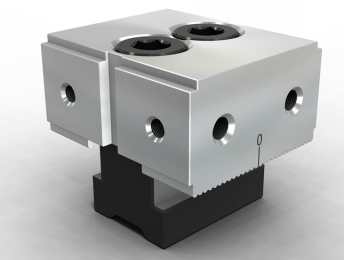

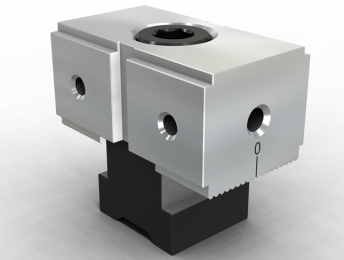

Stepped Fixed Jaw (SVF-BS)

For use on B, BE & C series

Key Features

  • Maximise your machining envelope
  • High precision and high clamping force
  • Wide range of accessories for flexibility
  • Manufactured from tool steel treated to HRC 55 and ground

Description

Stationary (non wedge) jaws for the SVF range of flexible vices. These jaws have steps of either 2mm or 5mm and are tapped to accept top jaws or workstops. The heavy duty type with 2 mounting screws is intended for B series vices and the standard duty type with only 1 mounting screw is intended for all other series except A series. These jaws are intended to be used on both sides inbetween 2 workpieces.

Estimated delivery: On Request

Dimensions

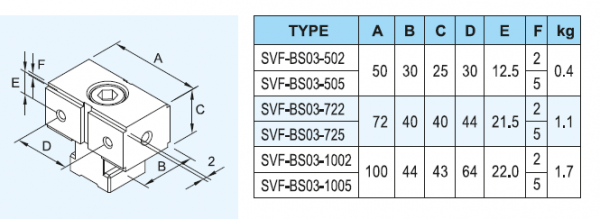

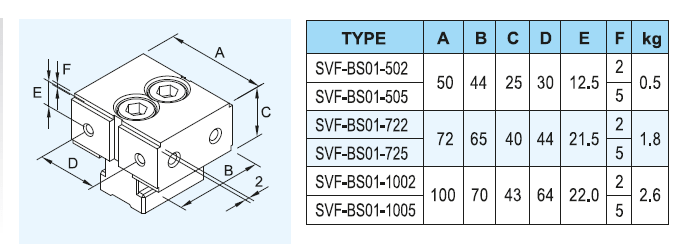

# Part No Length (mm) Width (mm) Height (mm) Series Step (mm) Duty Drawings Price
