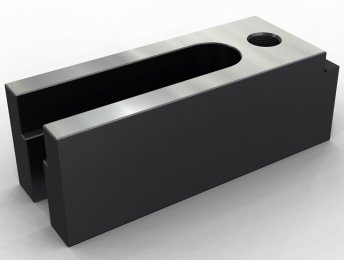

SU08 Extension Support
Mounting Support for toolmakers clamps
Key Features
- Increase workpiece position flexibility
- Can mount to standard baseplates or t-slots
- Heat treated to HRC40
- Accepts a variety of stops and clamps
Description
These extension supports are positioning aids for the Leave range of workstops. They Feature a slot for mounting, a threaded hole for installing fixed or adjustable workpiece support and a precision shelf that can support the workpiece directly. They can be incorporated into dedicated fixtures or mounted to standard baseplates to increase the flexibility of workpiece positioning.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Width (mm) | Length (mm) | Height (mm) | Mounting slot (mm) | Tapped Hole | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | SU08-12140-30 | 40 | 140 | 40 | 13 | M12 | £60.44 | ||
| 1 | SU08-16140-30 | 40 | 140 | 50 | 13 | M12 | £68.60 | ||
| 1 | SU08-12140-40 | 50 | 140 | 40 | 17 | M16 | £68.60 | ||
| 1 | SU08-16140-40 | 50 | 140 | 50 | 17 | M16 | £68.60 |
