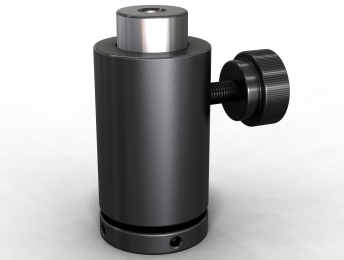

SU18 Support Jack
Adjustable support for component
Key Features
- Support for over hanging workpieces
- Spring loaded for fast adjustment
- Shock resistant during machining
- Heat treated to HRC 38 - 42
Description
This support jack features a spring loaded pluger on top and a threaded adjuster on the bottom. It is designed to support over hanging workpieces but can be used anywhere that adjustable workpiece support is required. The locking screw operates against a tapered surface to prevent push-back under load and the plunger has a threaded hole for the attachment of additional support elements like serrated pads or swivelling ball ends.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Height (mm) | Diameter (mm) | Plunger diameter (mm) | Pluger hole thread | Mounting thread | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | SU18-3655 | 61 | 36 | 20 | M8 | M10 | £47.72 | ||
| 1 | SU18-4270 | 79 | 42 | 25 | M10 | M12 | £53.79 | ||
| 1 | SU18-5085 | 100 | 50 | 30 | M12 | M16 | £67.44 |
