System 5 1540 Dual Station Jaw Sets
Fully Machineable Dual Station Jaw Sets
Key Features
- Change jaws in seconds and complete a full setup in a few minutes
- Precise loction of jaws means your datum is preserved every time you remove the jaws. Once a job is setup, it stays setup.
- Two parts in the same space as one. Maximise your working area and optimise the toolpath.
- Machinable workholding means complex shaped workpieces are easy to grip
Description

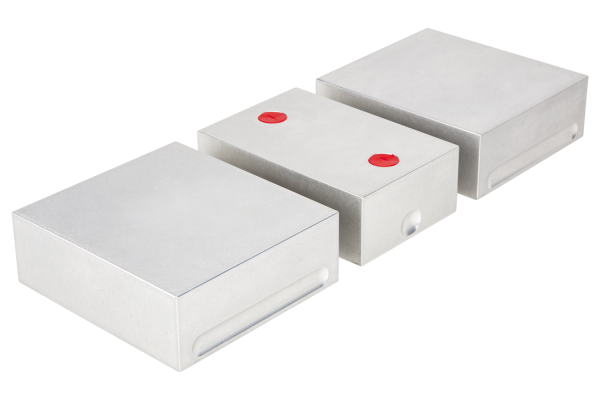

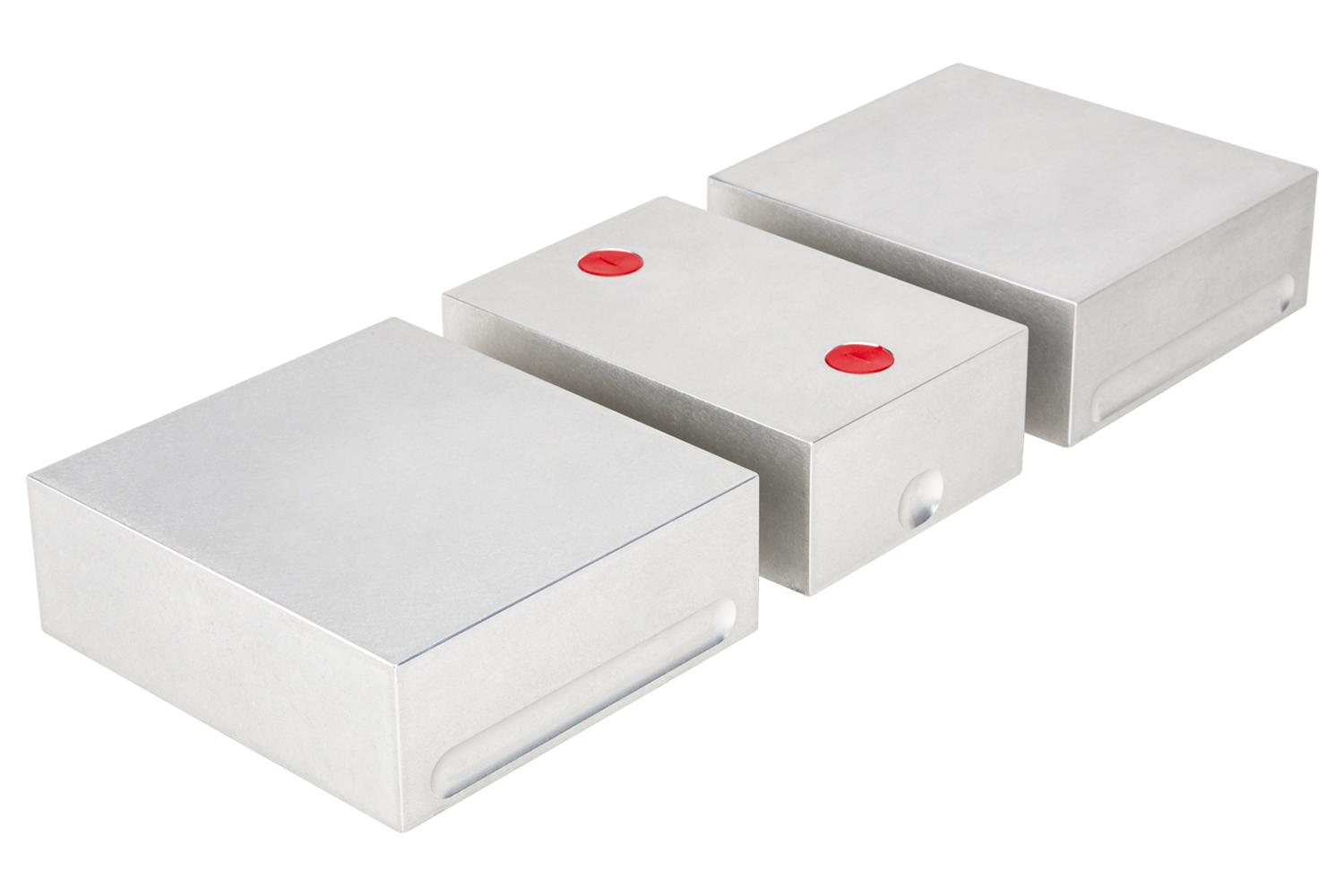

1540 Dual Station Jaw Sets Fully machinable aluminium jaws for use on either 1540 Qwik-Loks or 1540 Multi-Loks. The 1540 Dual station jaws clamp with an equal and opposing inward force, Thus eliminating the potential for jaw lift. The safe low profile jaw interface maximizes the amount of machinable area, Giving the ability to hold larger parts. These jaw sets are available in a range of sizes. An additional set of jaws can be created by purchasing an additional fixed jaw and reversing the movable jaws. All jaws are available as sets or individually.
Chick Jaw Finder
Estimated delivery: Next Day (subject to availability)
Dimensions
| # | Part No | Description | Width (mm) | Height (mm) | Max. Holding Capacity (mm) | Length (mm) | Number of jaws | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 5DS1540-15-50-01 | £439.00 | |||||||||
| 2 | 5DS1540-15-70-01 | Dual Station Set | 148 | 70 | 175 | 3 |
|
£626.00 | |||
| 3 | 5DS1540-20-50-01 | Dual Station Set | 198 | 50 | 175 | 3 |
|
£606.00 | |||
| 4 | 5DS1540-20-70-01 | Dual Station Set | 198 | 70 | 175 | 3 |
|
£802.00 | |||
| 5 | 5MJ1540-15-50 | Individual Movable jaw | 148 | 50 | 135 | 1 | £210.00 | ||||
| 6 | 5MJ1540-15-70 | Individual Movable jaw | 148 | 70 | 135 | 1 | £243.00 | ||||
| 7 | 5MJ1540-20-50 | Individual Movable jaw | 198 | 50 | 135 | 1 | £279.00 | ||||
| 8 | 5MJ1540-20-70 | Individual Movable jaw | 198 | 70 | 135 | 1 | £334.00 | ||||
| 9 | 5FJ1540-15-50 | Individual Fixed Jaw | 148 | 50 | 100 | 1 | £194.00 | ||||
| 10 | 5FJ1540-15-70 | Individual Fixed Jaw | 148 | 70 | 100 | 1 | £230.00 | ||||
| 11 | 5FJ1540-20-50 | Individual Fixed Jaw | 198 | 50 | 100 | 1 | £259.00 | ||||
| 12 | 5FJ1540-20-70 | Individual Fixed Jaw | 198 | 70 | 100 | 1 | £312.00 |
