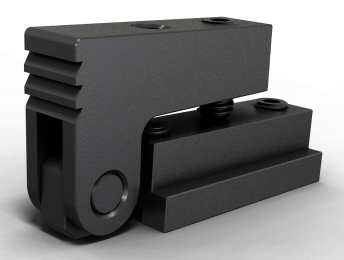

T-Slot Miniature Clamp
Side Clamping direct to Bed
Key Features
- Compact and Low Profile
- Quick and easy to Set-Up and Adjust
- Serrated for High Clamp Forces
Description
Hardened T-Slot clamp, actuation causes both a clamping force and pull down force. Hardened for durability and logevity. Serrated for holding rough components or additional hold force.
Estimated delivery: 5-7 Working Days (subject to availability)
Dimensions
| # | Part No | Height from bottom of t-slot (mm) | T-Slot Size (mm) | Width (mm) | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | CP22-1218 | 28.7 | 12 | 17.5 | £28.59 | ||
| 1 | CP22-1422 | 32.8 | 14 | 22.2 | £29.52 | ||
| 1 | CP22-1625 | 35.8 | 16 | 25.4 | £37.10 | ||
| 1 | CP22-1828 | 40 | 18 | 28.5 | £38.04 | ||
| 1 | CP22-2032 | 47.9 | 20 | 31.7 | £45.04 | ||
| 1 | CP22-2240 | 55 | 22 | 38 | £89.25 | ||
| 1 | CP22-2841 | 68 | 28 | 46.7 | £100.34 | ||
| 1 | CP22-3559 | 87.5 | 36 | 55 | £111.30 |
