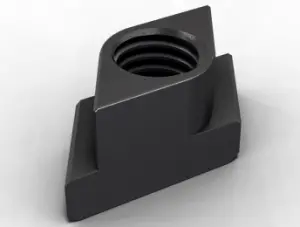

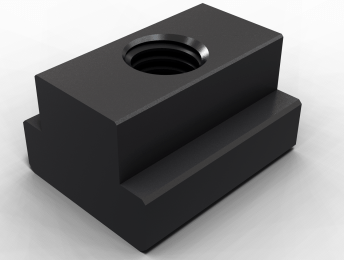

T-Slot Nut
T-Nut
Key Features
- Standard metric t-slot nuts
- Heat treated to HRC 30-35
- Black Oxide surface finish
Description
Standard metric t-slot nuts. These nuts are manufactured from S45C(JIS) / CK45(DIN) heat treated to HRC 30-35 and have a black oxide surface finish.
Estimated delivery: 5-7 Working Days (subject to availability)
Dimensions
| # | Part No | Width (mm) | Thread (mm) | Price | ||
|---|---|---|---|---|---|---|
| 1 | PT06-1008 | 10 | M8 | £1.64 | ||
| 1 | PT06-1210 | 12 | M10 | £1.75 | ||
| 1 | PT06-1410 | 14 | M10 | £1.99 | ||
| 1 | PT06-1412 | 14 | M12 | £2.22 | ||
| 1 | PT06-1612 | 16 | M12 | £2.34 | ||
| 1 | PT06-1614 | 16 | M14 | £2.57 | ||
| 1 | PT06-1810 | 18 | M10 | £3.85 | ||
| 1 | PT06-1812 | 18 | M12 | £3.85 | ||
| 1 | PT06-1814 | 18 | M14 | £3.50 | ||
| 1 | PT06-1816 | 18 | M16 | £3.50 | ||
| 1 | PT06-2016 | 20 | M16 | £3.85 | ||
| 1 | PT06-2018 | 20 | M18 | £3.97 | ||
| 1 | PT06-2218 | 22 | M18 | £4.90 | ||
| 1 | PT06-2220 | 22 | M20 | £5.02 | ||
| 1 | PT06-2418 | 24 | M18 | £5.02 | ||
| 1 | PT06-2420 | 24 | M20 | £5.25 | ||
| 1 | PT06-2620 | 26 | M20 | £6.07 | ||
| 1 | PT06-2622 | 26 | M22 | £6.07 | ||
| 1 | PT06-2822 | 28 | M22 | £7.47 | ||
| 1 | PT06-2824 | 28 | M24 | £7.59 |
