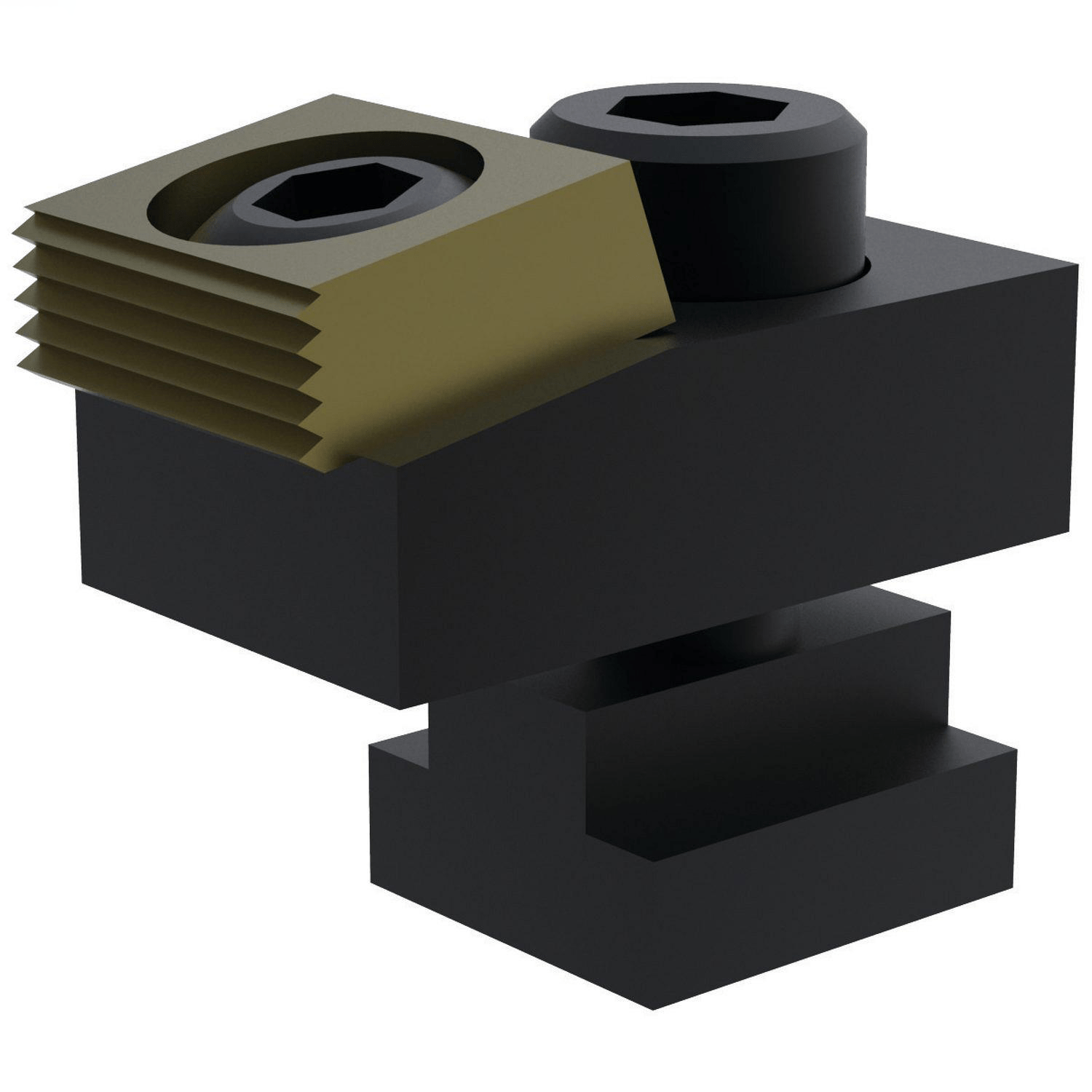

T-Slot Toe Clamps
Pull-down Cam Action Clamp
Key Features
- Compact Clamp that mounts directly in t-slots
- Cam Action for Fasr Clamping
- Pulls-down the component
- Has both Smooth and Serrated Edge
Description
This clamp is similar the Compact Toe Clamp, only it is designed to be used in the T-slots of machine tables. It provides 4,000 lbs. (17800 N) positive down force while maintaining a low profile. The hardened steel clamping element has both a smooth surface for machined workpieces and a serrated clamping surface for rougher work.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Type | T-Slot Size (mm/inch) | Clamp Force (N/lbs) | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | 54000 | Metric | None | 17800 | £ Price on application | n/a | |
| 1 | 54014 | Metric | 14 | 17800 | £62.31 | ||
| 1 | 54016 | Metric | 16 | 17800 | £62.31 | ||
| 1 | 54018 | Metric | 18 | 17800 | £65.58 | ||
| 1 | 24000 | Imperial | None | 4000 | £ Price on application | n/a | |
| 1 | 24128 | Imperial | 9/16 | 4000 | £ Price on application | n/a | |
| 1 | 24148 | Imperial | 5/8 | 4000 | £ Price on application | n/a | |
| 1 | 24168 | Imperial | 11/16 | 4000 | £ Price on application | n/a | |
| 1 | 24188 | Imperial | 3/4 | 4000 | £ Price on application | n/a |
