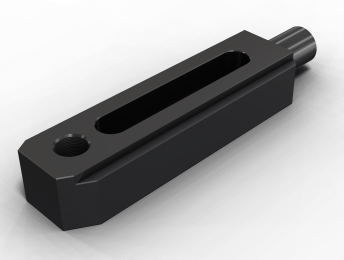

CP02 Tapped-Nose Strap
For Clamping on an Internal Diameter
Key Features
- Round End for holding an Internal Diameter
- Hardened for Longevity
Description
CP02 Tapped-Nose Strap. Cylindrical pin minimizes the contact area and is useful for clamping in horizontal holes and round profiles. Hardened and Chemi-Blacked toolmakers clamp for durability and with a chamfer for additional access to the part.
Recommended Parts
SU14 Split V Block
PT07 Clamping Stud
PT04 Flange Nut
PT29 Swivel Pad
SU15 Split V Block
The CP02 Tapped-Nose Strap is a versatile clamping component designed to enhance workholding efficiency in machining operations. Manufactured from high-quality S45C (JIS) / CK45 (DIN) steel, it undergoes heat treatment to achieve a hardness of HRC 32°~38°. Ensuring durability and resistance to wear. The black oxide surface finish further enhances corrosion resistance, extending the component's lifespan. A key feature of the CP02 is its cylindrical pin, which minimizes contact area, making it particularly effective for clamping in horizontal holes and round profiles. This design ensures a secure grip while reducing potential marring of the workpiece. Available in various dimensions, including widths of 38mm to 60mm and lengths ranging from 150mm to 250mm, the Tapped-Nose Strap offers flexibility to accommodate different clamping requirements.Estimated delivery: 5-7 Working Days (subject to availability)
Dimensions
| # | Part No | Length (mm) | Width (mm) | Height (mm) | Nose diameter (mm) | Thread | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | CP02-12150 | 150 | 38 | 22 | 18 | M12 | £22.99 | ||
| 1 | CP02-16150 | 150 | 48 | 32 | 24 | M16 | £31.85 | ||
| 1 | CP02-16200 | 200 | 48 | 32 | 24 | M16 | £39.55 | ||
| 1 | CP02-20200 | 200 | 60 | 35 | 28 | M20 | £51.57 | ||
| 1 | CP02-20250 | 250 | 60 | 35 | 28 | M20 | £62.65 |
