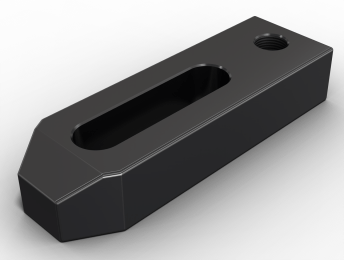

CP06 Tapped Strap Clamp
For Top Clamping
Key Features
- Hardened for Longevity
- Chamfered End for Additional Clearance
Description
Tapped Strap Clamp allows for easy top clamping of the component. Hardened and Chemi-Blacked for durability and with a chamfer for additional access to the part.
Recommended Parts
SU01 Jig Rest Button
PT07 Clamping Stud
PT04 Flange Nut
PT29 Swivel Pad
The CP06 Tapped Clamp Strap is a versatile clamping component designed to enhance workholding efficiency in machining and assembly operations. Its tapped design allows for easy integration with various knobs, jack screws, clamps, and pads, such as the PT29, providing flexibility in securing different workpieces. The CP06 series is available in multiple sizes to accommodate a range of workpiece dimensions and clamping requirements, making it suitable for diverse industrial applications.Estimated delivery: 5-7 Working Days (subject to availability)
Dimensions
| # | Part No | Length (mm) | Width (mm) | Height (mm) | Slot width (mm) | Thread | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | CP06-12065 | 65 | 32 | 19 | 13 | £11.55 | |||
| 1 | CP06-12080 | 80 | 32 | 19 | 13 | £13.89 | |||
| 1 | CP06-12100 | 100 | 32 | 19 | 13 | £16.57 | |||
| 1 | CP06-16080 | 80 | 38 | 19 | 17 | £14.70 | |||
| 1 | CP06-16100 | 100 | 38 | 25 | 17 | £20.42 | |||
| 1 | CP06-16125 | 125 | 38 | 25 | 17 | £25.20 | |||
| 1 | CP06-20150 | 150 | 50 | 25 | 21 | £31.74 | |||
| 1 | CP06-20200 | 200 | 50 | 32 | 21 | £43.99 |
