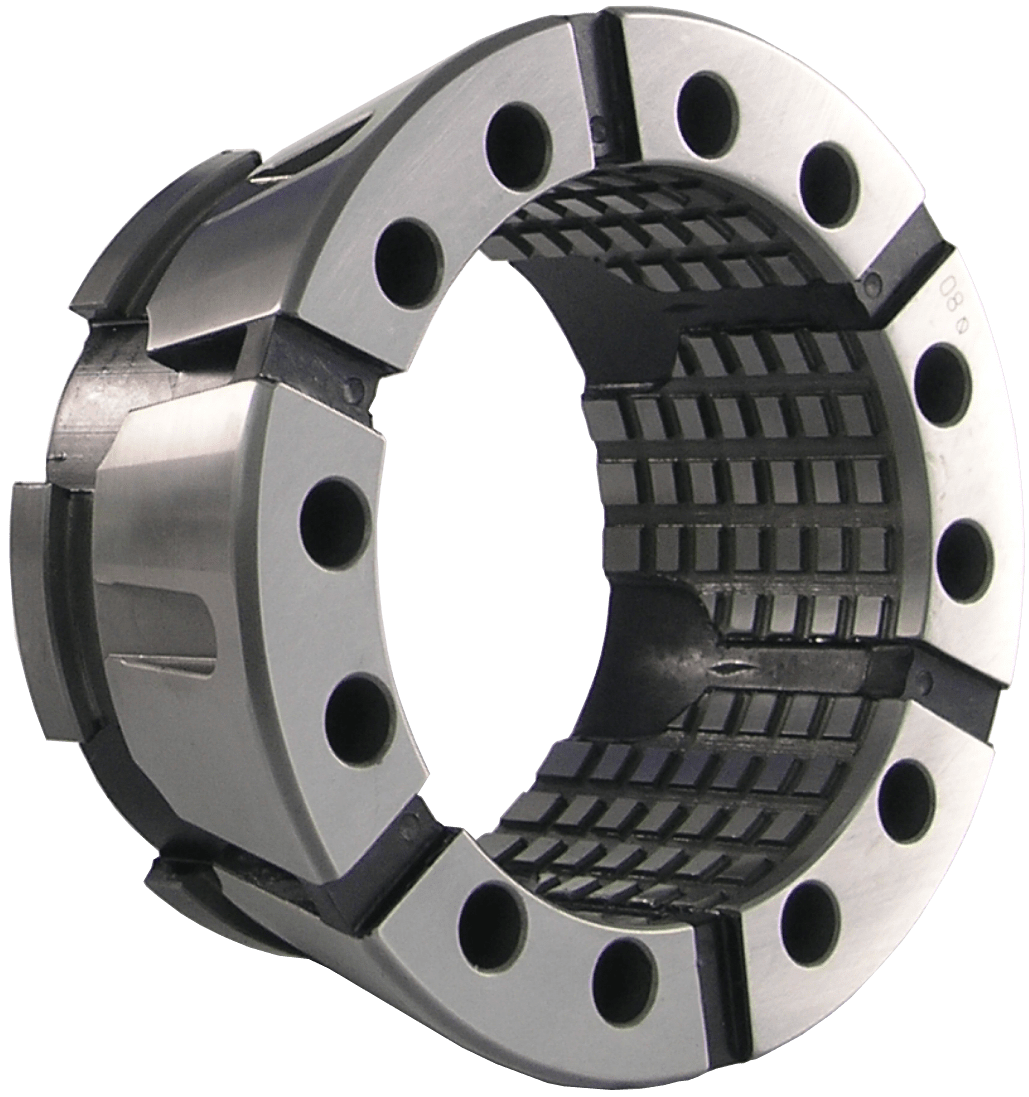

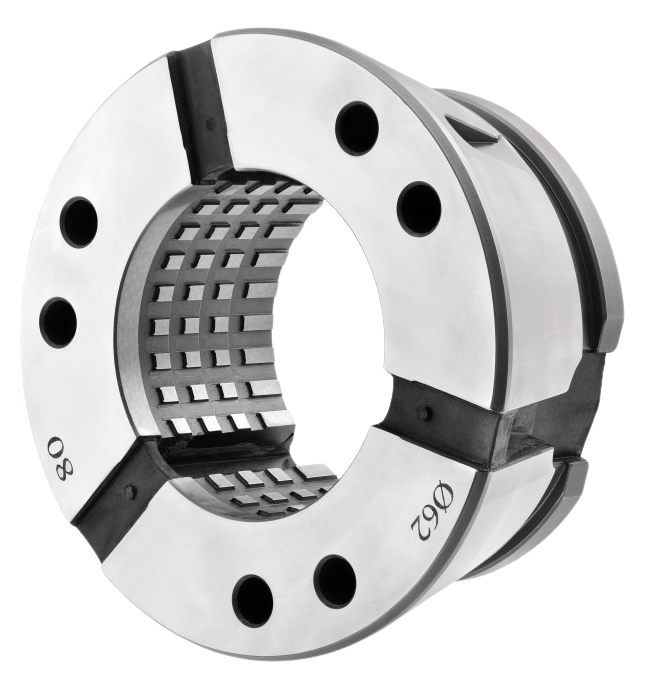

DC80 Round Serrated Collet

80mm Capacity Quick Change Collet

Key Features

  • Round, Hexagon, Square or Emergency types available
  • Available in Smooth or Serrated
  • Clamping tolerance of +/- 0.5mm
  • Counter boring and special profile shapes are available upon request

Description

DC Varibore Collets have the same accuracy specification as spring collets whilst maintaining a gripping range of +/- 0.5mm. Supplied with either smooth or serrated gripping surface. Serrated collets are ideal for aggressive first operation gripping of rough bar work. Vulcanized rubber between the hardened steel collet segments provides excellent protection against coolant and chip ingress. Counter boring and special profile shapes are available upon request.

Estimated delivery: 5-7 Working Days (subject to availability)

Dimensions

# Part No Type Range (mm) Price
1 DC80-R12 Serrated 11.5-12.5 £302.00
1 DC80-R13 Serrated 12.5-13.5 £302.00
1 DC80-R14 Serrated 13.5-14.5 £302.00
1 DC80-R15 Serrated 14.5-15.5 £302.00
1 DC80-R16 Serrated 15.5-16.5 £302.00
1 DC80-R17 Serrated 16.5-17.5 £302.00
1 DC80-R18 Serrated 17.5-18.5 £302.00
1 DC80-R19 Serrated 18.5-19.5 £302.00
1 DC80-R20 Serrated 19.5-20.5 £302.00
1 DC80-R21 Serrated 20.5-21.5 £302.00
1 DC80-R22 Serrated 21.5-22.5 £302.00
1 DC80-R23 Serrated 22.5-23.5 £302.00
1 DC80-R24 Serrated 23.5-24.5 £302.00
1 DC80-R25 Serrated 24.5-25.5 £302.00
1 DC80-R26 Serrated 25.5-26.5 £302.00
1 DC80-R27 Serrated 26.5-27.5 £302.00
1 DC80-R28 Serrated 27.5-28.5 £302.00
1 DC80-R29 Serrated 28.5-29.5 £302.00
1 DC80-R30 Serrated 29.5-30.5 £302.00
1 DC80-R31 Serrated 30.5-31.5 £302.00
1 DC80-R32 Serrated 31.5-32.5 £302.00
1 DC80-R33 Serrated 32.5-33.5 £302.00
1 DC80-R34 Serrated 33.5-34.5 £302.00
1 DC80-R35 Serrated 34.5-35.5 £302.00
1 DC80-R36 Serrated 35.5-36.5 £302.00
1 DC80-R37 Serrated 36.5-37.5 £302.00
1 DC80-R38 Serrated 37.5-38.5 £302.00
1 DC80-R39 Serrated 38.5-39.5 £302.00
1 DC80-R40 Serrated 39.5-40.5 £302.00
1 DC80-R41 Serrated 40.5-41.5 £302.00
1 DC80-R42 Serrated 41.5-42.5 £302.00
1 DC80-R43 Serrated 42.5-43.5 £302.00
1 DC80-R44 Serrated 43.5-44.5 £302.00
1 DC80-R45 Serrated 44.5-45.5 £302.00
1 DC80-R46 Serrated 45.5-46.5 £302.00
1 DC80-R47 Serrated 46.5-47.5 £302.00
1 DC80-R48 Serrated 47.5-48.5 £302.00
1 DC80-R49 Serrated 48.5-49.5 £302.00
1 DC80-R50 Serrated 49.5-50.5 £302.00
1 DC80-R51 Serrated 50.5-51.5 £302.00
1 DC80-R52 Serrated 51.5-52.5 £302.00
1 DC80-R53 Serrated 52.5-53.5 £302.00
1 DC80-R54 Serrated 53.5-54.5 £302.00
1 DC80-R55 Serrated 54.5-55.5 £302.00
1 DC80-R56 Serrated 55.5-56.5 £302.00
1 DC80-R57 Serrated 56.5-57.5 £302.00
1 DC80-R58 Serrated 57.5-58.5 £302.00
1 DC80-R59 Serrated 58.5-59.5 £302.00
1 DC80-R60 Serrated 59.5-60.5 £302.00
1 DC80-R61 Serrated 60.5-61.5 £302.00
1 DC80-R62 Serrated 61.5-62.5 £302.00
1 DC80-R63 Serrated 62.5-63.5 £302.00
1 DC80-R64 Serrated 63.5-64.5 £302.00
1 DC80-R65 Serrated 64.5-65.5 £302.00
1 DC80-R66 Serrated 65.5-66.5 £302.00
1 DC80-R67 Serrated 66.5-67.5 £302.00
1 DC80-R68 Serrated 67.5-68.5 £302.00
1 DC80-R69 Serrated 68.5-69.5 £302.00
1 DC80-R70 Serrated 69.5-70.5 £302.00
1 DC80-R71 Serrated 70.5-71.5 £302.00
1 DC80-R72 Serrated 71.5-72.5 £302.00
1 DC80-R73 Serrated 72.5-73.5 £302.00
1 DC80-R74 Serrated 73.5-74.5 £302.00
1 DC80-R75 Serrated 74.5-75.5 £302.00
1 DC80-R76 Serrated 75.5-76.5 £302.00
1 DC80-R77 Serrated 76.5-77.5 £302.00
1 DC80-R78 Serrated 77.5-78.5 £302.00
1 DC80-R79 Serrated 78.5-79.5 £302.00
1 DC80-R80 Serrated 79.5-80.5 £302.00
