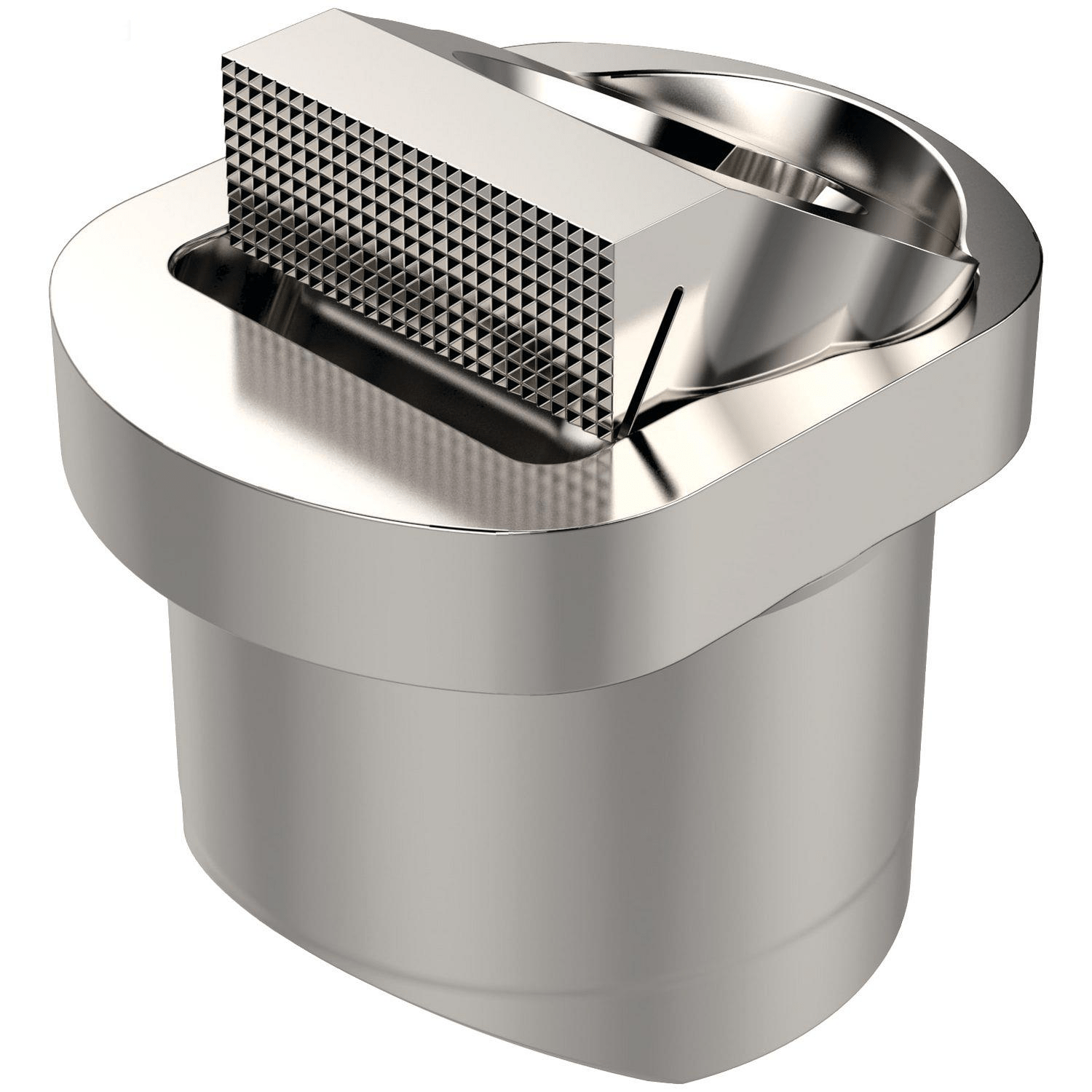

Dyna-Force Clamps
Low Profile Clamping
Key Features
- Easy to incorporate into fixtures
- Angled clamp force for pull down action
- Stainless steel construction
- Smooth or serrated
Description
Clamps designed to be easily incorporated into fixtures. The majority of the Dyna-Force® clamp is below the surface of the fixture which provides excellent clamp support and makes for a very low profile. The clamp jaw slides on an angle for positive downforce. These clamps are available with smooth or serrated faces and require a simple bored hole with recess to mount. The construction of these clamps is 17-4 PH stainless steel and stainless screws and retaining rings are available for EDM applications.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Construction | Clamp width (mm) | Clamp screw (mm) | Travel (mm) | Mount diameter (mm) | Clamp Force (N) | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 28314 | Smooth 34RC | 13.50 | M6x12mm | 2.0 | 20.00 | 8896 | £116.62 | ||
| 1 | 28318 | Serrated 44RC | 13.50 | M6x12mm | 2.0 | 20.00 | 8896 | £126.46 | ||
| 1 | 28320 | Smooth 34RC | 15.00 | M8x16mm | 2.2 | 25.00 | 11565 | £121.61 | ||
| 1 | 28322 | Serrated 44RC | 15.00 | M8x16mm | 2.2 | 25.00 | 11565 | £131.31 | ||
| 1 | 28324 | Smooth 34RC | 20.00 | M10x18mm | 3.8 | 30.00 | 14234 | £184.63 | ||
| 1 | 28328 | Serrated 44RC | 20.00 | M10x18mm | 3.8 | 30.00 | 14234 | £199.30 |
