Original Fixture Clamps
Low Profile Cam Action Clamps
Key Features
- Low Profile for Good Clearance
- Cam Action for Fasr Clamping
- Low Cost fixturing Option
- Available in Stainless for EDM Applications
Description

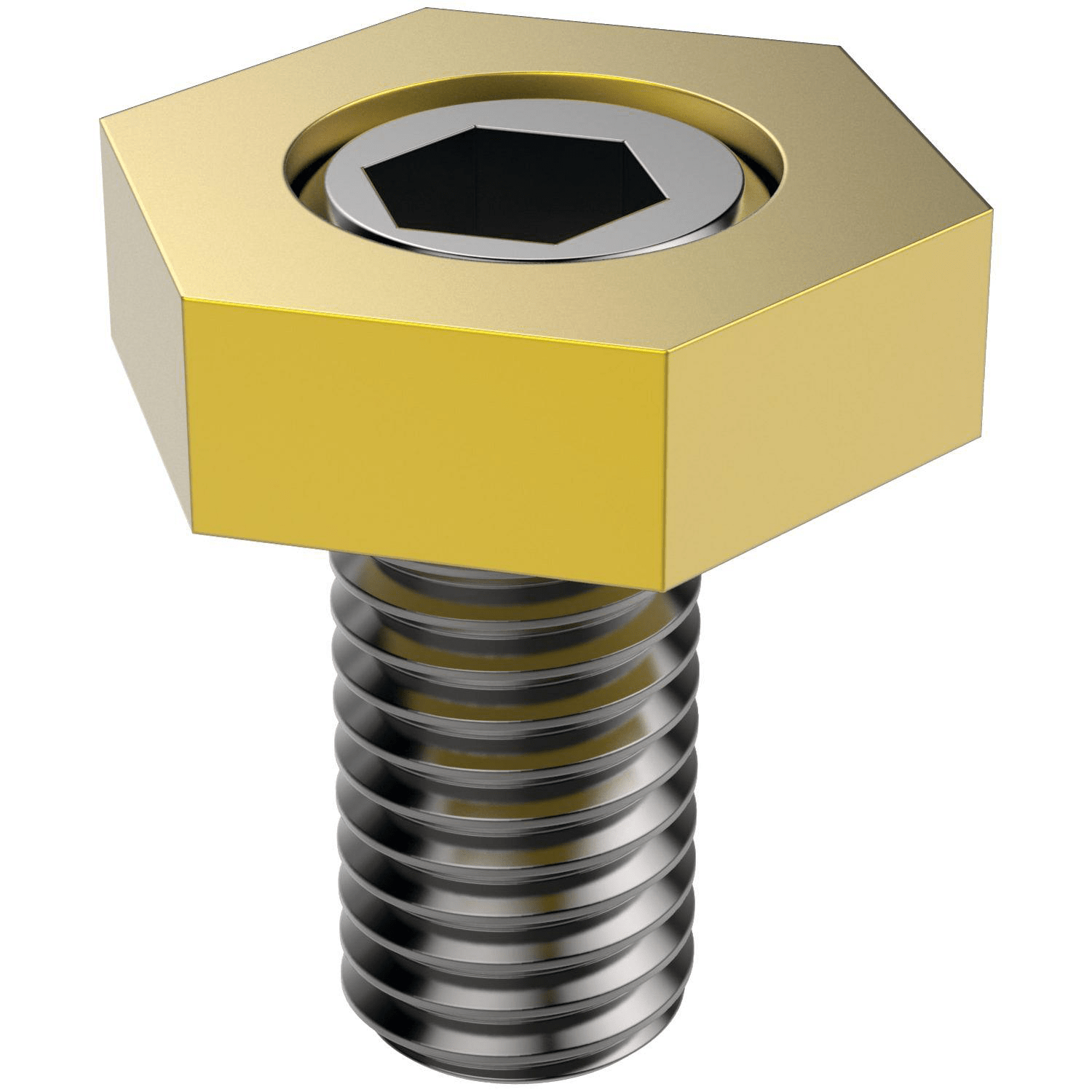

Original Fixture clamp is a low cost easy to use fixturing option. The low profile nature allows for good tool clearance while the cam actuation allows for easy, simple clamping. Made of just two components; a hardened steel screw with an offset head and a brass hex washer. Both components are also supplied in stainless steel for EDM applications. Available as Metric or Imperial.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Type | Material | Height (mm/inch) | Clamp Force (N/lbs) | Bolt | Clamps per Pack | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 50204 | Metric | Brass | 2.8 | 910 | M4 | 10 | £51.90 | ||
| 1 | 50206 | Metric | Brass | 4.75 | 3558 | M6 | 10 | £55.32 | ||
| 1 | 50208 | Metric | Brass | 4.55 | 3558 | M8 | 12 | £62.49 | ||
| 1 | 50210 | Metric | Brass | 6.35 | 8895 | M10 | 10 | £62.88 | ||
| 1 | 50212 | Metric | Brass | 9.52 | 17790 | M12 | 8 | £68.87 | ||
| 1 | 50216 | Metric | Brass | 12.7 | 26680 | M16 | 4 | £61.02 | ||
| 1 | 50218 | Metric | Brass | 4.55 | 3558 | M8 | bulk | £ Price on application | n/a | |
| 1 | 50214 | Metric | Stainless Steel | 2.8 | 910 | M4 | 4 | £ Price on application | n/a | |
| 1 | 50205 | Metric | Stainless Steel | 4.75 | 3558 | M6 | 4 | £89.53 | ||
| 1 | 50207 | Metric | Stainless Steel | 6.35 | 3558 | M8 | 4 | £88.11 | ||
| 1 | 10202 | Imperial | Brass | 0.11 | 205 | 8-32 | 10 | £ Price on application | n/a | |
| 1 | 10207 | Imperial | Brass | 0.16 | 350 | 10-32 | 10 | £ Price on application | n/a | |
| 1 | 10204 | Imperial | Brass | 0.19 | 800 | 1/4-20 | 10 | £ Price on application | n/a | |
| 1 | 10205 | Imperial | Brass | 0.18 | 800 | 5/16-24 | 12 | £ Price on application | n/a | |
| 1 | 10201 | Imperial | Brass | 0.18 | 800 | 5/16-18 | 12 | £ Price on application | n/a | |
| 1 | 10206 | Imperial | Brass | 0.25 | 2000 | 3/8-16 | 10 | £ Price on application | n/a | |
| 1 | 10208 | Imperial | Brass | 0.375 | 4000 | 1/2-13 | 8 | £ Price on application | n/a | |
| 1 | 10210 | Imperial | Brass | 0.5 | 6000 | 5/8-11 | 4 | £ Price on application | n/a | |
| 1 | 10214 | Imperial | Stainless Steel | 0.11 | 205 | 8-32 | 4 | £ Price on application | n/a | |
| 1 | 10203 | Imperial | Stainless Steel | 0.19 | 800 | 1/4-20 | 4 | £ Price on application | n/a | |
| 1 | 10213 | Imperial | Stainless Steel | 0.25 | 800 | 5/16-18 | 4 | £ Price on application | n/a |
