Machinable Fixture Clamps
Low Profile Cam Action Clamps
Key Features
- Low Profile for Good Clearance
- Cam Action for Fast Clamping
- Machinable to suit different Profile Components
Description

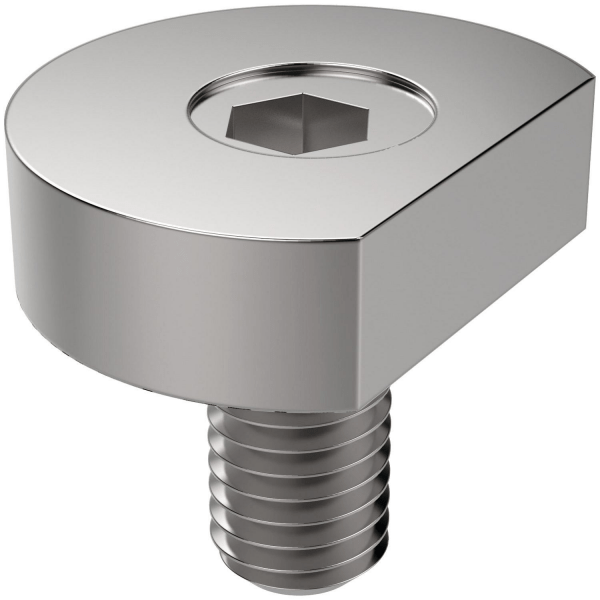

Machinable Fixture clamp is a low cost easy to use fixturing option. The low profile nature allows for good tool clearance while the cam actuation allows for easy, simple clamping. Made of just two components; a hardened steel screw with an offset head and a machianable steel washer. Machinable fixture clamps can be machined to suit a profile or machined with a step to allow for through drilling.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Type | Height (mm) | Clamp Force (N) | Bolt | Clamps per Pack | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 50506 | Metric | 6.4 | 3385 | M6 | 4 | £63.59 | ||
| 1 | 50510 | Metric | 8.9 | 8900 | M10 | 4 | £70.29 | ||
| 1 | 50512 | Metric | 11.4 | 17800 | M12 | 4 | £86.83 | ||
| 1 | 50516 | Metric | 14 | 26700 | M16 | 4 | £106.92 | ||
| 1 | 10504 | Imperial | 0.25 | 800 | 1/4-20 | 4 | £ Price on application | n/a | |
| 1 | 10506 | Imperial | 0.35 | 2000 | 3/8-16 | 4 | £ Price on application | n/a | |
| 1 | 10508 | Imperial | 0.45 | 4000 | 1/2-13 | 4 | £ Price on application | n/a | |
| 1 | 10510 | Imperial | 0.55 | 6000 | 5/8-11 | 4 | £ Price on application | n/a |
