Long Length Uniforce Clamps
Channel and Wedge
Key Features
- Easy to design and build fixtures
- Holds two parts with equilateral clamping action
- Ideal for clamping flat or round work pieces
- Can be cut to desired length
Description

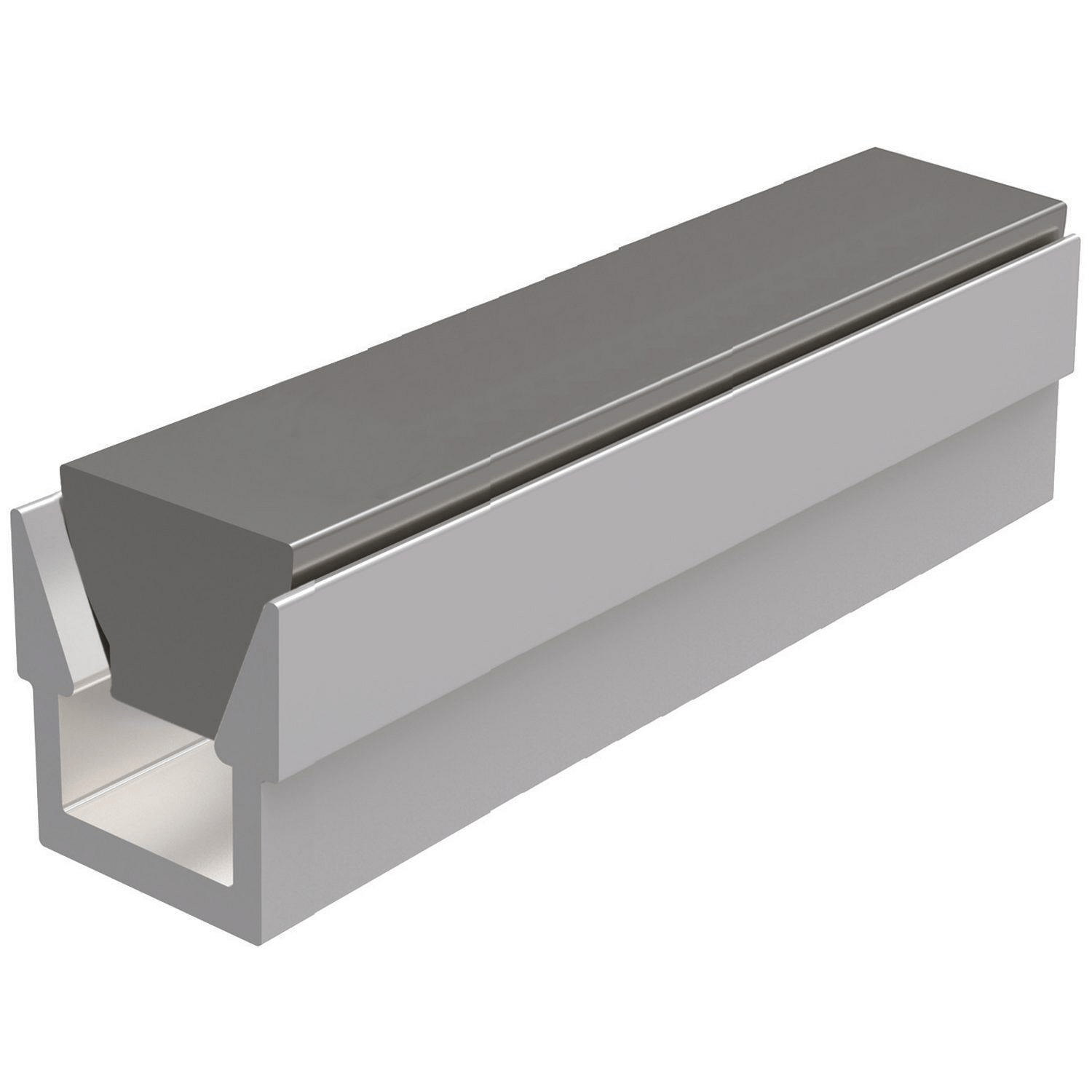

The compact, economical MITEE-BITE Uniforce® Clamp enables you to fixture more parts on the machine table. The specially designed steel wedge spreads the clamping force uniformly on both sides of the 7075-T6 aluminum channel. This form of Uniforce is supplied as separate channel and wedge in undrilled lengths of 508mm and can be cut to length to suit the workpiece.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Type | Width (mm) | Height (mm) | Length (mm) | Holding force (N) | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 62010 | Channel | 6.1 | 6.4 | 508 | 880 | n/a | ||
| 1 | 63010 | Wedge | 6.1 | 6.4 | 508 | 880 | n/a | ||
| 1 | 62020 | Channel | 9.1 | 9.5 | 508 | 1350 | n/a | ||
| 1 | 63020 | Wedge | 9.1 | 9.5 | 508 | 1350 | £ Price on application | n/a | |
| 1 | 62120 | Channel | 12.3 | 12.70 | 508 | 2225 | £67.29 | ||
| 1 | 63120 | Wedge | 12.3 | 12.70 | 508 | 2225 | £ Price on application | n/a | |
| 1 | 62220 | Channel | 18.6 | 19.05 | 508 | 6675 | £86.11 | ||
| 1 | 63220 | Wedge | 18.6 | 19.05 | 508 | 6675 | £ Price on application | n/a | |
| 1 | 62320 | Channel | 24.8 | 25.40 | 508 | 11125 | £99.94 | ||
| 1 | 63320 | Wedge | 24.8 | 25.40 | 508 | 11125 | £ Price on application | n/a | |
| 1 | 62420 | Channel | 37.3 | 38.10 | 508 | 15575 | £280.14 | ||
| 1 | 63420 | Wedge | 37.3 | 38.10 | 508 | 15575 | £ Price on application | n/a | |
| 1 | 62520 | Channel | 49.7 | 50.80 | 508 | 26700 | n/a | ||
| 1 | 63520 | Wedge | 49.7 | 50.80 | 508 | 26700 | £ Price on application | n/a |
