Modular Pitbull Clamps
Low Profile Clamping
Key Features
- Positive down force on minimal clamping height
- Simple, sturdy, high quality design and components
- Easy to design and build fixtures
- Modular system ready to use
Description

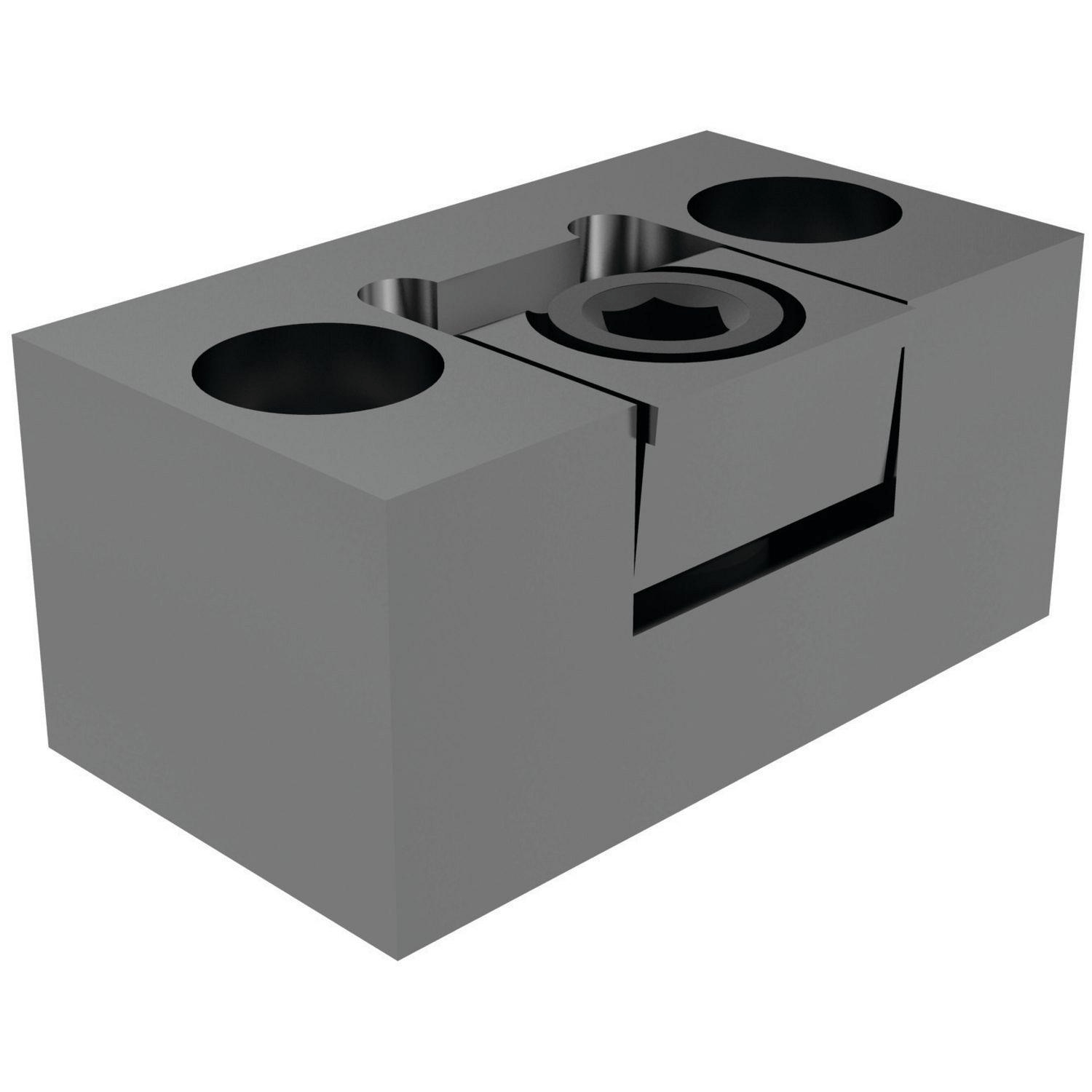

The Pitbull® Fixture Clamp is very well known for its low profile and positive down force. It is now available as a modular clamp in two styles. The slotted Modular Pitbull® Clamp with a step offers increased versatility through its unique riser design. This clamp supports the work piece off the machine table for through milling and drilling. The compact Modular Pitbull® Clamp is ideal for clamping work pieces in series by using the back surface of a clamp to locate the next work piece.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Type | Consruction | Width (mm/inch) | Total height (mm/inch) | Part height (mm/inch) | Clamp Force (N/lbs) | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 56220 | Metric | Med/Compact Knife edge | 57.1 | 25.1 | NA | 16 | 000 | £89.11 | ||
| 1 | 56230 | Metric | Lrg/Compact Knife edge | 68.6 | 31.5 | NA | 26 | 000 | £140.00 | ||
| 1 | 56240 | Metric | Med/Slotted Knife edge | 31.7 | 25.1 | 18.542 | 16 | 000 | £95.38 | ||
| 1 | 56250 | Metric | Lrg/Slotted Knife edge | 38.1 | 40.9 | 35 | 26 | 000 | £202.16 | ||
| 1 | 56225 | Metric | Med/Compact Blunt edge | 57.1 | 25.1 | NA | 16 | 000 | £89.11 | ||
| 1 | 56235 | Metric | Lrg/Compact Blunt edge | 68.6 | 31.5 | NA | 26 | 000 | £140.00 | ||
| 1 | 56245 | Metric | Med/Slotted Blunt edge | 31.7 | 25.1 | 18.542 | 16 | 000 | £95.38 | ||
| 1 | 56255 | Metric | Lrg/Slotted Blunt edge | 38.1 | 40.9 | 35 | 26 | 000 | £202.16 | ||
| 1 | 26220 | Imperial | Med/Compact Knife edge | 2.25 | 0.98 | NA | 3600 | £ Price on application | n/a | |
| 1 | 26230 | Imperial | Lrg/Compact Knife edge | 2.7 | 1.24 | NA | 6000 | £ Price on application | n/a | |
| 1 | 26240 | Imperial | Med/Slotted Knife edge | 1.25 | 0.99 | 0.73 | 3600 | £ Price on application | n/a | |
| 1 | 26250 | Imperial | Lrg/Slotted Knife edge | 1.5 | 1.61 | 1.378 | 6000 | £ Price on application | n/a | |
| 1 | 26225 | Imperial | Med/Compact Blunt edge | 2.25 | 0.98 | NA | 3600 | £ Price on application | n/a | |
| 1 | 26235 | Imperial | Lrg/Compact Blunt edge | 2.7 | 1.24 | NA | 6000 | £ Price on application | n/a | |
| 1 | 26245 | Imperial | Med/Slotted Blunt edge | 1.25 | 0.99 | 0.73 | 3600 | £ Price on application | n/a | |
| 1 | 26255 | Imperial | Lrg/Slotted Blunt edge | 1.5 | 1.61 | 1.378 | 6000 | £ Price on application | n/a |
