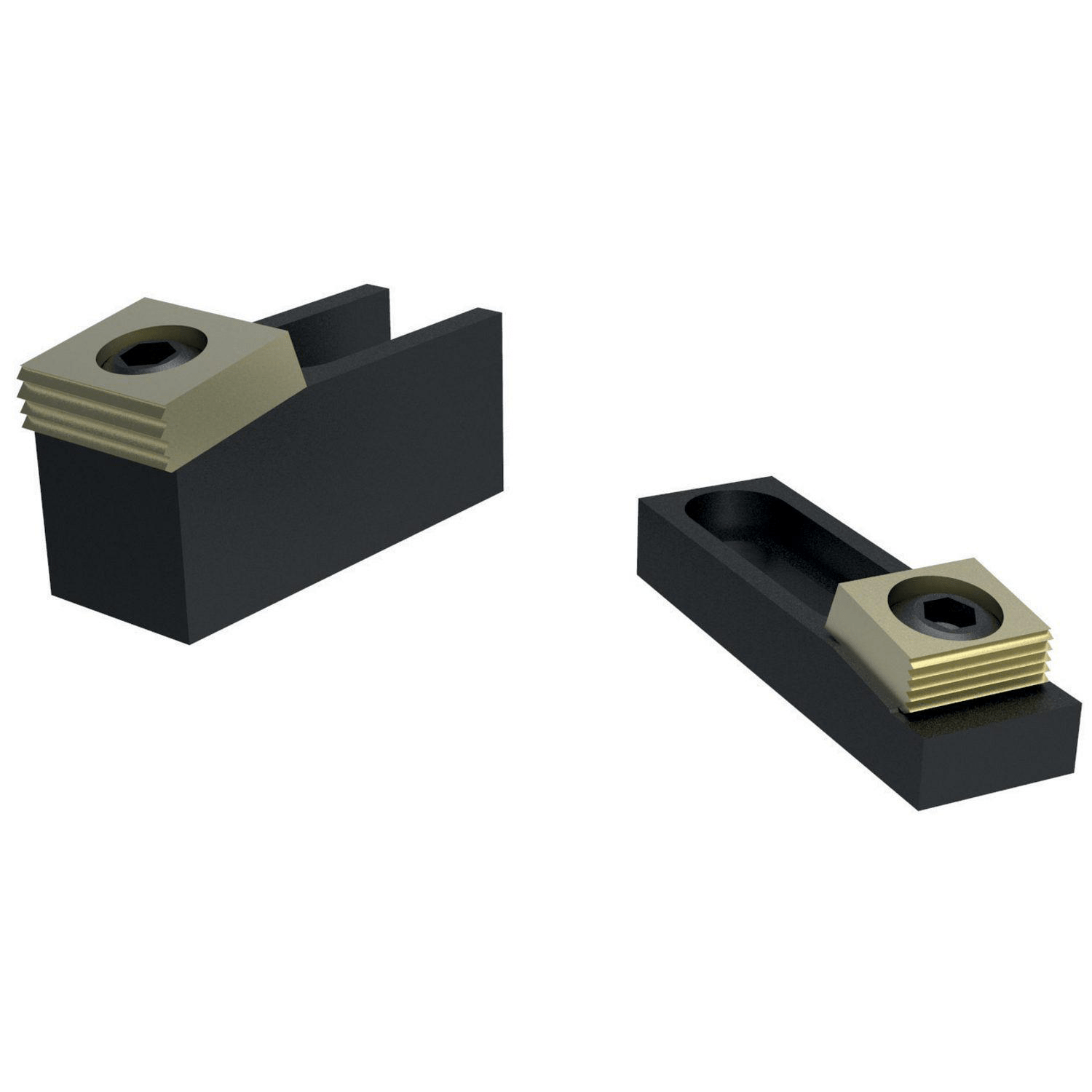

Multi-Fixture Clamps and Stops
Versatile Clamping away from Machine Bed
Key Features
- Provides flexible set ups for hard to hold parts
- Works in T-slots or matrix tables with tapped holes
- Can be mounted vertically or horizontally
- Built in risers for clearance under workpiece
Description
The MITEE-BITE Multi-Fixture Clamps offer increased versatility through their unique riser clamp design. They are available with steps to lift the workpiece or without steps to clamp higher up on the workpiece. All clamps come in metric or imperial versions with the stops being universal. The mounting slots in the stops and clamps have a tapered surface to prevent push-back. These clamps and stops can be mounted directly in t-slots or matrix tables with tapped holes. They are also easily incorporated into fixture designs.
Estimated delivery: 3-5 Working Days (subject to availability)
Dimensions
| # | Part No | Type | Construction | Width (mm/inch) | Step Height (mm/inch) | Height (mm/inch) | Mounting screw | Price | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 53140 | Metric | Clamp with step | 19.1 | 11.68 | 15.8 | M8 | £73.28 | ||
| 1 | 53150 | Metric | Clamp with step | 28.5 | 12.19 | 15.8 | M12 | £81.26 | ||
| 1 | 53170 | Metric | Clamp with step | 38.1 | 35 | 41.2 | M16 | £191.18 | ||
| 1 | 53145 | Metric | Clamp without step | 19.1 | N/A | 15.8 | M8 | n/a | ||
| 1 | 53155 | Metric | Clamp without step | 28.5 | N/A | 15.8 | M12 | n/a | ||
| 1 | 53172 | Metric | Clamp without step | 38.1 | N/A | 41.2 | M16 | n/a | ||
| 1 | 23140 | Imperial | Clamp with step | 0.75 | 0.46 | 0.62 | 5/16 | £ Price on application | n/a | |
| 1 | 23150 | Imperial | Clamp with step | 1.12 | 0.48 | 0.62 | 1/2 | £ Price on application | n/a | |
| 1 | 23145 | Imperial | Clamp without step | 0.75 | N/A | 0.62 | 5/16 | £ Price on application | n/a | |
| 1 | 23155 | Imperial | Clamp without step | 1.12 | N/A | 0.62 | 1/2 | £ Price on application | n/a | |
| 1 | 23180 | Universal | Stop with step | 19.1 | 11.68 | 19.1 | M8 or 5/16 | £62.88 | ||
| 1 | 23200 | Universal | Stop with step | 28.5 | 12.19 | 22.1 | M12 or 1/2 | £73.28 | ||
| 1 | 23240 | Universal | Stop with step | 38.1 | 35 | 50.8 | M16 or 5/8 | £175.92 | ||
| 1 | 23148 | Universal | Stop without step | 19.1 | N/A | 19.1 | M8 or 5/16 | £ Price on application | n/a | |
| 1 | 23158 | Universal | Stop without step | 28.5 | N/A | 22.1 | M12 or 1/2 | £ Price on application | n/a | |
| 1 | 23178 | Universal | Stop without step | 38.1 | N/A | 50.8 | M16 or 5/8 | £ Price on application | n/a |
