Parallels (SVF-S04)
Key Features
- Easy machining of low workpieces
- High precision and high clamping force
- Wide range of accessories for flexibility
- Maximise your machining envelope
Description

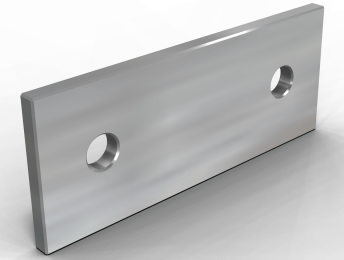

Parallels (SVF-S04) for the SVF range of flexible vices. These parallels will bolt onto the fixed jaws and movable jaws in the SVF range of vices including wedge type and non-wedge type. These parallels are available in a range of heights to suit a range of workpiece stock thicknesses.
Estimated delivery: On Request

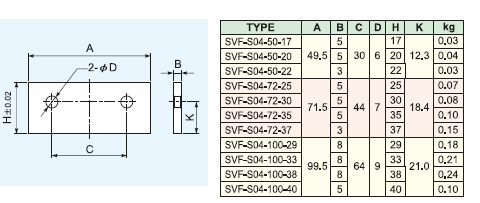

Dimensions
| # | Part No | Height (mm) | Width (mm) | Thickness (mm) | Used on | Drawings | Price | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | SVF-S04-50-17 | 17 | 49.5 | 5 | All SVF 50mm |
|
£10.85 | ||
| 2 | SVF-S04-50-20 | 20 | 49.5 | 5 | All SVF 50mm |
|
£11.44 | ||
| 3 | SVF-S04-50-22 | 22 | 49.5 | 3 | All SVF 50mm |
|
£10.27 | ||
| 4 | SVF-S04-72-25 | 25 | 71.5 | 5 | All SVF 72mm |
|
£13.19 | ||
| 5 | SVF-S04-72-30 | 30 | 71.5 | 5 | All SVF 72mm |
|
£13.65 | ||
| 6 | SVF-S04-72-35 | 35 | 71.5 | 5 | All SVF 72mm |
|
£15.17 | ||
| 7 | SVF-S04-72-37 | 37 | 71.5 | 3 | All SVF 72mm |
|
£16.80 | ||
| 8 | SVF-S04-100-29 | 29 | 99.5 | 8 | All SVF 100mm |
|
£18.09 | ||
| 9 | SVF-S04-100-33 | 33 | 99.5 | 8 | All SVF 100mm |
|
£19.95 | ||
| 10 | SVF-S04-100-38 | 38 | 99.5 | 8 | All SVF 100mm |
|
£21.12 | ||
| 11 | SVF-S04-100-40 | 40 | 99.5 | 5 | All SVF 100mm |
|
£22.64 |
