Reduction Bushes for Thru Coolant

Through Coolant 25mm Sleeves

Key Features

  • High Accuracy Interal and External Diameter
  • Allows for use of through coolant
  • Wide range of Sizes Available

Description

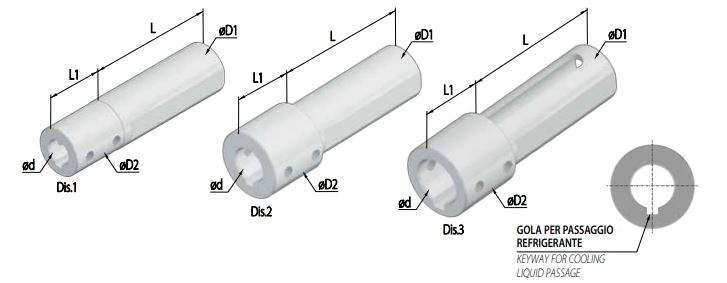

These reduction bushes allow for the fitting of boring bars and drills with a straight shaft. All sizes are manufactured in a range of capacities. These particular bushes allow for the use of coolant through the tooling. The sleeves are hardened and ground for a good fit for both the holder and the shaft.

Estimated delivery: 3-5 Working Days (subject to availability)

Dimensions

# Part No External Diameter (mm)(d) Internal Diameter (mm)(d) Total Length (mm) Price
1 BL25-6 25 6 95 £101.67
1 BL25-8 25 8 95 £101.67
1 BL25-10 25 10 95 £101.67
1 BL25-12 25 12 95 £101.67
1 BL25-16 25 16 95 £101.67
