SVFX-BP
Base plates for indexing tables
Key Features
- Maximise your machining envelope
- High precision and high clamping force
- Wide range of accessories for flexibility
- Multiple operations on multiple workpieces
Description
Base plates for the SVF-X range of indexing tables. These can be used to make the mounting of your indexing table or to create a self contained workholding solution. Please contact us with the specifications of your rotary table, end support and SVF-X indexing table.
Estimated delivery: On Request

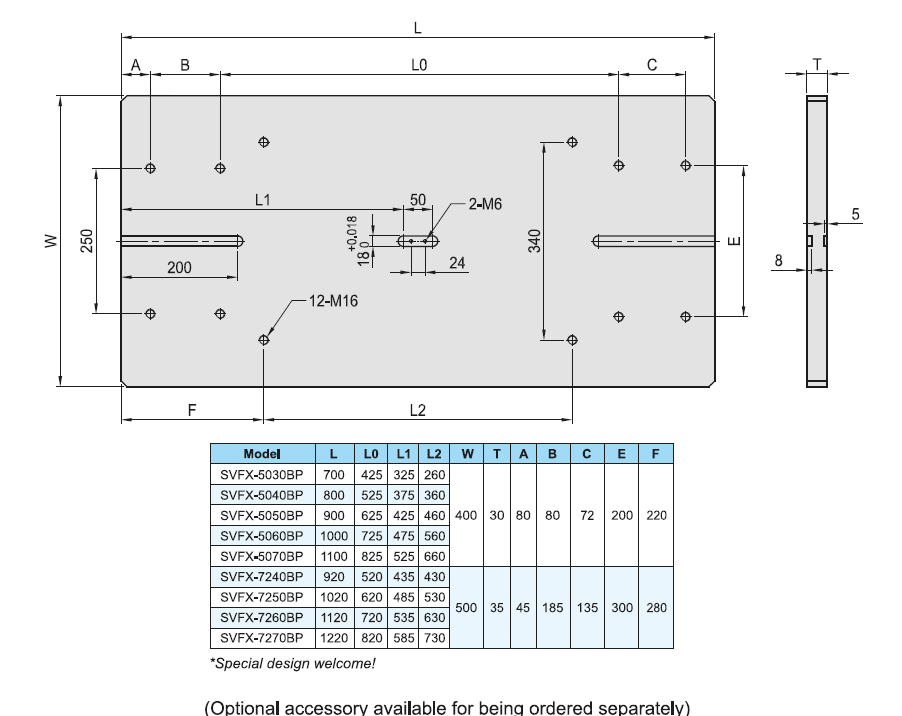

Dimensions
| # | Part No | Length (mm) | Width (mm) | Thickness (mm) | Price | ||
|---|---|---|---|---|---|---|---|
| 1 | SVFX-5030BP | 700 | 400 | 30 | £1,000.07 | ||
| 1 | SVFX-5040BP | 800 | 400 | 30 | £1,081.97 | ||
| 1 | SVFX-5050BP | 900 | 400 | 30 | £1,166.20 | ||
| 1 | SVFX-5060BP | 1000 | 400 | 30 | £1,248.57 | ||
| 1 | SVFX-5070BP | 1100 | 400 | 30 | £1,391.72 | ||
| 1 | SVFX-7240BP | 920 | 500 | 35 | £1,498.59 | ||
| 1 | SVFX-7250BP | 1020 | 500 | 35 | £1,664.72 | ||
| 1 | SVFX-7260BP | 1120 | 500 | 35 | £1,831.32 | ||
| 1 | SVFX-7270BP | 1220 | 500 | 35 | £1,997.45 |
