TP Series

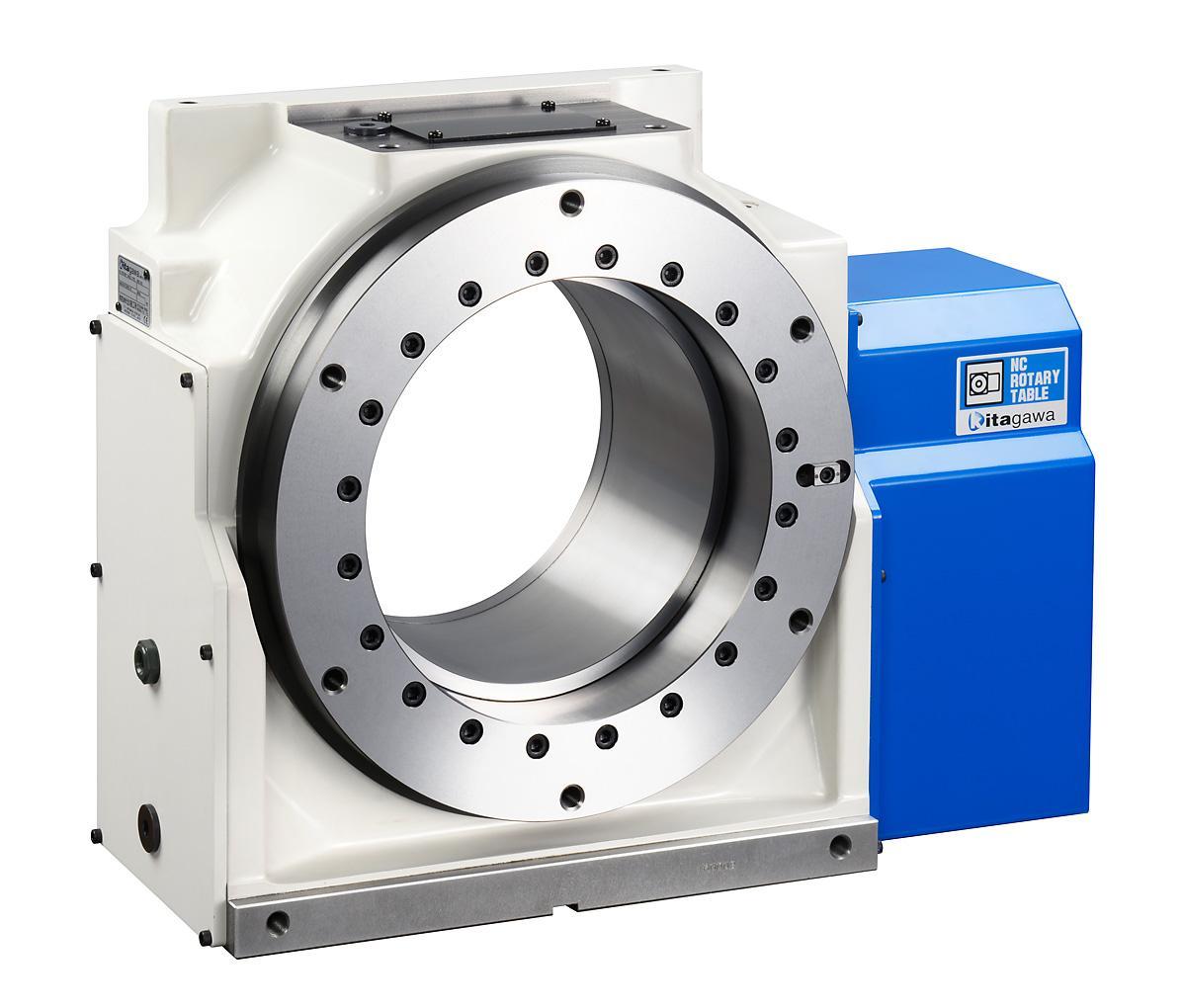

Mega Large Bore 4th Axis Rotary Table

Key Features

  • Large Through Hole
  • High accuracy heavy duty machining

Description

Kitagawa's Mega Thru-Hole rotary table for machining large work pieces such as oil pipes. Available with all motor types in right or left hand configurations to suit a variety of machine models. Price includes Rotary Table, Motor to suit (Fanuc, Mitsubishi or Yaskawa) and cables internal and external(subject to machine model). Please note: your machine must be 4th axis prepared for intergration to machine control. RHV specification comes with an external controller that functions off a spare M-Code; used for machines that do not have 4th axis preperation.

Estimated delivery: On Request

Dimensions

# Part No Table Dia. (mm) Centre Bore (mm) Centre Height (mm) Clamping Torque (Nm) Allowable Inertia (kgm²) Repeatability (sec) Price
1 TP430 430 276 280 4000 5.78 4 £29,412.00
1 TP530 530 345 310 6100 12.29 4 £33,319.00
1 TP430RHV00 430 276 280 4000 5.78 4 £44,551.00
1 TP530RHV00 530 345 310 6100 12.29 4 £48,106.00
