Halter CNC Automation

HALTER CNC AUTOMATION helps aerospace, manufacturing, machinery, and automotive companies achieve
greater efficiency and profits from the CNC machines.

Halter has advanced the field of CNC automation and has developed
well thought out CNC loading robotic systems, which can be easily connected with any CNC machine.

HALTER LoadAssistants provide the flexibility to respond quickly to customer requirements, enabling the profitable running of small and medium-sized batches with quick set-up times.

How does the HALTER LoadAssistant Work?

LoadAssistants can be connected to any new or existing CNC lathe or
milling machine:

  • Complete plug-and-play solution for each brand of CNC machine – new or existing.
  • Set-up in under 5 minutes.
  • No robotics experience required.
  • Move easily from one CNC machine to another.
  • Reliable technology.
  • Intuitive interface designed in-house.

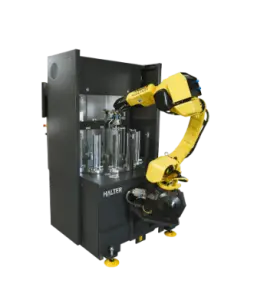

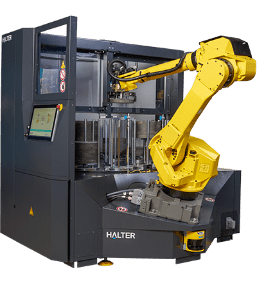

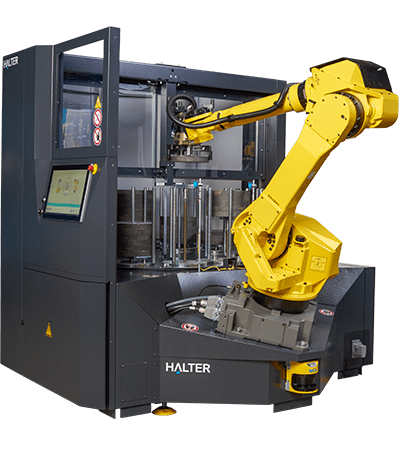

HALTER LoadAssistant for Automatic Loading of CNC Lathe

Both small and medium series can be easily handled by the HALTER LoadAssistant.

Suitable for loading of any workpieces with a diameter of
10-300mm.

LoadAssistant Universal models are also movable to your milling machine.

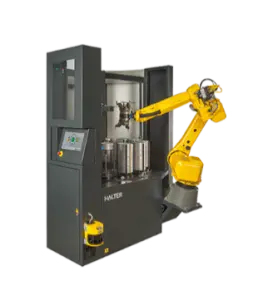

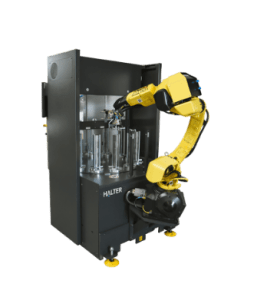

TURNSTACKER for TURNING:

Compact 12

Premium 20/35

Big 35/70

  • High capacity for dia. up to 160mm
  • Smallest footprint
  • Easily moved from one CNC machine to another
  • High capacity for dia. up to 230mm
  • Easily moved from one CNC machine to another
  • High capacity for dia. up to 300mm
  • For loading heavy workpieces
Payload 12kg 25kg/35kg 35kg/70kg
Max workpiece size Ø160mm Ø230mm Ø300mm
Max workpiece length 175mm 175mm 225mm

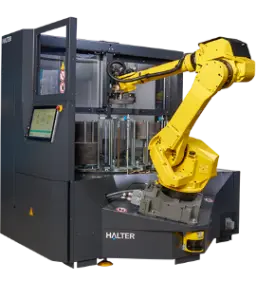

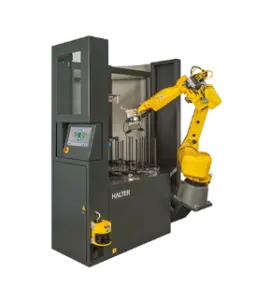

LoadAssistant for Automatic Loading of CNC Mill

The HALTER LoadAssistant can be used by CNC millers to optimise the loading of rectangular workpieces.

Suitable for loading square/rectangular parts up to 400mm.

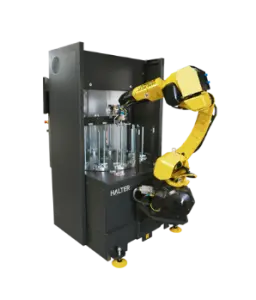

MILLSTACKER for MILLING:

Compact 12

Premium 20/35

Big 35/70

  • High capacity for workpieces up to 200mm
  • Smallest footprint
  • Easily moved from one CNC machine to another
  • High capacity for workpieces up to 300mm
  • Easily moved from one CNC machine to another
  • For loading heavy workpieces
  • High capacity for workpieces up to dia. 400mm
Payload 12kg 25kg/35kg 35kg/70kg
Max workpiece size 125mm x 125mm
50mm x 200mm
180mm x 180mm
80mm x 300mm
250mm x 250mm
100mm x 400mm
Max workpiece length 175mm 175mm 225mm

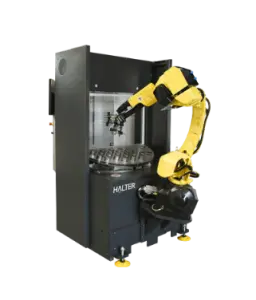

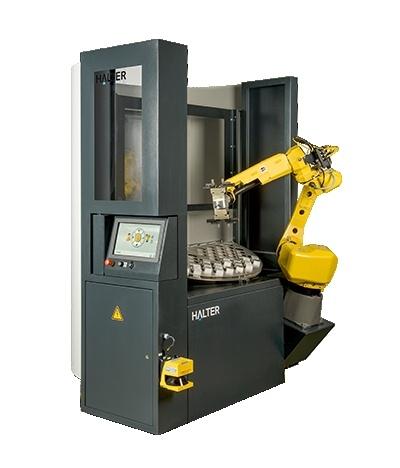

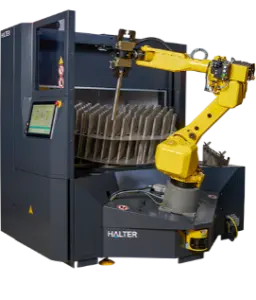

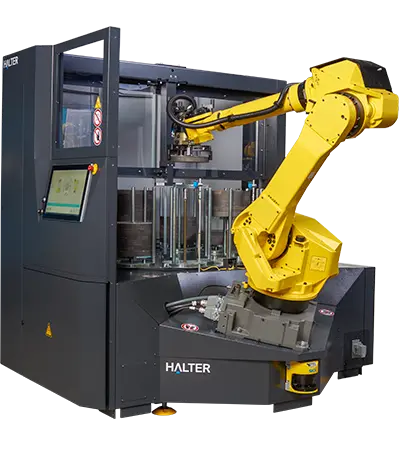

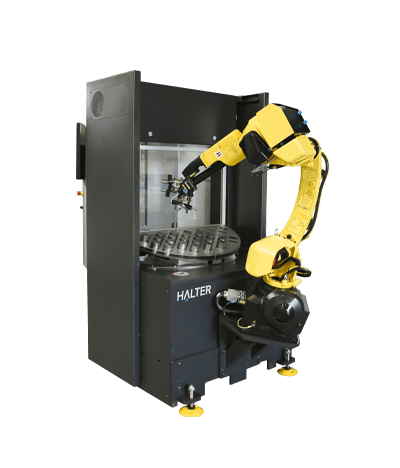

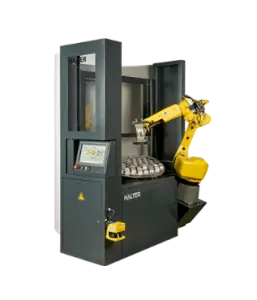

HALTER LoadAssistant Universal

Suitable for both Turning and Milling: this is the most versatile system on the market.

Compact 12

Premium 20/35

Big 35/70

  • Long shafts option
  • Smallest footprint
  • Easily moved from one CNC machine to another
  • Most versatile system on the market
  • Easily moved from one CNC machine to another
  • Set up in less than 5 minutes
  • Long shafts option
  • For loading heavy workpieces
  • High capacity for workpieces with bigger dimensions
Payload 12kg 25kg/35kg 35kg/70kg
Max workpiece size 135mm x 135mm
Ø135mm
270mm x 270mm
Ø270mm
300mm x 300mm
Ø300mm
Max workpiece length 150mm 250mm 300mm
Optional workpiece length (long shafts) 250mm (long shafts) 450mm (long shafts) 800mm

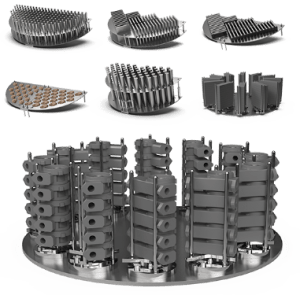

Custom workpiece solutions

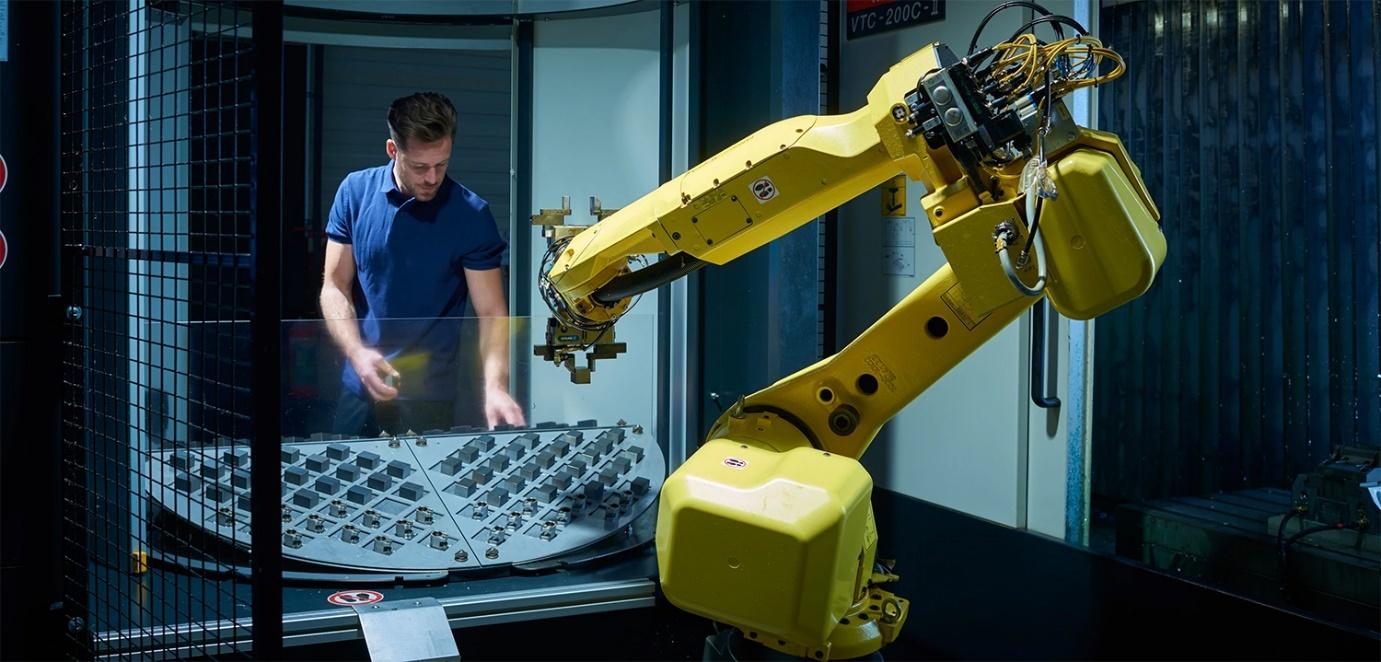

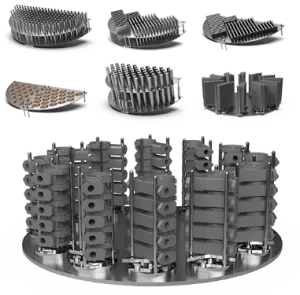

HALTER’s application engineering team offer workpiece-specific solutions. They design grid
plates and special gripper fingers
 for castings or other workpieces which
need special handling.

All custom solutions can be implemented in the user-friendly HALTER SmartControl. This
flexibility of solutions offer by HALTER ensures that you can automate and even greater variety of
workpieces
.

Why Choose a HALTER CNC Robot

  • World market leader with proven technology.
  • Complete plug-and-play solutions.
  • Fast set-up time and great user-experience with HALTER Smart Control.
  • Dedicated application and consulting engineers for customized requests.
  • Excellent local and remote support.
  • Short pay-back period on all machines.



Interested in boosting the productivity of your CNC machine?

Speak to our expert team today to see if HALTER automation is right for you.
