In today’s machining environment, performance, precision, and uptime are everything. While much of the focus is placed on spindles, tooling, and cutting strategies, one critical component is often overlooked — the hydraulic cylinder.
At 1st MTA, we believe that understanding, selecting, and maintaining the right hydraulic cylinder is key to unlocking the full potential of your workholding system. In this guide, we bring together expert insight, product knowledge, and practical maintenance advice to help you get the very best from your equipment.

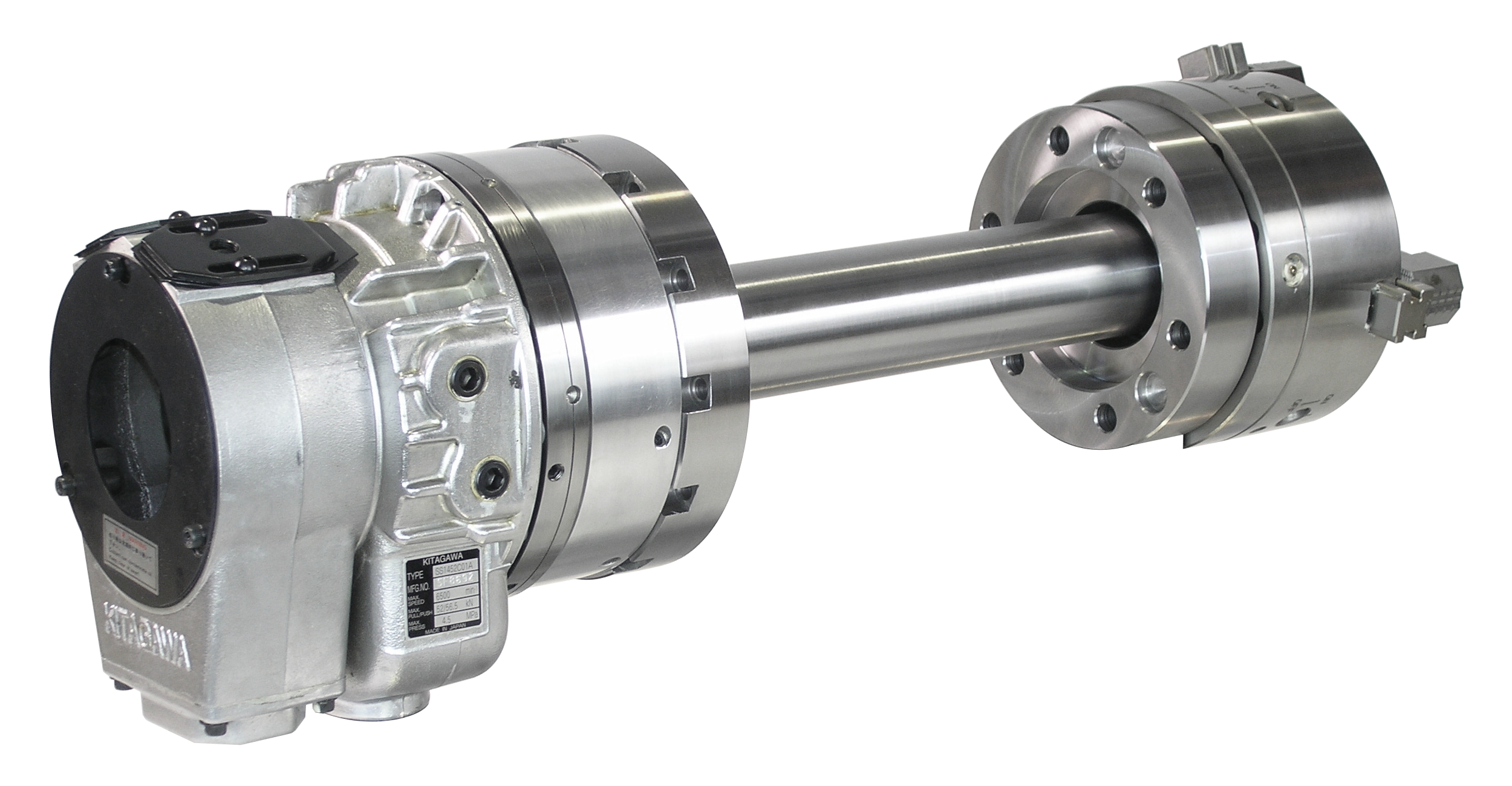

Rotating hydraulic cylinders are mounted at the rear of a machine spindle. Their role is simple but essential:
👉 To provide the axial force required to actuate the drawtube or drawbar, ensuring your chuck clamps securely and consistently.
Without reliable force from the cylinder, even the highest-quality chuck cannot perform to its full capability.
The result of a well-matched, high-quality cylinder?
✔️ Smoother operation
✔️ Greater machining accuracy
✔️ Improved overall efficiency
At 1st MTA, we supply high-performance solutions from Kitagawa, a global leader in workholding technology.
Our hydraulic cylinders are engineered to meet the demands of modern machining environments, offering:
Reliable Axial Force
Consistent and dependable force delivery ensures smooth and precise chuck operation — critical for maintaining accuracy across production runs.
Manufactured from robust materials, these cylinders are built to perform in demanding conditions while maintaining long-term reliability.
Seamless Integration
Designed for straightforward mounting to the rear of your machine spindle, our cylinders integrate easily into existing setups without unnecessary complexity.
Each model is optimised for specific chuck sizes but also designed with cross-compatibility in mind.
💡 This means if your chuck changes, your cylinder may not need to — reducing downtime, lowering costs, and increasing flexibility.
Our experienced team, including specialists such as Roy Wyatt, is on hand to help you select the right solution for your application.
Selecting the correct cylinder type is essential for maximising performance.
Closed Centre Cylinders
Designed for precision in compact environments, closed centre cylinders are ideal when space is limited and accuracy is critical.
Key benefits:
Open Centre Cylinders
Open centre cylinders offer greater versatility, particularly for larger or more complex workpieces.
Key benefits:
Inside the Cylinder: Inspection, Common Issues, and Solutions
Even the highest-quality hydraulic cylinder requires regular inspection and maintenance to sustain performance.

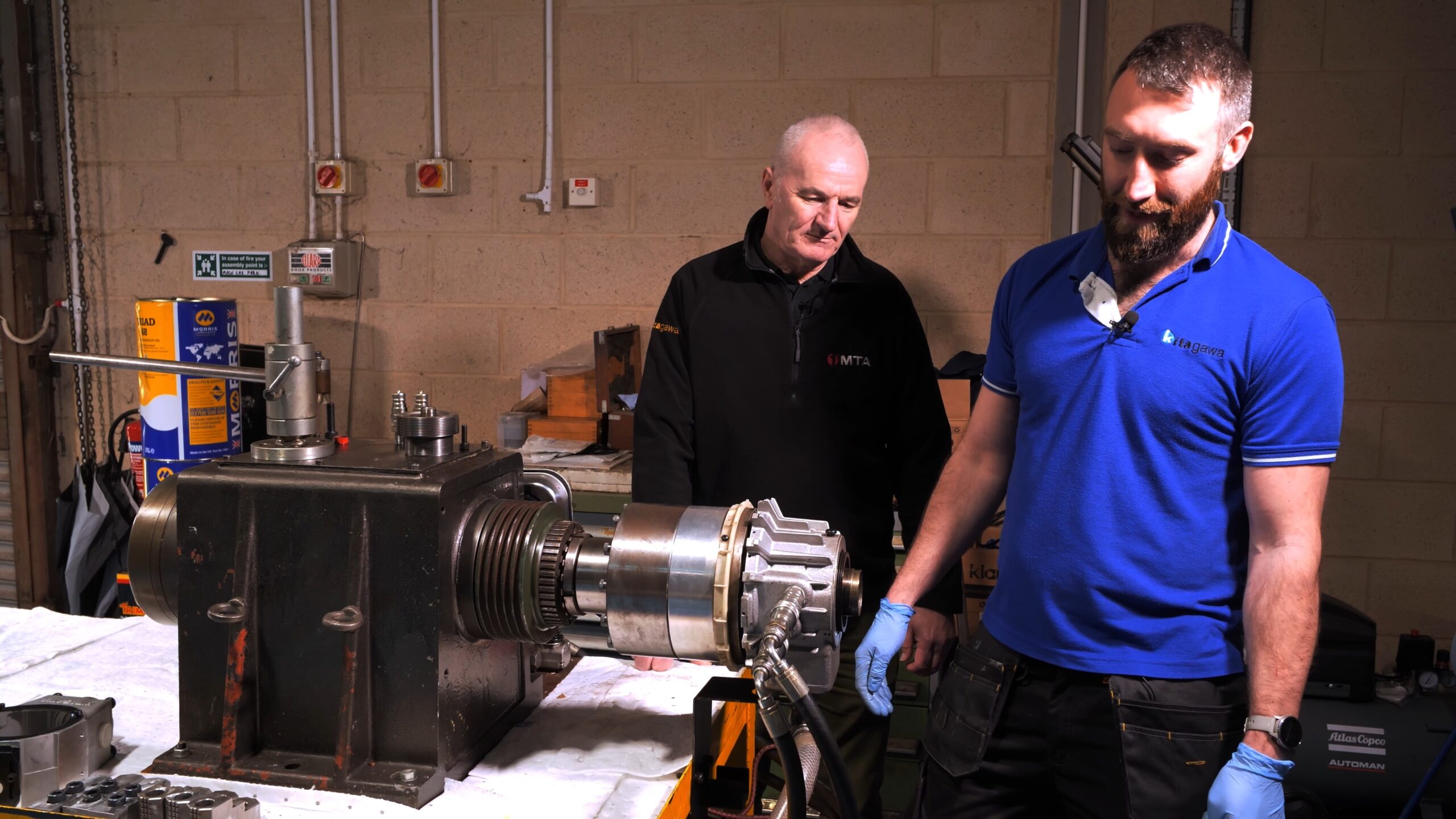

Working alongside Kitagawa experts like Will Horne, we regularly assess cylinders and identify issues before they lead to failure.
Common Issues Found During Inspection
🔍 Seal Wear
Over time, seals degrade, leading to oil leaks and reduced hydraulic efficiency.
🔍 Internal Wear
Component wear can impact performance and consistency of force.
🔍 Contamination
Ingress of coolant or debris can compromise lubrication and accelerate wear.
Why Early Detection Matters
What starts as a minor issue can quickly escalate into:
❌ Loss of clamping force
❌ Reduced machining accuracy
❌ Coolant contamination
❌ Unexpected downtime
Practical Solutions:

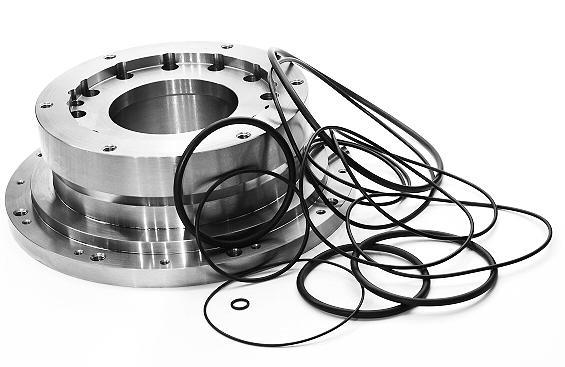

🛠️ Seal Replacement
We supply hydraulic seal kits to restore performance and prevent further damage.
🛠️ Professional Inspection & Repair
Our dedicated inspection and repair service ensures issues are identified early and resolved effectively.
🛠️ Preventive Maintenance
Routine checks and servicing significantly extend cylinder life and maintain optimal performance.
A simple oil leak might not seem urgent — but left unchecked, it can lead to costly repairs and lost production time.
💡 Proactive maintenance delivers:
At 1st MTA, we go beyond supplying components.
By combining premium products from Kitagawa with real-world engineering expertise from professionals like Roy Wyatt, we provide a complete support system for your machining operations.
What You Can Expect:
✔️ Expert guidance in selecting the right cylinder
✔️ Flexible, future-proof solutions
✔️ Professional inspection and repair services
✔️ Ongoing technical support
Hydraulic cylinders play a vital role in ensuring your machining processes run smoothly, accurately, and efficiently.
By choosing the right solution — and maintaining it properly — you can:
🔧 Improve performance
📉 Reduce downtime
📈 Increase productivity
Whether you’re upgrading your setup, troubleshooting an issue, or planning preventative maintenance, 1st MTA is here to help.
👉 Get in touch with our team today to discuss how we can support your machining performance — now and into the future.
