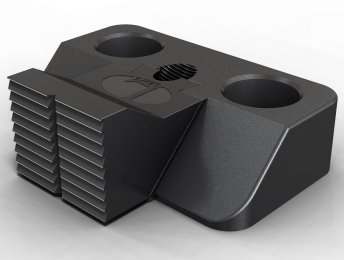

Adjustable Side Clamp

Mounted to 40mm or 50mm Gridded Plate

Key Features

  • Available Ground or Serrated
  • Clamps and Pulls Down Component

Description

The actuation not only clamps the components but also pulls it down. The jaws are available in smooth or serrated. Parts CP15 and CP16 work as stop for this vise.

Estimated delivery: 5-7 Working Days (subject to availability)

Dimensions

# Part No Ground or Serrated Height of Jaw (mm) Width of Jaw (mm) Total width (mm) 2 Mount holes (mm) Hole pitch (mm) Price
1 CP38-0865-G Ground 19.5 25 65 8 40 £63.70
1 CP38-1285-G Ground 29 35 85 12 50 £81.55
1 CP38-16100-G Ground 39 40 100 16 50 £103.72
1 CP38-0865-S Serrated 19.5 25 65 8 40 £63.70
1 CP38-1285-S Serrated 29 35 85 12 50 £81.55
1 CP38-16100-S Serrated 39 40 100 16 50 £103.72
