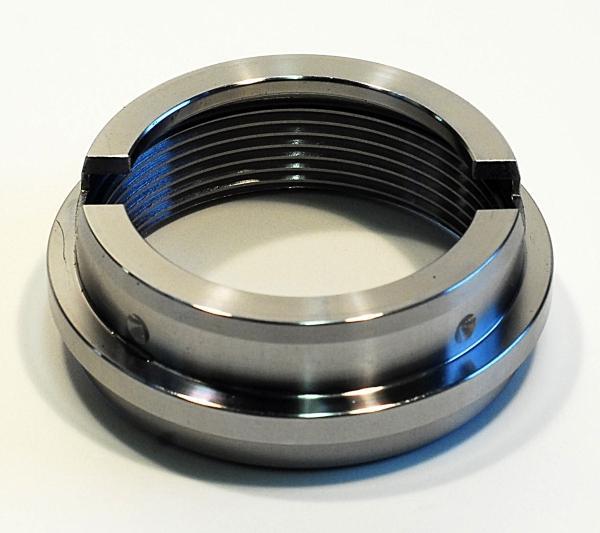

Blank Draw Nuts

Machinable Connector for BT200 Series Chucks

Key Features

  • Blank connector to be machined to suit specific drawtube threads
  • Other lengths of connector are available
  • We can supply drawnuts with the correct thread to suit your machine

Description

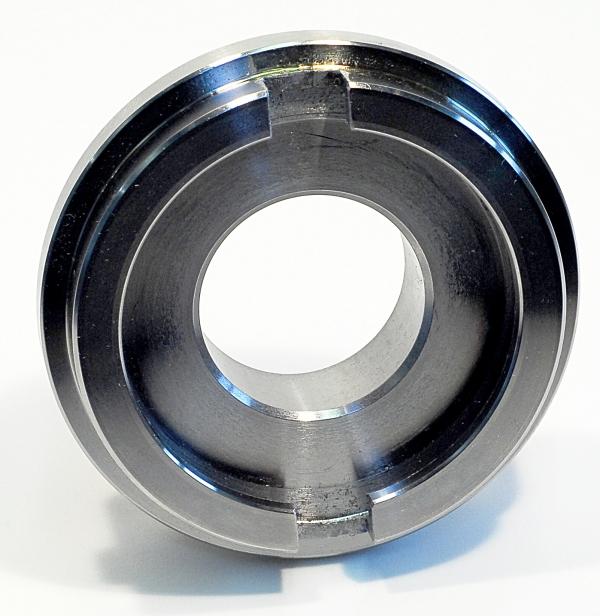

Used for mounting a BT200 chuck onto a drawtube, this connector is supplied blank to be machined out to the required thread. **Some machine setups may require the use of extended connectors as well as a drawnut**

Estimated delivery: Next Day (subject to availability)

Dimensions

# Part No Chuck to Suit Max. Thread Size Price
1 DN-BT204 BT204 M32x1.5 £73.00
1 DN-BT205 BT205 M40X1.5 n/a
1 DN-BT206 BT206 M55x2.0 £73.00
1 DN-BT208 BT208 M60x2.0 £83.00
1 DN-BT210 BT210 M85x2.0 £94.00
