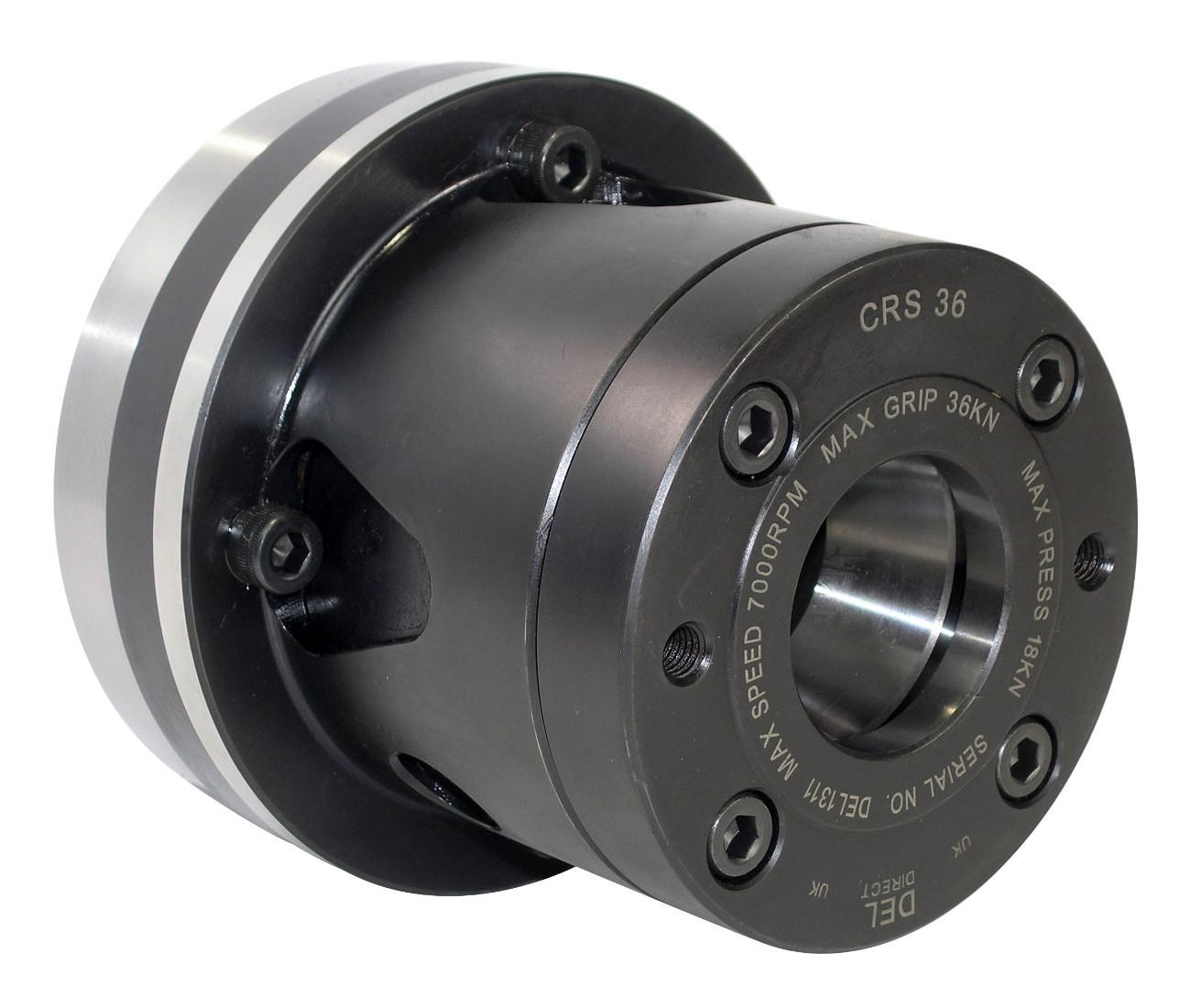

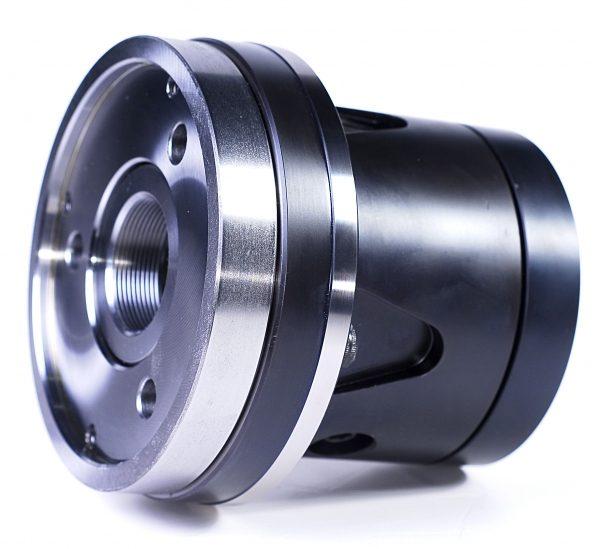

Bolt-On Cap Collet Chuck

36mm Capacity for 1st & 2nd Op

Key Features

  • Can be used for First and Second Operation
  • Deadlength Actuation Eleminates part movement when Clamping
  • Case hardened, optimising the rigidity, strength and durability.
  • Varibore Collets have a large range allowing for easy holding of Rough Bar

Description

Klamp CRS36 collet chucks are suitable for spring and varibore collets increasing its flexibility. Varibore collets allow rough, unfinished bar to be machined in the first operation and spring collets can be used for high accuracy in the second operation.

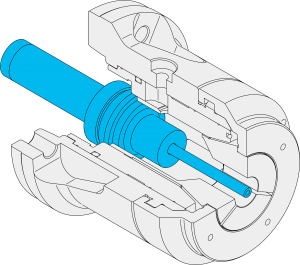

Workpiece remains in a fixed position during actuation allowing for precise z-axis positioning. A tapered sleeve is pushed forward, compressing the collet and gripping the workpiece.

Estimated delivery: Next Day (subject to availability)

Dimensions

# Part No Spindle Mount Capacity (mm) Length (mm) Varibore Price
1 CRS36 115mm 36 125 D671 £923.00
