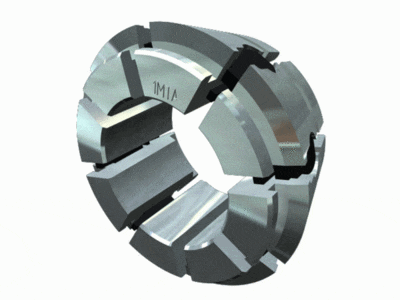

D673 Varibore Round Collet

Collet for 1st Operation Work

Key Features

  • 2mm Range per Collets
  • Sizes Up To 42mm Capacity
  • Spiral Serration as Standard, Other Finishes Available
  • Special Profiles Available

Description

D673 Varibore round collets are to suit 42mm capacity collet chucks. Also known as M673, these collets have a 2mm range. Supplied spiral serration as standard we can supply with alternate finishes and in special profiles. D673 suit the following collet chucks: Klamp CRL42 Klamp QCRL42 Crawford CDC42 Crawford CDC-42-S Crawford QC-42

Estimated delivery: Next Day (subject to availability)

Dimensions

# Part No Size (mm) Bore Price
1 D673-RP06 4-6mm Smooth £117.65
1 D673-RP08 6-8mm Smooth £84.26
1 D673-RP10 8-10mm Smooth £84.26
1 D673-RP12 10-12mm Smooth £84.26
1 D673-R14 12-14mm Spiral Serration £84.26
1 D673-R16 14-16mm Spiral Serration £84.26
1 D673-R18 16-18mm Spiral Serration £84.26
1 D673-R20 18-20mm Spiral Serration £84.26
1 D673-R22 20-22mm Spiral Serration £84.26
1 D673-R24 22-24mm Spiral Serration £84.26
1 D673-R26 24-26mm Spiral Serration £84.26
1 D673-R28 26-28mm Spiral Serration £84.26
1 D673-R30 28-30mm Spiral Serration £84.26
1 D673-R32 30-32mm Spiral Serration £84.26
1 D673-R34 32-34mm Spiral Serration £84.26
1 D673-R36 34-36mm Spiral Serration £84.26
1 D673-R38 36-38mm Spiral Serration £84.26
1 D673-R40 38-40mm Spiral Serration £84.26
1 D673-R42 40-42mm Spiral Serration £84.26
